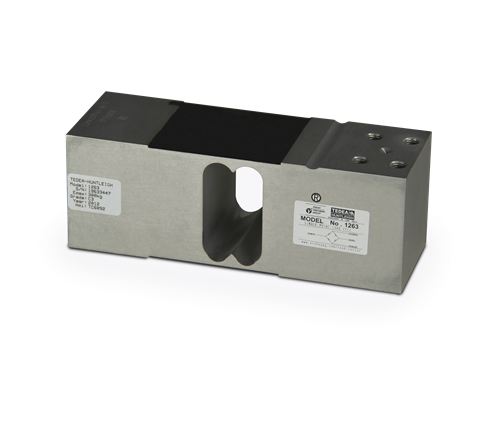

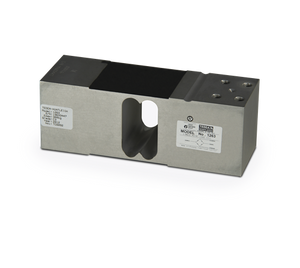

Constructed of high-quality aluminum and offers high immunity to side loads, making it suitable for a wide array of applications like bench scales and process weighing. Its special humidity-resistant protective coating helps ensure long-term stability over the entire compensated range. OIML-approved capacities range from 50 to 635 kg. Complete with 1.5 m of load cell cable.

Full Scale Output:
2 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
415 (± 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% of rated output

Rated Excitation:
10 VAC (15 V maximum)

Insulation Resistance:
2,000 megohm

Cable Length:
1.5 m

Cable Diameter:
5 mm
PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal

Max Platform Size:
610 × 610 mm
