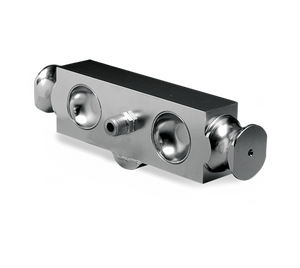

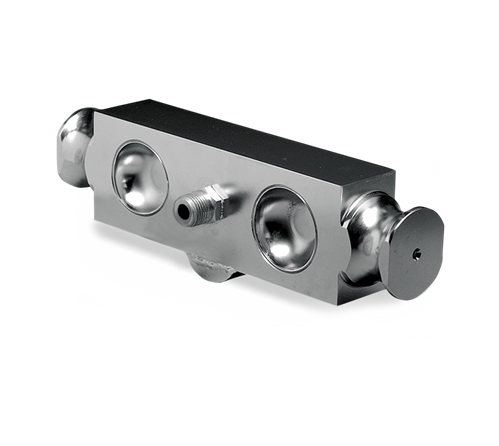

This model is an upgraded version of the VPG Sensortronics 65040A and is offered in stainless steel with a welded seal. The center-supported, double-ended beam design is compatible with Unilink/Translink™ mounts. Ideal for applications where harsh chemicals and washdown conditions exist. Available in capacities ranging from 25,000 to 75,000 lb, and is provided with 35 ft of load cell cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft

Cable Diameter:
25,000 lb: 0.200 in
40,000 to 75,000 lb: 0.301 in
Polyurethane jacket

Cable Coloring:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
