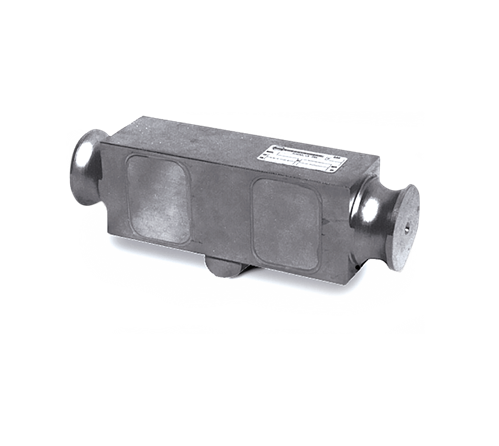

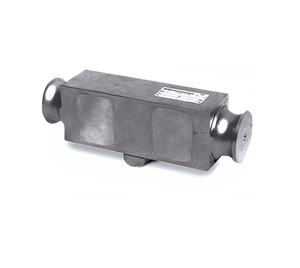

Nickel-plated and environmentally protected with stainless steel side plates. Designed for center mounting and double link loading. Capacities range from 25,000 to 125,000 lb. Complete with 35 ft of load cell cable.

Full Scale Output:
3.0mV/V

Output Resistance:
686 to 714 ohm

Input Resistance:
699 to 707 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
35 ft

Cable Diameter:
25,000 lb: 0.200 in
50,000 to 125,000 lb: 0.305 in
Polyurethane jacket

Cable Coloring:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
