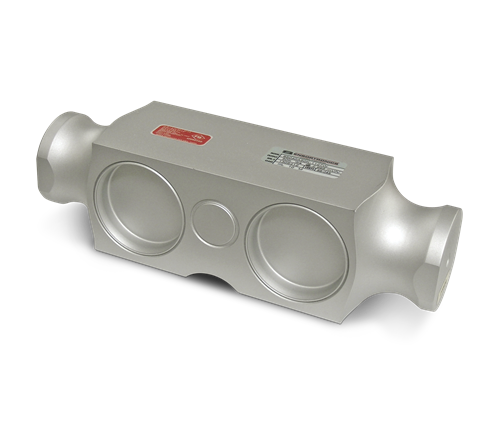

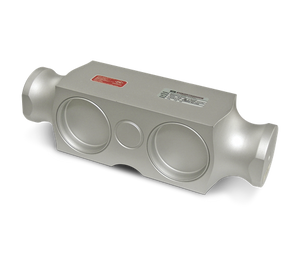

This center-loaded, double-link load cell is made of alloy steel. It is a replacement for the RL75223 or VPG Revere 5223 load cell and is NTEP Certified. It comes with 40 ft of cable and is available in 50,000 and 65,000 lb capacities.

Full Scale Output:
3.0 mV/V

Output Resistance:
686 to 714 ohm

Input Resistance:
699 to 707 ohm

Material/Finish:
High-alloy steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
50,000 lb: 0.018 in
65,000 lb: 0.022 in

Cable Length:
40 ft

Cable Diameter:
0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
