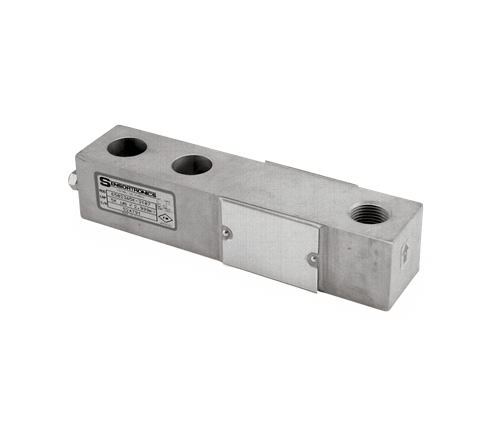

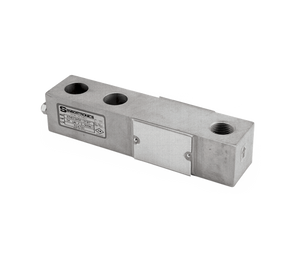

The 65023A-5107-10 is a replacement load cell for the previously offered 65023-5141 VPG Sensortronics load cell. This model was previously specific to Pennsylvania Scale and features 10 ft of load cell cable. Available in 1,000 and 2,500 lb capacities.

Full Scale Output:
3.0 mV/V
mV/V/ohm calibrated

Output Resistance:
349 to 355 ohm

Input Resistance:
343 to 357 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 lb: 0.013 in
2,500 lb: 0.015 in

Cable Length:
10 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White  –Signal
