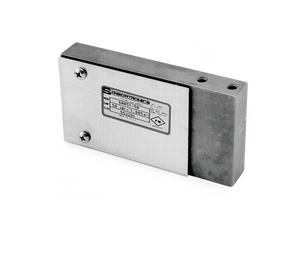

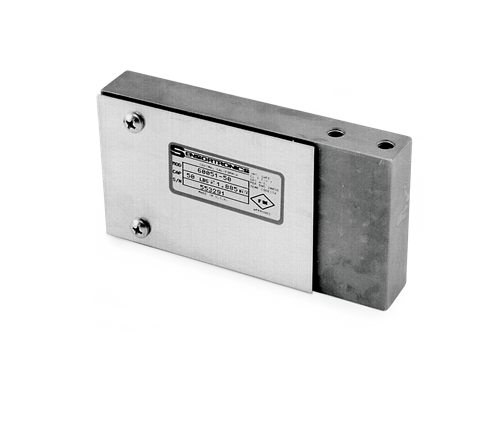

Designed as a replacement for the NCI® Mark III in hostile environments. Stainless steel, moisture-resistant single point load cell. Complete with 10 ft of load cell cable. Load cells with 10 to 25 lb capacities may be used with a base size of 8 × 8 in. Load cells with 50 to 200 lb capacities may be used with a base size of 12 × 12 in.

Full Scale Output:
2.0 mV/V

Output Resistance:
349 to 355 ohm

Input Resistance:
380 to 450 ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
10 to 15 lb: 0.0014 in
25 to 200 lb: 0.0010 in

Cable Length:
10 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
