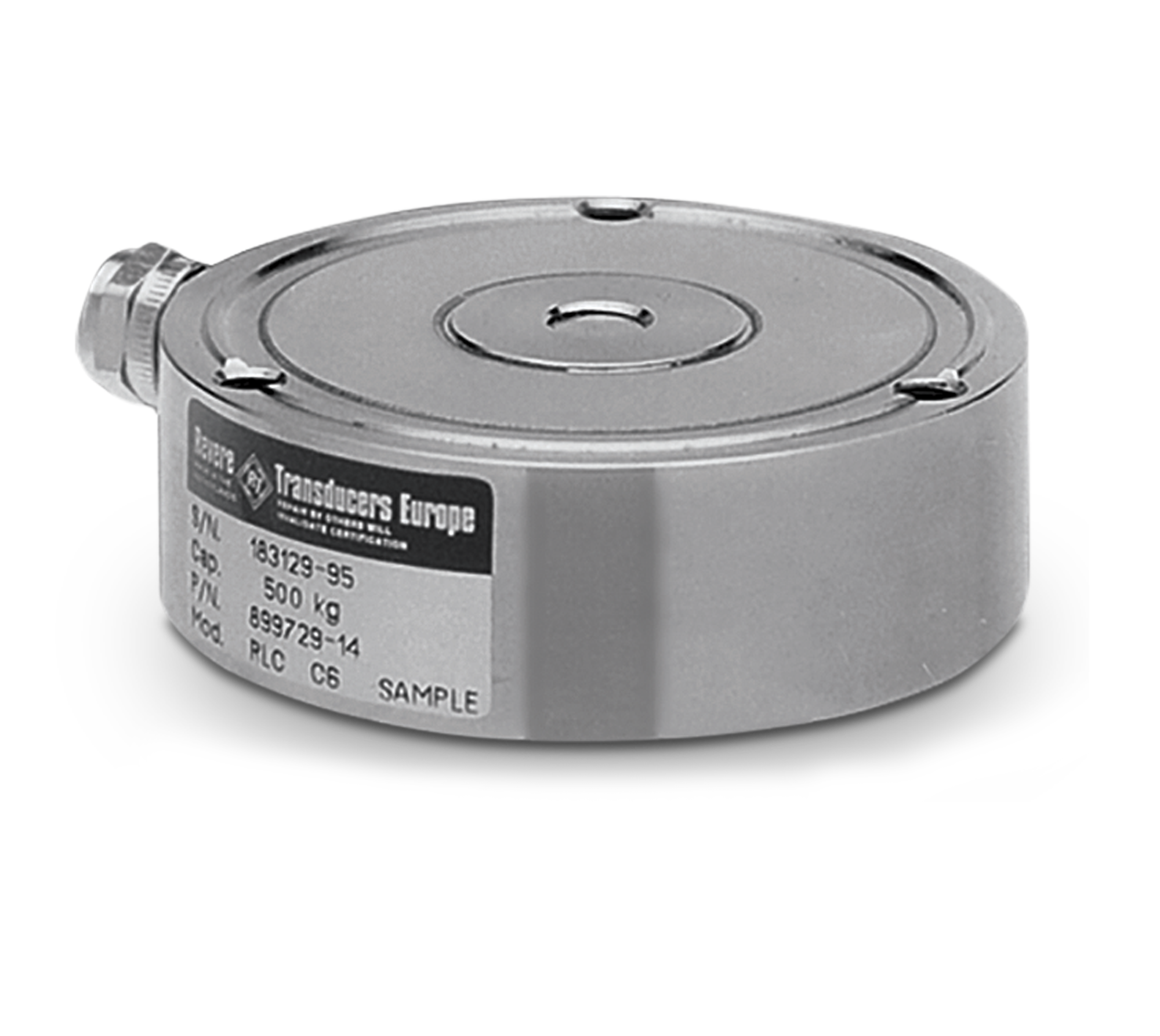

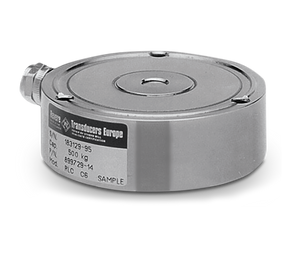

A low-profile, high-performance ring torsion-type load cell in stainless steel. This product is suitable for small and medium platform scales, as well as process weighing. Capacities range from 0.25 to 10 t.

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (± 25) ohm

Input Resistance:
1,110 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
5 m

Cable Color Code:
Pink +Excitation
Grey –Excitation
Brown +Signal
White –Signal
