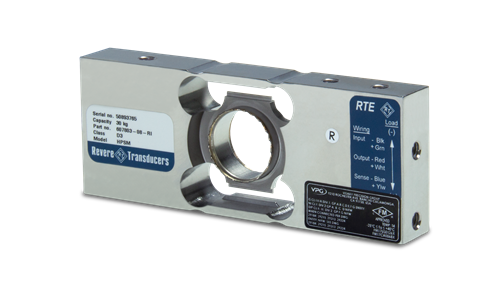

Low-profile single point load cell with metric envelope designed for bench scale and checkweigher applications in caustic or acidic environments. Insensitive to off-center loading. It withstands the most severe washdowns. Capacities range from 6 to 30 kg. Includes 20 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
350 (± 3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
