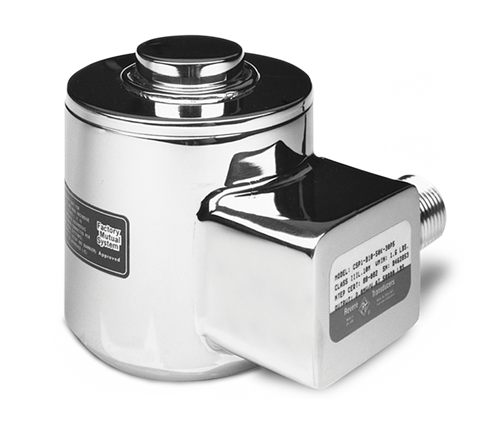

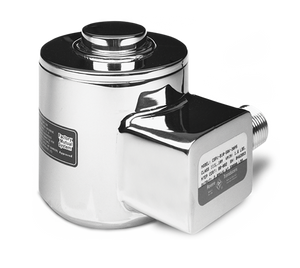

This welded-seal, canister load cell is designed for compression service only. High-capacity transducers are built for reliability, durability and extreme precision. Compression Precision (CP) cells are recommended for most industrial applications. Single bridge available for 10,000 to 500,000 lb capacities. Dual bridges available upon request. Complete with 30 ft of load cell cable.

Full Scale Output:
1.75 mV/V

Output Resistance:
480 (± 4.8) ohm

Input Resistance:
450 (± 4.5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.15% full scale

Non-repeatability:
0.03% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
10,000 to 50,000 lb: 0.003 in
100,000 to 300,000 lb: 0.006 in
500,000 lb: 0.009 in

Cable Length:
30 ft

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
