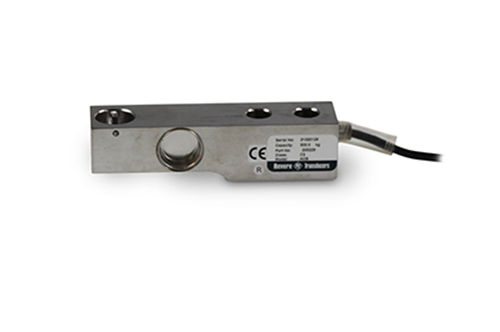

Hermetically sealed, stainless steel single-ended shear beam load cell utilizing a 1,000 ohm bridge.  Capacities range from 500 to 5,000 kg.

Full Scale Output:
2mV/V

Output Resistance:
1,000 (±10) ohm

Input Resistance:
1,000 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 12 VDC

Combined Error:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
500 to 1,000 kg: 3 m
2,000 to 5,000 kg: 6 m

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow +Sense
Blue –Sense
