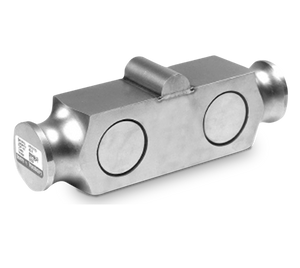

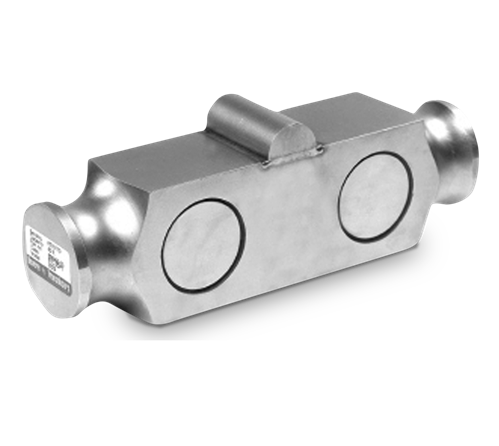

High-performance end-loaded, center-supported double-ended beam designed for low-profile truck scales in harsh environments. Parallel link loading provides free movement in all horizontal directions with virtually no friction. Available in 50,000 and 60,000 lb capacities with 30 ft of load cell cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±7) ohm

Input Resistance:
700 (±7) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Non-repeatability:
0.01% full scale

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.295 in polyurethane jacket

Cable Color Code:
Red –Excitation
Black –Excitation
Green +Signal
White –Signal
