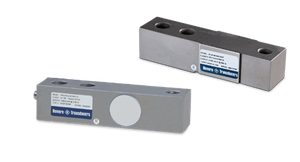

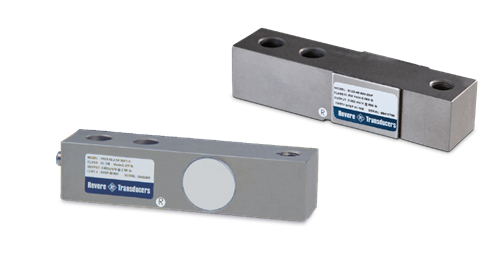

Single-ended stainless steel beam designed for low-profile scales and process weighing in both Legal for Trade and non-Legal for Trade applications. Capacities range from 250 to 20,000 lb. Complete with 20 ft of load cell cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
0 °F to 150 °F (-18 °C to 65 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
