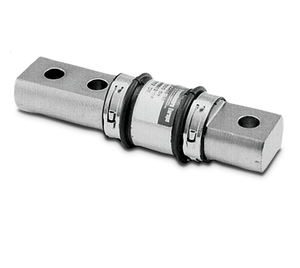

Its high accuracy, low profile and redundant sealing make the 5102 well suited for use in small and medium platform scales, and process applications in harsh environments. Capacities range from 100 to 2,500 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed with neoprene sleeve, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
100 to 200 lb: 0.020 in
500 to 2,500 lb: 0.026 in

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
