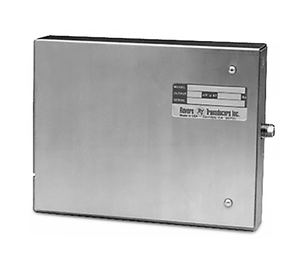

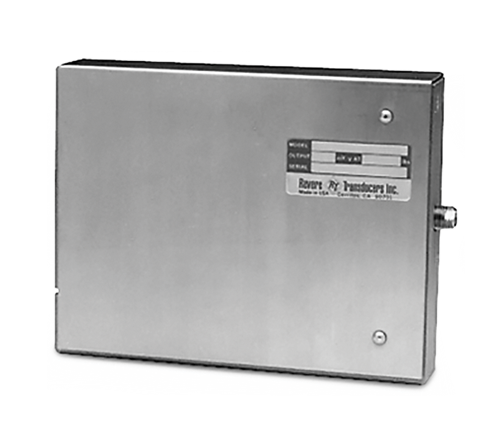

High-performance single point cell designed for high-precision counter scales. Resistant to moisture and severe impact loading. Capacities range from 2 to 250 lb. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3.5) ohm

Input Resistance:
390 (± 15) ohm

Material/Finish:
Alloy steel with stainless steel cover

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC nominal (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
2 to 20 lb: 0.06 in
50 to 250 lb: 0.04 in

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
