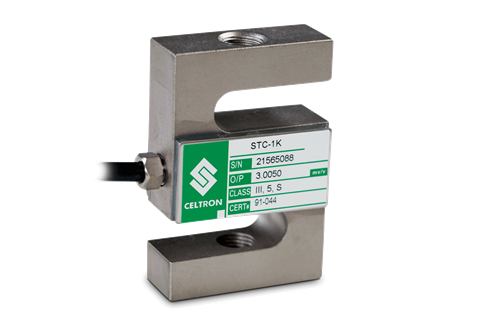

Nickel-plated, alloy steel construction. Suited for batching, filling and hopper/tank weighing applications. Capacities range from 250 to 40,000 lb. Comes with 20 ft of load cell cable, and 30 ft of cable for 3,000, 5,000 and 20,000 lb capacities.

Full Scale Output:
3.0 mV/V nominal

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Combined Error:
0.02% full scale

Rated Excitation:
5 to 15 VDC

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
250 to 20,000 lb: 0.200 in
40,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
