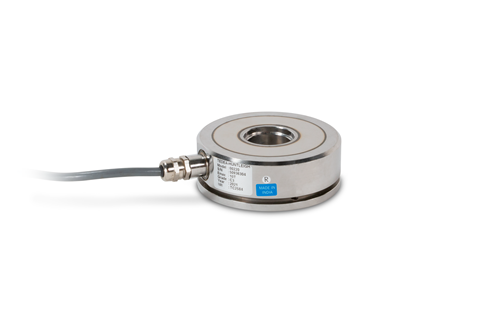

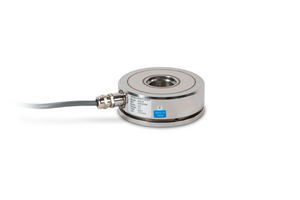

Bending ring load cell with low profile design ideal for high-capacity weighing applications, including weighbridges, tanks, silos, high-capacity platform scales and force measurement. OMIL-approved capacities range from 5,000 to 30,000 kg.

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (±20) ohm

Input Resistance:
1,065 (±60) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.020% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
< 0.5 mm at full scale

Cable Length:
5,000 kg: 5 m
10,000 to 20,000 kg: 10 m
30,000 kg: 20 m

Cable Diameter:
5.6 mm
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Gray –Sense
