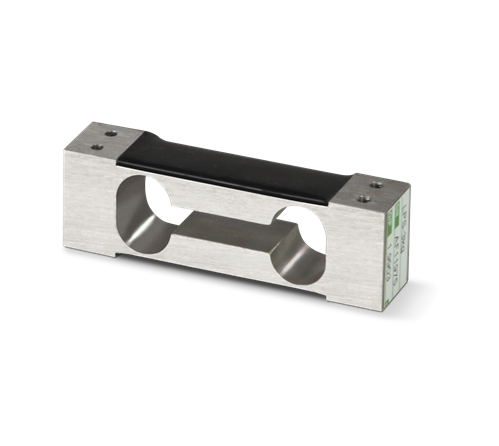

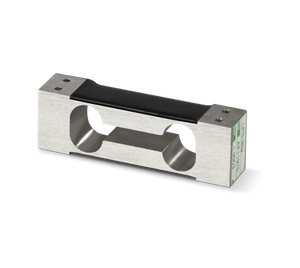

Most suitable for mass production operations. Constructed of anodized aluminum and fully potted IP65 levels, providing excellent protection against moisture ingression. Available in NTEP capacities ranging from 3 to 20 kg, and non-NTEP capacities ranging from 10 to 100 kg. Comes with 16.5 in of cable for 3 to 35 kg capacity, 14 in for 60 kg capacity and 6.5 ft for 100 kg capacity.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.25% full scale

Non-repeatability:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
3 to 35 kg: 1.5 m
60 kg: 6.5 m
100 kg: 6.5 m

Cable Diameter:
4.0 mm
PVC jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
