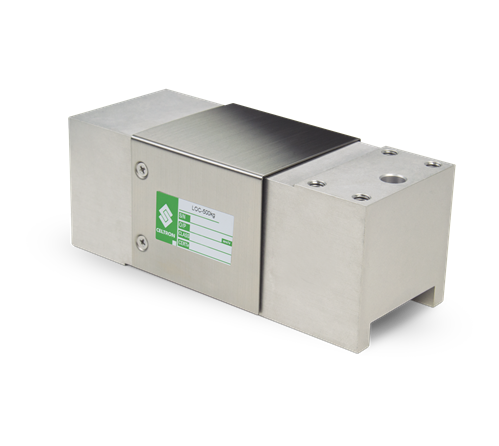

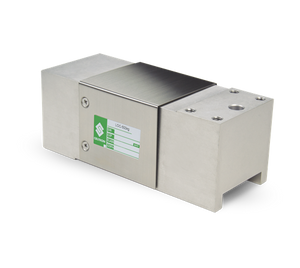

Low-profile, off-center loading load cell. Designed for direct mounting of a weighing platform and hanging scales. Long-term stability and durability are maintained. Capacities range from 100 to 500 kg. Complete with 3 m of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
410 (± 10) ohm

Material/Finish:
Aluminum

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.025% full scale

Non-repeatability:
0.02%

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Red  +Excitation
Black –Excitation
Green  +Signal
White –Signal

Max Platform Size:
24 × 24 in
