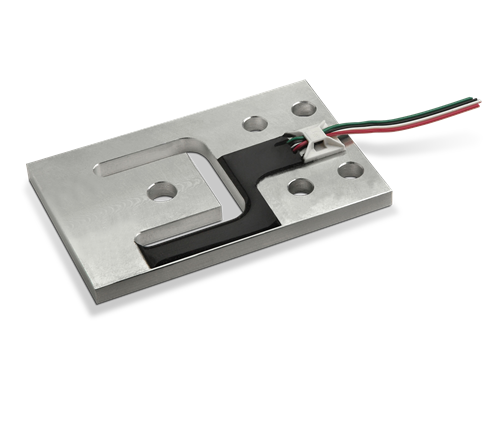

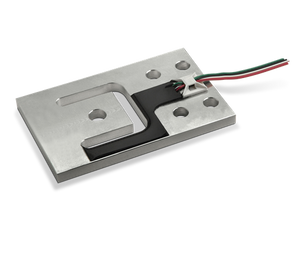

Low-profile planar beam designed for a range of capacities and direct mounting in platform scales. Capacities range from 7.5 to 150 kg. Complete with 1.5 m of flat ribbon PVC cable.

Full Scale Output:
1.0 mV/V

Output Resistance:
1,000 (±10) ohm

Input Resistance:
1,160 (± 15) ohm

Material/Finish:
Aluminum

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohm

Cable Length:
1.5 m flat ribbon type,
PVC

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
