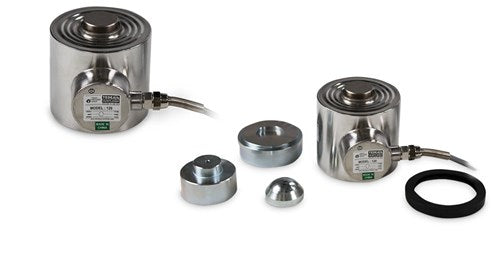

Stainless steel, welded-seal compression canister offered in capacities from 20,000 to 50,000 kg. Includes load cup and load pin.

Full Scale Output:
1.5 mV/V

Output Resistance:
605 (±5) ohm

Input Resistance:
670 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
-0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% of applied load

Insulation Resistance:
2,000 megohm

Cable Length:
15 m

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense
