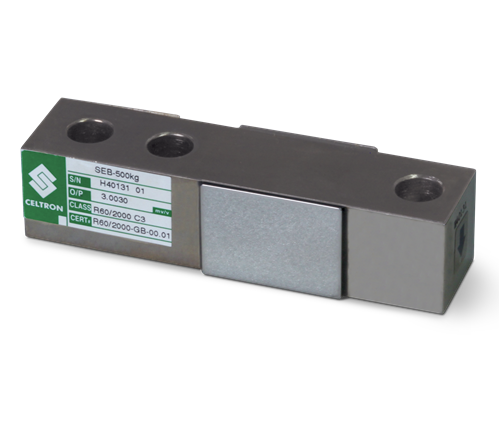

Designed for various scale and process weighing applications, this single-ended beam is manufactured from high-alloy steel and nickel-plated to ensure an IP67 rating. OIML approved and metric envelope capacities range from 500 kg to 2.5 t. Comes with 6 m of standard load cell cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.025%

Insulation Resistance:
5,000 megohm

Cable Length:
6 m

Cable Diameter:
5 mm
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
