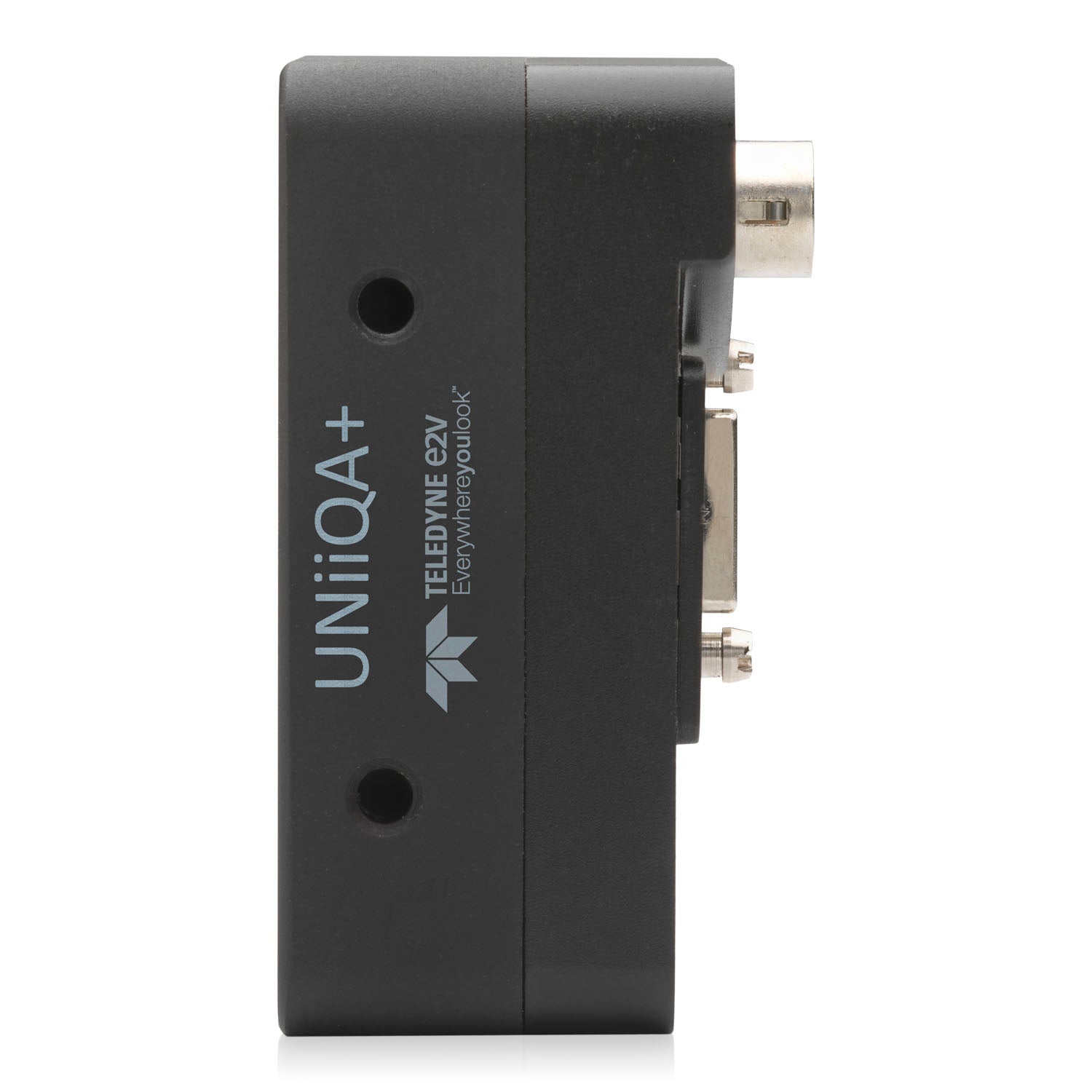

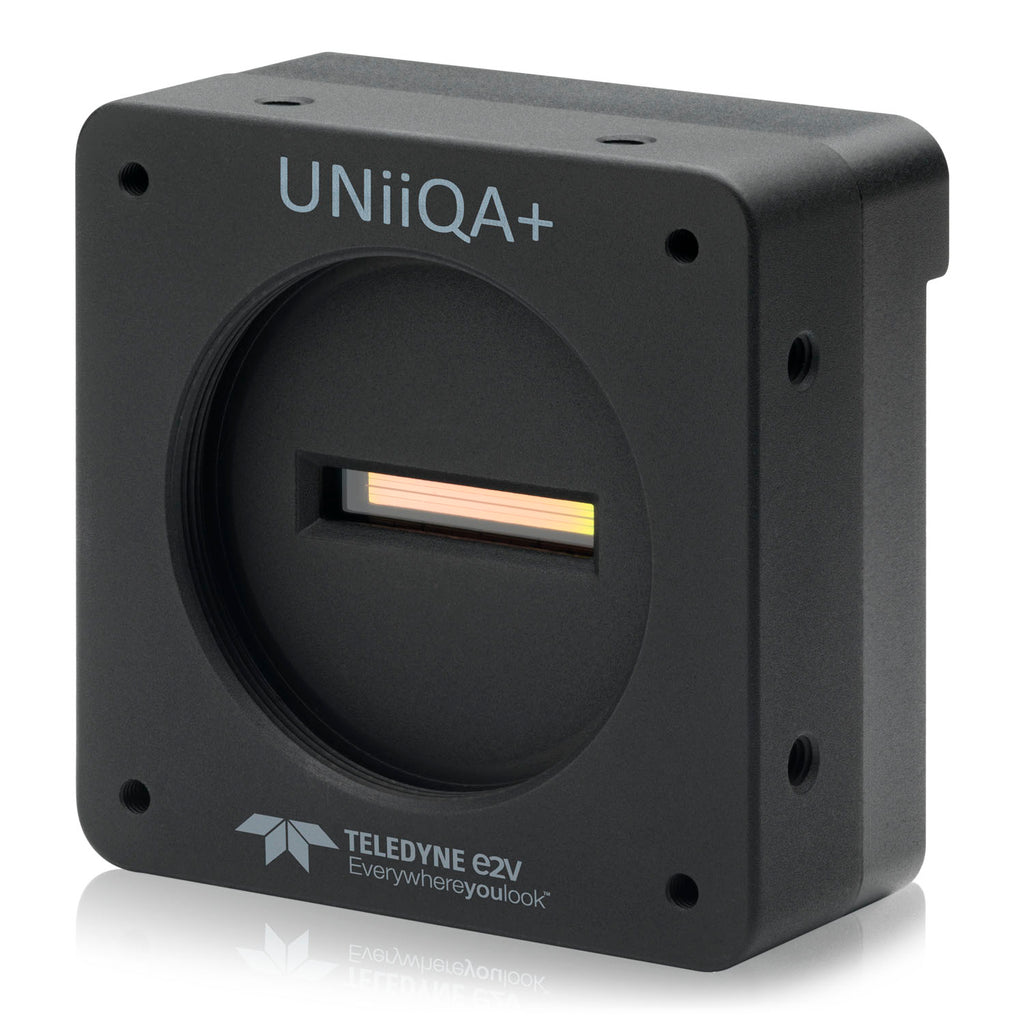

Teledyne UNiiQA+ Mono 2K 100KHz EV71YC1MCL2010-BA1
The UNiiQA+ line scan camera family has been specifically designed to overcome the limitations of your current inspection system: make cost savings, improve your throughput, inspect larger areas or identify smaller defects.
Highlighted
- Part Number
- EV71YC1MCL2010-BA1
- Resolution
- 2048 x 1
- Max Line Rate
- 100 kHz
- Pixel Size
- 5 µm
- Spectrum
- Mono
- Color/Mono
- Mono
- Lens Mount
- Native M-42 (C-mount compatible)
- Data Interface
- Camera Link
Features
- Triggering Modes
- Timed (Free run) and triggered (Ext Trig, Ext ITC) modes
Performance
- Dynamic Range
- 67 dB
- Full Well Capacity (Qsat)
- 47.3/23.7 ke-
- Gain Range
- 11.1 e-/LSB12bits
- Read Noise
- 10.6 e-
- Responsivity
- 162/324 LSB/(nJ/cm²)
- SNR
- 45/41.8 dB
Physical
- Digitization Bit Depth (ADC)
- 8 bit, 10 bit, or 12 bit, selectable
- Dimensions [W x H x L]
- 60 x 60 x 33 mm
- Mass
- 150 g
- Operating Humidity
- 0.85
- Operating Temperature
- -40 to 70 °C
- Power Dissipation
- < 3.5W
- Power Supply
- Single +10 VDC to +15 VDC
- Storage Temperature
- -40 to 70 °C
Compliance & Certifications
- Regulatory Compliance
- CE, FCC , Reach, RoHS and Chinese RoHs compliant
