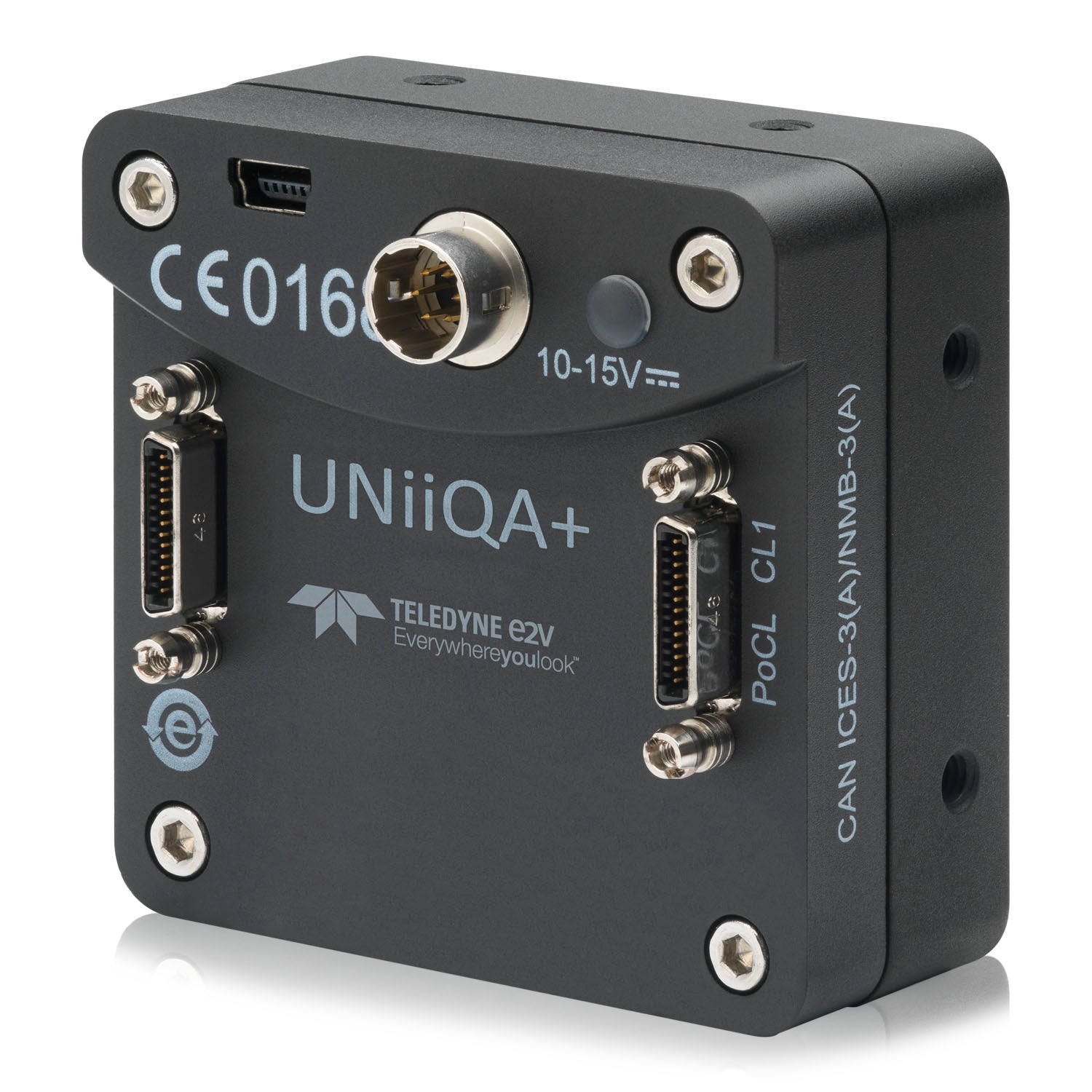

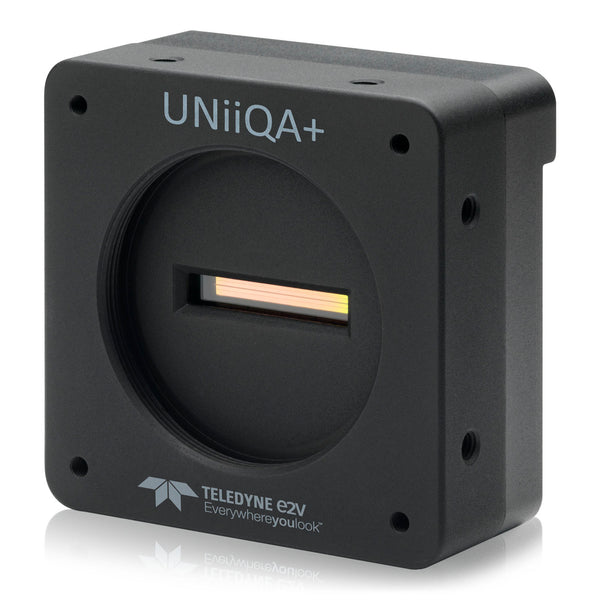

Teledyne UNiiQA+ Mono 16K 50KHz EV71YC1MCL1605-BA2
The UNiiQA+ line scan camera family has been specifically designed to overcome the limitations of your current inspection system: make cost savings, improve your throughput, inspect larger areas or identify smaller defects.
Highlighted
- Part Number
- EV71YC1MCL1605-BA2
- Resolution
- 16384 x 1
- Max Line Rate
- 50 kHz
- Pixel Size
- 5 µm
- Spectrum
- Mono
- Color/Mono
- Mono
- Lens Mount
- M-95 native
- Data Interface
- Camera Link
Features
- Triggering Modes
- Timed (Free run) and triggered (Ext Trig, Ext ITC) modes
Performance
- Dynamic Range
- 67 dB
- Responsivity
- 137 LSB 12bits/(nJ/cm2)
Physical
- Digitization Bit Depth (ADC)
- 8 bit, 10 bit, or 12 bit, selectable
- Dimensions [W x H x L]
- 100 x 156 x 36 mm
- Mass
- 700 g
- Operating Temperature
- -40 to 70 °C
- Power Dissipation
- <13 W
- Power Supply
- +12 V to +24 V DC, Hirose 12-pin
- Storage Temperature
- -40 to 70 °C
Compliance & Certifications
- Regulatory Compliance
- CE, FCC and RoHs Compliant
