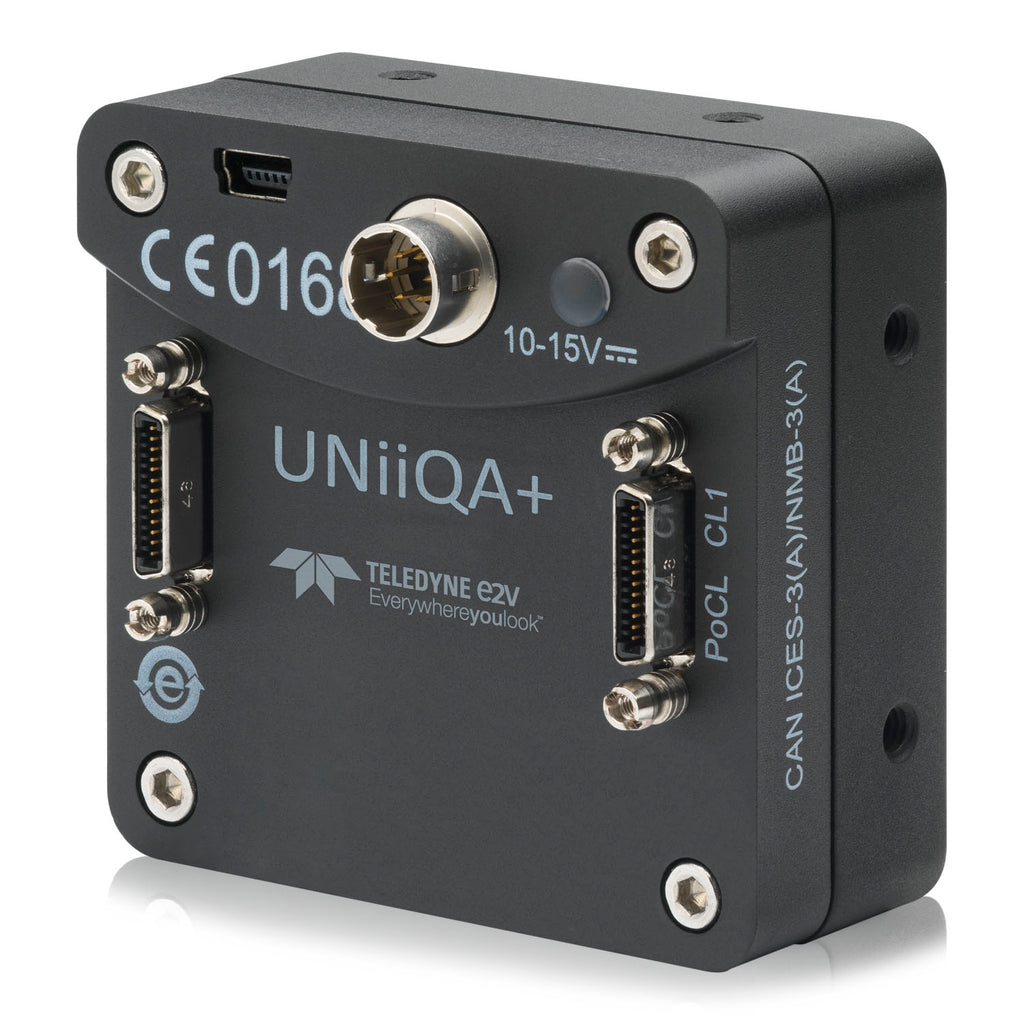

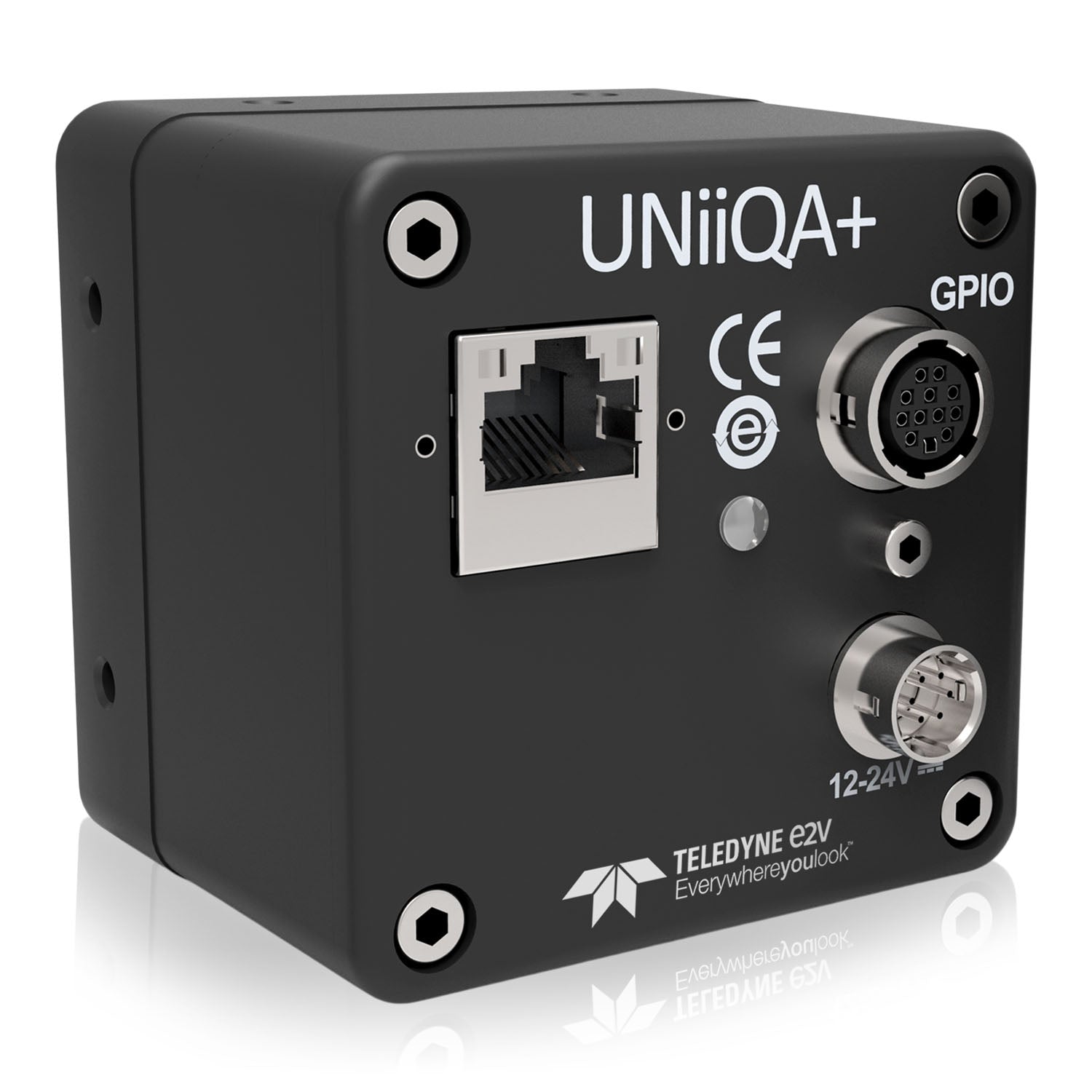

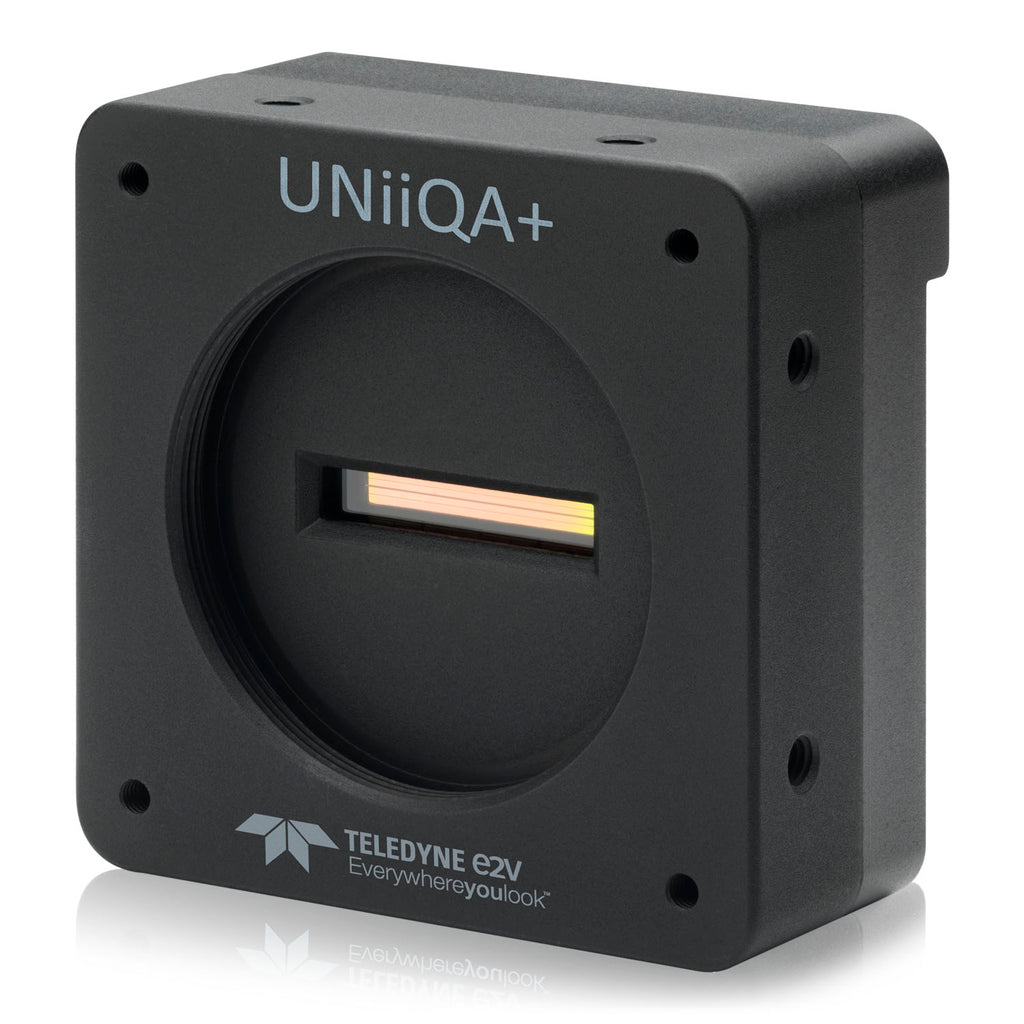

Teledyne UNiiQA+ Color 4K/2K 50khz EV71YC1CNT4005-BA0
The UNiiQA+ line scan camera family has been specifically designed to overcome the limitations of your current inspection system: make cost savings, improve your throughput, inspect larger areas or identify smaller defects.
Highlighted
- Part Number
- EV71YC1CNT4005-BA0
- Resolution
- 4096 x 1
- Max Line Rate
- 50 kHz
- Pixel Size
- 5 µm
- Spectrum
- Color
- Color/Mono
- Color
- Lens Mount
- Native M-42 (C-mount compatible)
- Data Interface
- Camera Link
Features
- Triggering Modes
- Timed (Free run) and triggered (Ext Trig, Ext ITC) modes
Performance
- Dynamic Range
- 65 dB
- Responsivity
- 11.8, 11.2, 7.8 LSB 8bits/(nJ/cm²)
Physical
- Digitization Bit Depth (ADC)
- 24 bit
- Dimensions [W x H x L]
- 60 x 60 x 33 mm
- Mass
- 150 g
- Operating Temperature
- 0 °C to 50 °C (front plate) 70°C(Internal)
- Power Dissipation
- < 11W
- Power Supply
- +12 V to +24 V DC, Hirose 12-pin
- Storage Temperature
- -40 to 70 °C
Compliance & Certifications
- Regulatory Compliance
- CE, FCC , Reach, RoHS and Chinese RoHs compliant
