Highlighted

Part Number

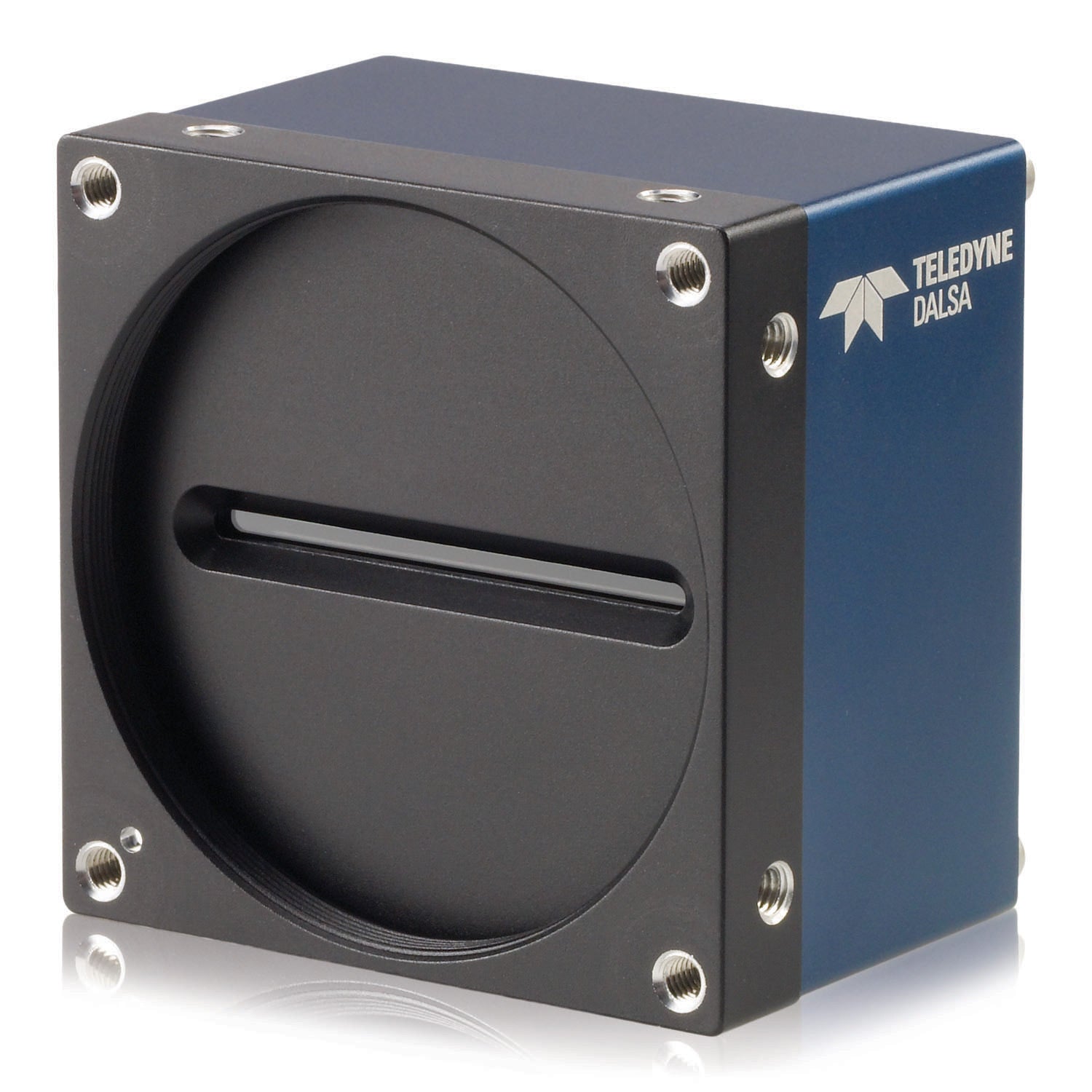

P4-CM-04K05D

Resolution

4096 x 2

Max Line Rate

100 kHz

Pixel Size

10.56 µm

Spectrum

Mono

Color/Mono

Mono

Lens Mount

M58 x 0.75

Data Interface

Camera Link

Performance

Dynamic Range

65 dB

Gain Range

1x~10x

Peak Wavelength

640 nm

Responsivity

65 (DN8/nJ/cm2)

Physical

Digitization Bit Depth (ADC)

8 bit or 10 bit, selectable

Dimensions [W x H x L]

62 x 62 x 48 mm

Mass

340 g

Operating Temperature

0 °C to 65 °C (front plate)

Power Dissipation

< 11W

Power Supply

Hirose 6-pin male

Compliance & Certifications

Regulatory Compliance

CE, FCC, and RoHS
