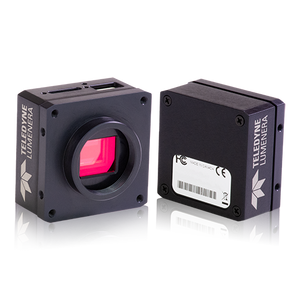

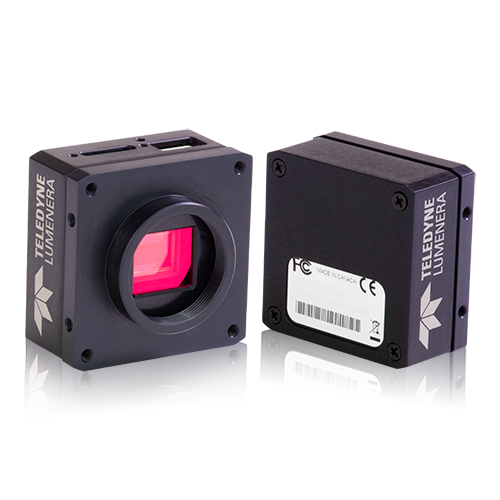

Teledyne LT Series USB3 LT-C4030
With robust compact enclosures and fully-locking USB3 connectors, the Lt Series USB3 Cameras are built for rugged 24/7 use. Manufactured using the latest rolling shutter Starvis™ CMOS sensors and global shutter Pregius⁾ CMOS sensors from Sony®, and ranging in resolution from 1.7-31 megapixels, these cameras perform in a wide variety of imaging applications such as aerial imaging, Intelligent Traffic Systems (ITS), robotic inspection solutions, and life sciences.
Highlighted
- Part Number
- LT-UC11-C4030IF
- Resolution
- 4112 x 2176
- Megapixels
- 8.9
- Max Frame Rate Standard
- 31
- Max Frame Rate Burst
- 31
- Sensor Model
- Sony IMX267
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 1"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- IR cut-off (650 nm)
- Lens Mount
- C-mount
- Synchronization
- Image sync: Free-running, software & hardware trigger
- Data Interface
- USB 3.0 (5.0 Gbps)
- Protection
- IP40
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Exposure Range
- 14 µs to 30 seconds
- Flash Memory
- 8 MB non-volatile memory
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 128 MB
- Image Processing
- Gamma, lookup table, auto white balance, brightness and contrast
- Partial Image Modes
- ROI
- User Sets
- 2 user configuration sets for custom camera settings
- White Balance
- Manual, automatic (AWB)
Performance
- Absolute Sensitivity Threshold (y)
- 4.7
- Dynamic Range dB
- 73.27
- Gain Range
- 1x to 251x (0 dB to 48 dB)
- QE Blue
- 49 @470 nm
- QE Green
- 59 @525 nm
- QE Red
- 46 @630 nm
- Saturation Capacity (e-)
- 10400
Physical
- Connector
- USB3 Micro-B (horizontal locking) | JST HSHR-09V-S
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 45 mm x 45 mm x 36.1 mm
- GPIO
- JST# SM09B-NSHSS-TB
- Mass
- 88 g
- Non-Isolated I/O Ports
- 2 Bi-directional
- Operating Humidity
- 5 to 95% (no condensation)
- Operating Temperature
- 0 to 50 °C
- Opto-isolated I/O Ports
- 1 input, 1 output
- Power Consumption [Maximum]
- 2.3 W to 3.6 W
- Power Requirements
- Power over USB or 5 to 25 V via GPIO connector
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -30°C to 70°C
Recommended System Configuration
- Accessories (Included)
- 3m USB 3.0 cable
- Port
- USB3
- Power Sourcing Equipment
- USB3 Port or External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (USB Port)
