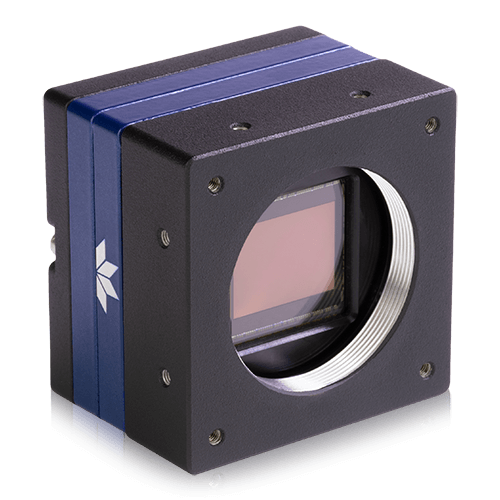

Teledyne LT Series USB3 LT-965RM
With robust compact enclosures and fully-locking USB3 connectors, the Lt Series USB3 Cameras are built for rugged 24/7 use. Manufactured using the latest rolling shutter Starvis™ CMOS sensors and global shutter Pregius⁾ CMOS sensors from Sony®, and ranging in resolution from 1.7-31 megapixels, these cameras perform in a wide variety of imaging applications such as aerial imaging, Intelligent Traffic Systems (ITS), robotic inspection solutions, and life sciences.
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Flash Memory
- 8 MB non-volatile memory
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 128 MB
- Image Processing
- Gamma, lookup table
- Max Frame Rate Standard
- 19
- Partial Image Modes
- Pixel binning, decimation, ROI
- Synchronization
- Image sync: Free-running, software & hardware trigger
- Triggering Modes
- Hardware and software triggerable
- User Sets
- 2 user configuration sets for custom camera settings
- White Balance
- Manual and automatic control
Performance
- Absolute Sensitivity Threshold (y)
- 4.7 DN/(nJ/cm²)
- Dark Current
- <1 e-/s at 22 °C
- Dynamic Range dB
- 65
- Max Frame Rate Burst
- 19
- QE (Mono)
- 0.69
- Saturation Capacity (e-)
- 12000
- Temporal Dark Noise (Read Noise)
- 6.8 e-
Physical
- Connector
- USB3 Micro-B (horizontal locking) | Hirose MXR-8R-8SA(71) | 4-pin Lens Iris Control
- Data Interface
- USB 3.0 (5.0 Gbps)
- Digitization Bit Depth (ADC)
- 8-bit, 14-bit
- Dimensions [W x H x L]
- 43 mm x 43 mm x 65 mm
- GPIO
- Locking Hirose MXR-8R-8SA(71)
- Lens Mount
- C-mount
- Mass
- 175 g
- Megapixels
- 9.1
- Non-Isolated I/O Ports
- 22 Bi-directional
- Operating Humidity
- 5 to 95% (no condensation)
- Operating Temperature
- 0 to 50 °C
- Optical Filter
- None
- Opto-isolated I/O Ports
- 1 input, 1 output
- Part Number
- Lt965RM
- Pixel Size
- 3.69
- Power Consumption [Maximum]
- 6 W
- Power Requirements
- USB Y cable or 5 V via GPIO connector
- Protection
- IP40
- Resolution
- 3376 × 2704
- Sensor Diagonal
- 15.99 mm
- Sensor Model
- Sony ICX814
- Sensor Type
- CCD
- Shutter type
- Global shutter
- Spectrum
- Mono
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -30 to 70 °C
Recommended System Configuration
- Accessories (Included)
- 3m USB 3.0 cable
- Port
- USB3
- Power Sourcing Equipment
- USB3 Port or External Camera Power Supply
