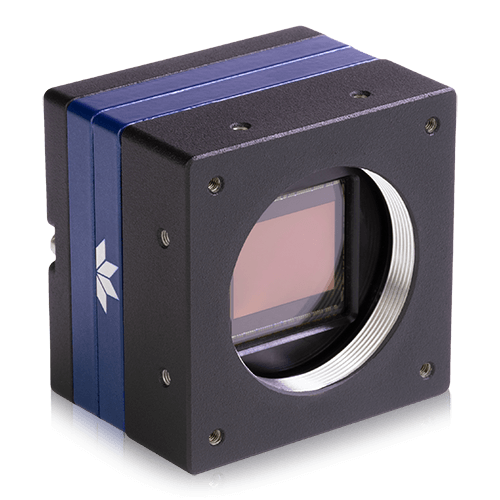

Teledyne LT Series USB3 LT-C5470
With robust compact enclosures and fully-locking USB3 connectors, the Lt Series USB3 Cameras are built for rugged 24/7 use. Manufactured using the latest rolling shutter Starvis™ CMOS sensors and global shutter Pregius⁾ CMOS sensors from Sony®, and ranging in resolution from 1.7-31 megapixels, these cameras perform in a wide variety of imaging applications such as aerial imaging, Intelligent Traffic Systems (ITS), robotic inspection solutions, and life sciences.
Highlighted
- Part Number
- LT-UC20-C5475
- Resolution
- 5472 x 3084
- Megapixels
- 16.8
- Max Frame Rate Standard
- 27
- Max Frame Rate Burst
- 32
- Sensor Model
- Sony IMX387
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 4/3"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- None
- Lens Mount
- M42 x 1 mm
- Synchronization
- Image sync: Free-running, software & hardware trigger
- Data Interface
- USB 3.0 (5.0 Gbps)
- Protection
- IP40
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Exposure Range
- 30 µs to 12 seconds
- Flash Memory
- 8 MB non-volatile memory
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 256 MB
- Image Processing
- Gamma, lookup table, auto white balance, brightness and contrast
- Partial Image Modes
- ROI
- User Sets
- 2 user configuration sets for custom camera settings
- White Balance
- Manual, automatic (AWB)
Performance
- Absolute Sensitivity Threshold (y)
- 4.7
- Dynamic Range dB
- 73
- Gain Range
- 1x to 251x (0 dB to 48 dB)
- QE Blue
- 49 @470 nm
- QE Green
- 59 @525 nm
- QE Red
- 46 @630 nm
- Saturation Capacity (e-)
- 10400
- Temporal Dark Noise (Read Noise)
- 2.3
Physical
- Connector
- USB3 Micro-B (horizontal locking) | SAMTEC TFM-105 type
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 59 mm x 59 mm x 44 mm
- GPIO
- Samtec TFM-105-02-L-D-WT
- Mass
- 263 g
- Operating Humidity
- 5 to 95% (no condensation)
- Operating Temperature
- 0 to 50 °C
- Opto-isolated I/O Ports
- 2 input, 3 output
- Power Consumption [Maximum]
- 8 W
- Power Requirements
- 10 to 28 V via GPIO connector
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -30°C to 70°C
Recommended System Configuration
- Accessories (Included)
- 3m USB 3.0 cable
- Port
- USB3
- Power Sourcing Equipment
- External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (USB Port)
