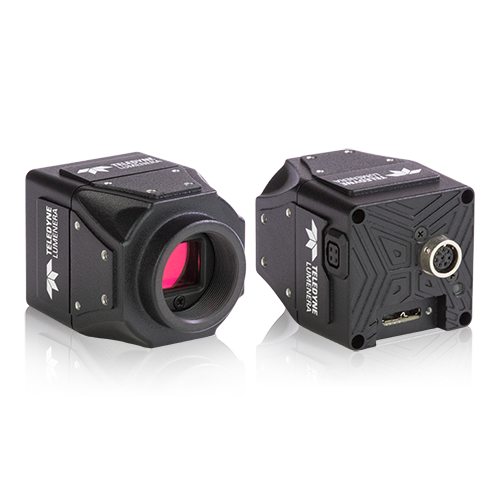

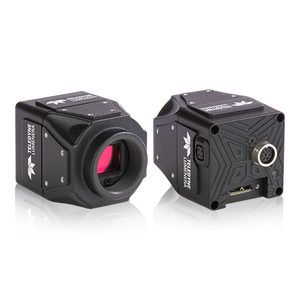

Teledyne LT Series USB3 LT-1245RM
With robust compact enclosures and fully-locking USB3 connectors, the Lt Series USB3 Cameras are built for rugged 24/7 use. Manufactured using the latest rolling shutter Starvis™ CMOS sensors and global shutter Pregius⁾ CMOS sensors from Sony®, and ranging in resolution from 1.7-31 megapixels, these cameras perform in a wide variety of imaging applications such as aerial imaging, Intelligent Traffic Systems (ITS), robotic inspection solutions, and life sciences.
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Exposure Range
- 14 µs to 30 seconds
- Flash Memory
- 8 MB non-volatile memory
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 128 MB
- Image Processing
- Gamma, lookup table
- Max Frame Rate Standard
- 30
- Partial Image Modes
- Pixel binning, decimation, ROI
- Synchronization
- Image sync: Free-running, software & hardware trigger
- Triggering Modes
- Hardware and software triggerable
- User Sets
- 2 user configuration sets for custom camera settings
- White Balance
- Manual and automatic control
Performance
- Absolute Sensitivity Threshold (y)
- 4.7
- Dark Current
- 1.2 e-/s at 22 °C
- Dynamic Range dB
- 74
- Gain Range
- 1x to 251x (0 dB to 48 dB)
- Max Frame Rate Burst
- 42
- QE (Mono)
- 62 @530 nm
- Saturation Capacity (e-)
- 10400
- Temporal Dark Noise (Read Noise)
- 2.41 e-
Physical
- Connector
- USB3 Micro-B (horizontal locking) | Hirose MXR-8R-8SA(71) | 4-pin Lens Iris Control
- Data Interface
- USB 3.0 (5.0 Gbps)
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 44 mm x 44 mm x 61 mm
- GPIO
- Hirose-8 male connector, P-iris 4 pin connector
- Lens Mount
- C-mount
- Mass
- 140 g
- Megapixels
- 12.3
- Non-Isolated I/O Ports
- 2 Bi-directional
- Operating Humidity
- 5 to 95% (no condensation)
- Operating Temperature
- 0 to 50 °C
- Optical Filter
- None
- Opto-isolated I/O Ports
- 1 input, 1 output
- Part Number
- Lt1245RM
- Pixel Size
- 3.45
- Power Consumption [Maximum]
- 4 W
- Power Requirements
- Power over USB or 5 to 25 V via GPIO connector
- Protection
- IP40
- Resolution
- 4112 x 3008
- Sensor Diagonal
- 17.6 mm
- Sensor Format
- 1.1"
- Sensor Model
- Sony IMX253
- Sensor Type
- CMOS
- Shutter type
- Global shutter
- Spectrum
- Mono
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -30 to 70 °C
Recommended System Configuration
- Accessories (Included)
- 3m USB 3.0 cable
- Port
- USB3
- Power Sourcing Equipment
- USB3 Port or External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (USB Port)
