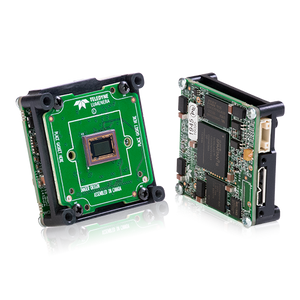

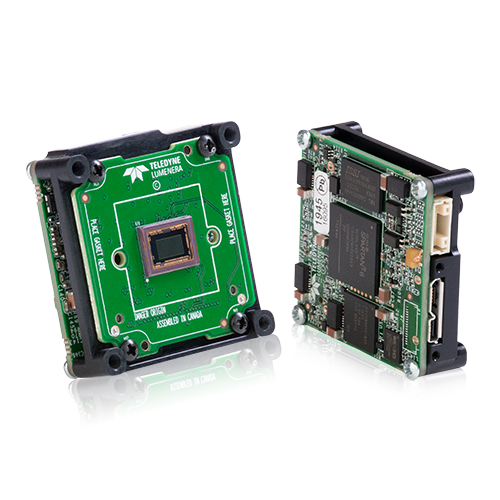

Part Number

LT-UM11-M242NBL

Resolution

2464 x 2056

Megapixels

5

Max Frame Rate Standard

35

Max Frame Rate Burst

35

Sensor Model

Sony IMX264

Pixel Size

3.45

Sensor Type

CMOS

Sensor Format

2/3"

Shutter type

Global shutter

Spectrum

Mono

Optical Filter

None

Synchronization

Image sync: Free-running, software & hardware trigger

Data Interface

USB 3.0 (5.0 Gbps)

Protection

IPx

Features

Acquisition Modes

Continuous / Single Frame

Exposure Control

Hardware trigger, programmable via camera API, automatic

Exposure Range

14 µs to 30 seconds

Flash Memory

8 MB non-volatile memory

Gain Control

Manual, automatic (AGC)

Image Buffer

128 MB

Image Processing

Gamma, lookup table

Partial Image Modes

Pixel binning, decimation, ROI

User Sets

2 user configuration sets for custom camera settings

White Balance

Manual and automatic control

Performance

Absolute Sensitivity Threshold (y)

4.7

Dynamic Range dB

73.02

Gain Range

1x to 251x (0 dB to 48 dB)

QE (Mono)

62 @530 nm

Saturation Capacity (e-)

10400

Temporal Dark Noise (Read Noise)

2.3

Physical

Connector

USB3 Micro-B (horizontal locking) | JST HSHR-09V-S

Digitization Bit Depth (ADC)

8-bit, 12-bit

Dimensions [W x H x L]

40.4 mm x 40.4 mm x 17.1 mm

GPIO

JST# SM09B-NSHSS-TB

Mass

28 g

Non-Isolated I/O Ports

2 Bi-directional

Operating Humidity

10 to 80% (no condensation)

Operating Temperature

0 to 50 °C

Opto-isolated I/O Ports

1 input, 1 output

Power Consumption [Maximum]

2.3 W to 3.6 W

Power Requirements

Power over USB or 5 to 25 V via GPIO connector

Storage Humidity

20 to 80% (no condensation)

Storage Temperature

-30°C to 70°C

Recommended System Configuration

Accessories (Included)

3m USB 3.0 cable

Port

USB3

Power Sourcing Equipment

USB3 Port or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (USB Port)
