Highlighted

Part Number

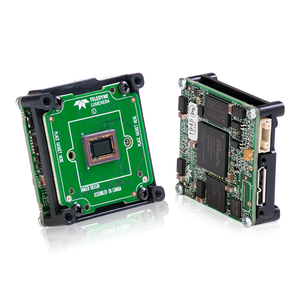

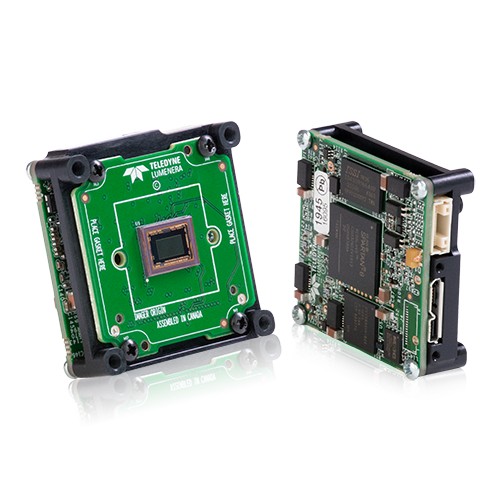

LT-UC10-C384NBL

Resolution

3840 x 2160

Megapixels

8.2

Max Frame Rate Standard

44

Max Frame Rate Burst

44

Sensor Model

Sony IMX334

Pixel Size

2

Sensor Type

CMOS

Sensor Format

1/1.8"

Shutter type

Rolling shutter with global reset

Spectrum

Color

Optical Filter

None

Synchronization

Image sync: Free-running, software & hardware trigger

Data Interface

USB 3.0 (5.0 Gbps)

Protection

IPx

Features

Acquisition Modes

Continuous / Single Frame

Exposure Control

Hardware trigger, programmable via camera API, automatic

Exposure Range

12 µs to 30 seconds

Flash Memory

8 MB non-volatile memory

Gain Control

Manual, automatic (AGC)

Image Buffer

128 MB

Image Processing

Gamma, lookup table, auto white balance, brightness and contrast

Partial Image Modes

ROI

User Sets

2 user configuration sets for custom camera settings

White Balance

Manual, automatic (AWB)

Performance

Dynamic Range dB

70

Gain Range

1x to 3317x

Saturation Capacity (e-)

7300

Temporal Dark Noise (Read Noise)

2

Physical

Connector

USB3 Micro-B (horizontal locking) | JST HSHR-09V-S

Digitization Bit Depth (ADC)

8-bit, 12-bit

Dimensions [W x H x L]

40.4 mm x 40.4 mm x 17.1 mm

GPIO

JST# SM09B-NSHSS-TB

Mass

28 g

Non-Isolated I/O Ports

2 Bi-directional

Operating Humidity

10 to 80% (no condensation)

Operating Temperature

0 to 50 °C

Opto-isolated I/O Ports

1 input, 1 output

Power Consumption [Maximum]

2.3 W to 3.6 W

Power Requirements

Power over USB or 5 to 25 V via GPIO connector

Storage Humidity

20 to 80% (no condensation)

Storage Temperature

-30°C to 70°C

Recommended System Configuration

Accessories (Included)

3m USB 3.0 cable

Port

USB3

Power Sourcing Equipment

USB3 Port or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (USB Port)
