Part Number

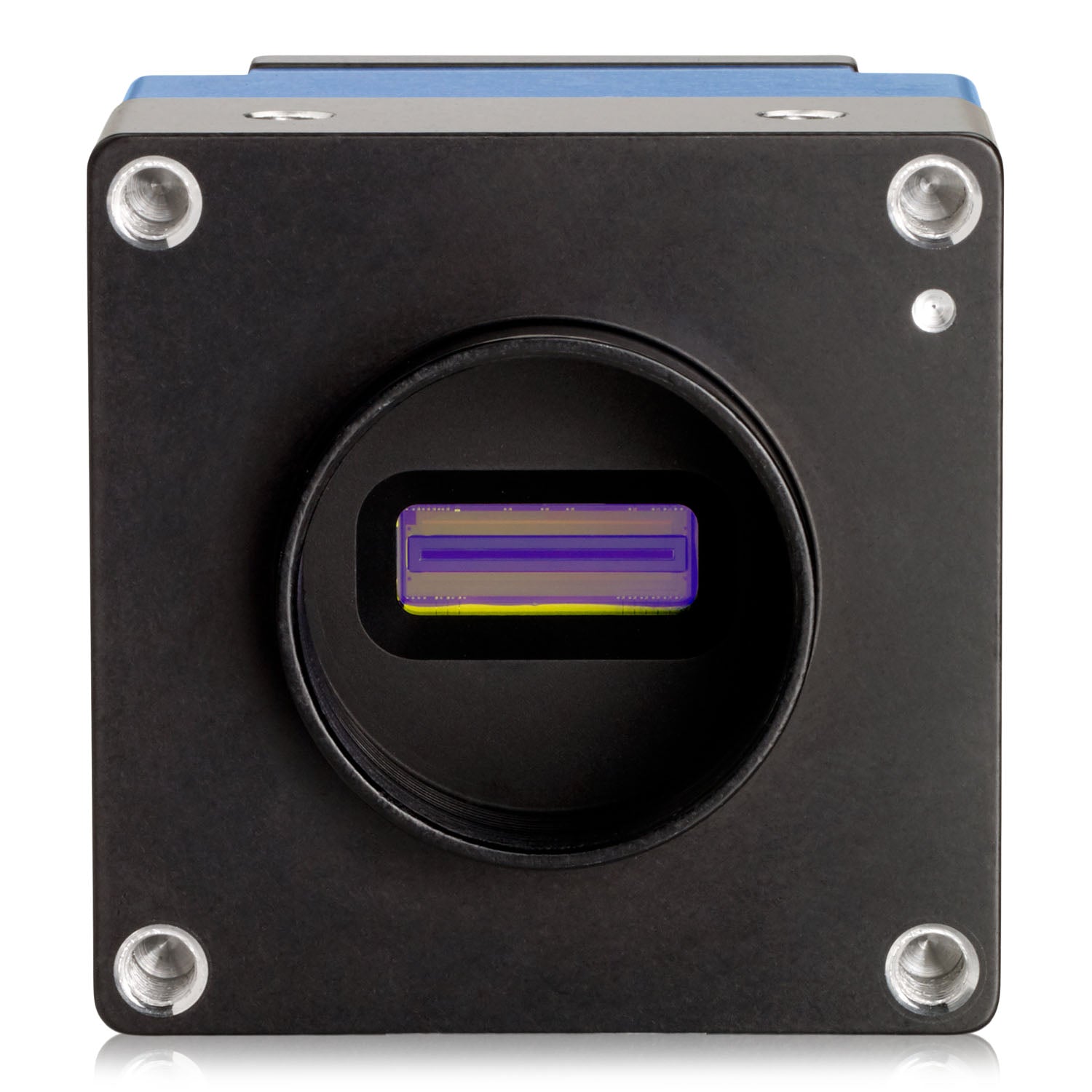

SL-GA-05H04A-00-R

Resolution

512 x 1

Max Line Rate

40 kHz

Pixel Size

25

Sensor Type

InGaAs

Shutter type

Global shutter

Spectrum

SWIR

Optical Filter

None

Lens Mount

C-mount

Synchronization

Image sync: Free-running, software & hardware trigger

Data Interface

Gigabit Ethernet 1 Gbps

Protection

IP30

Features

Acquisition Modes

Continuous / Single Frame

Exposure Control

Hardware trigger, programmable via camera API

Flash Memory

32 MB non-volatile memory

Gain Control

Manual

Image Buffer

32 MB

Image Processing

Pixel Correction & Flat line correction

Partial Image Modes

ROI

User Sets

4 user configuration sets for custom camera settings

Performance

Dynamic Range dB

66

Gain Range

1x to 10x

Peak Wavelength

1550 nm

QE (Mono)

0.66

Responsivity

1.3 (DN8/nJ/cm2)

Saturation Capacity (e-)

10000

Temporal Dark Noise (Read Noise)

21

Physical

Connector

RJ-45 (vertical locking) | SAMTEC TFM-105 type

Digitization Bit Depth (ADC)

8-bit, 12-bit

Dimensions [W x H x L]

46 mm x 46 mm x 55 mm

Mass

150 g

Operating Temperature

0°C to 40°C (measured at the front face of the camera)

Opto-isolated I/O Ports

2 input, 2 output

Power Requirements

Power Over Ethernet (PoE) or 12 to 24 V via GPIO connector

Storage Humidity

15 to 85% (no condensation)

Storage Temperature

-20°C to 80°C

Recommended System Configuration

Port

Gigabit Ethernet Port

Power Sourcing Equipment

IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (GigE)
