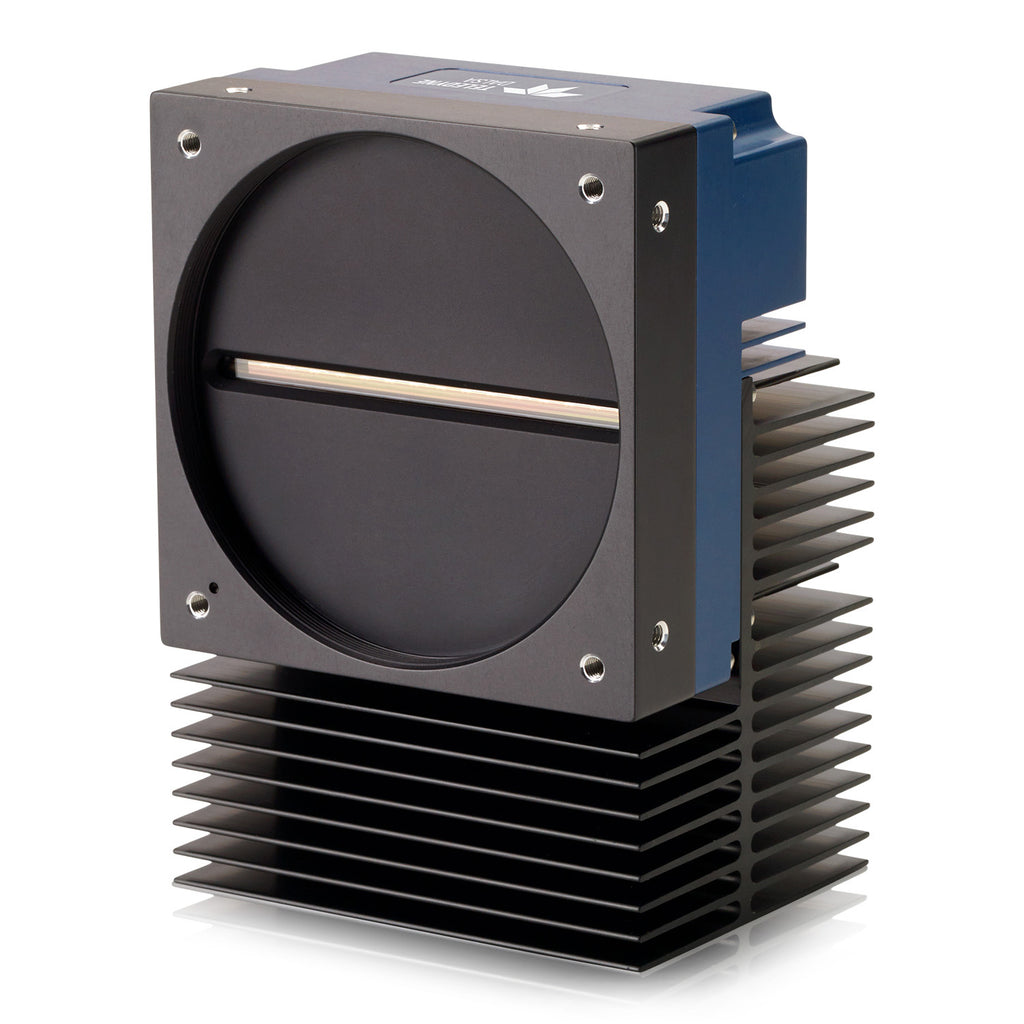

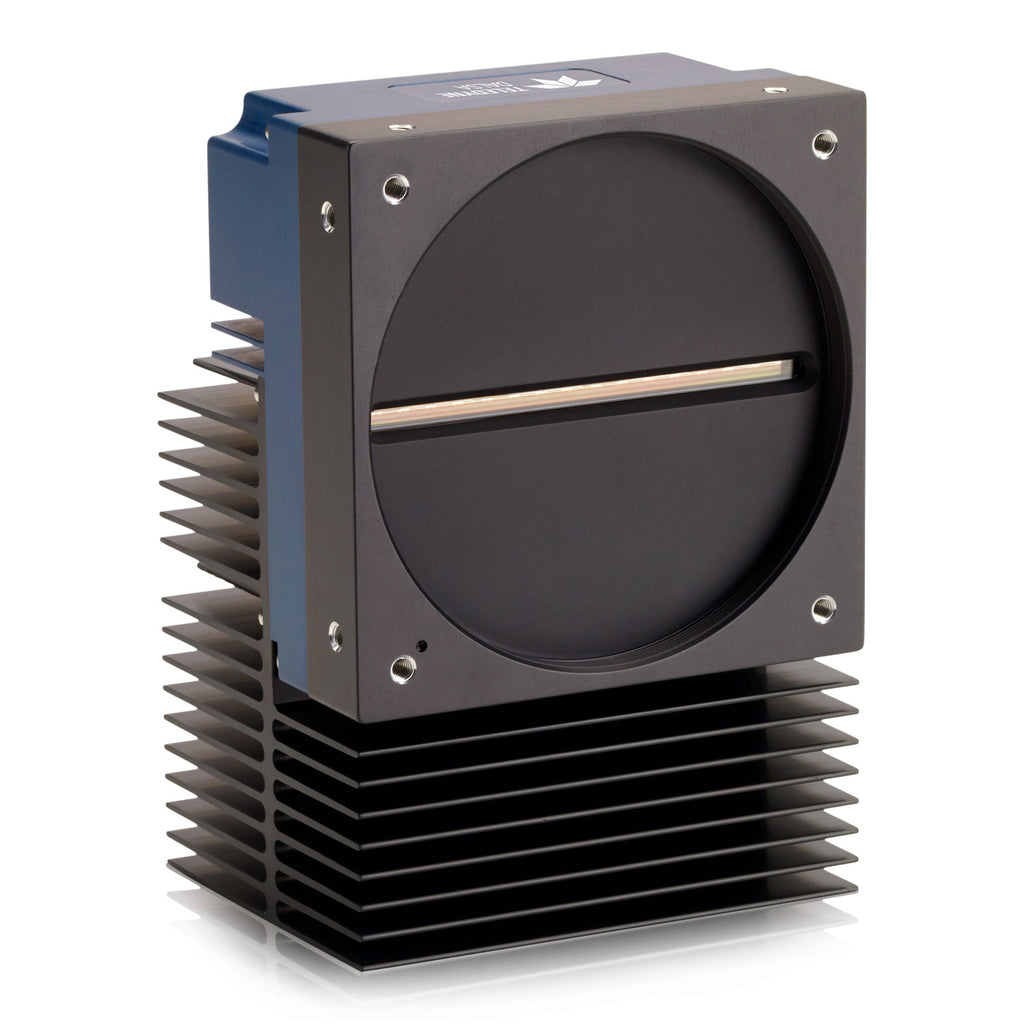

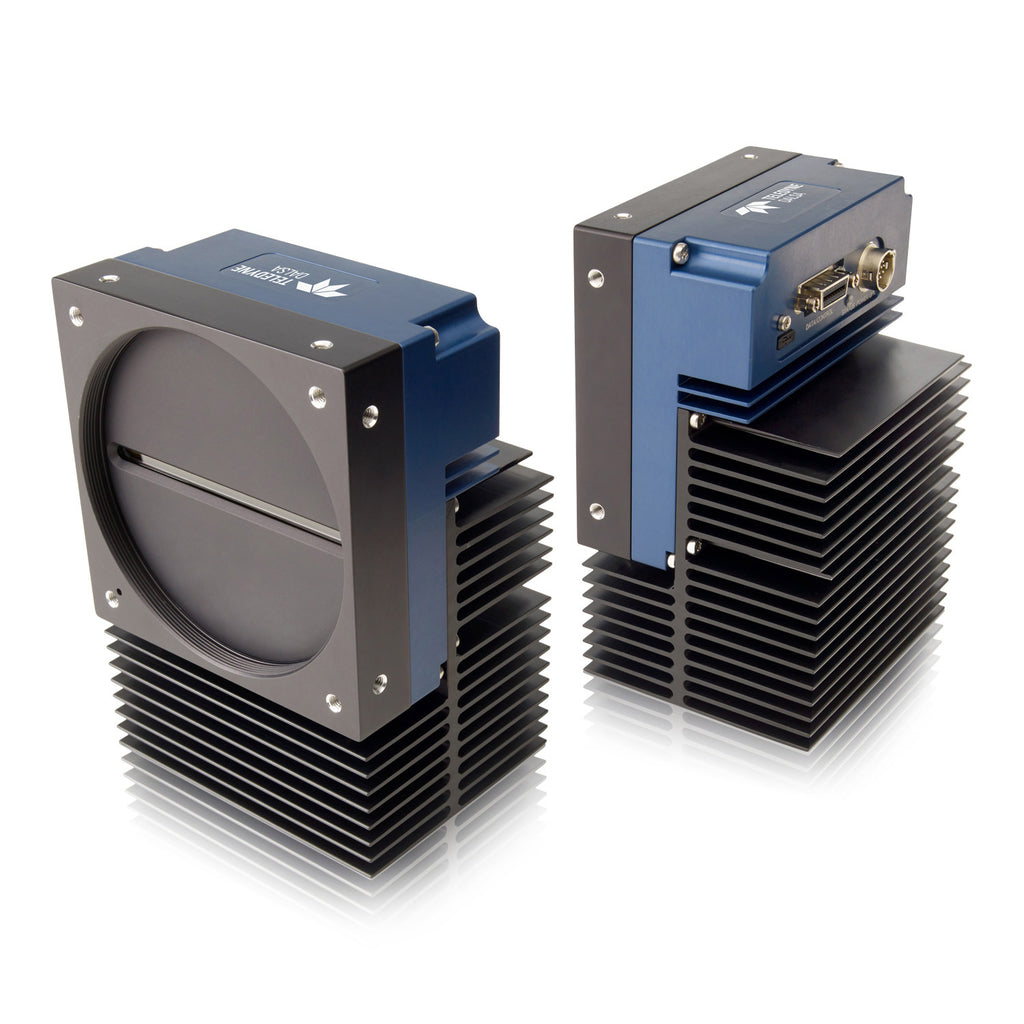

Teledyne Linea ML Mono 16k Fiber 143 kHz ML-FM-16K15A
Based on Teledyne DALSA’s unique CMOS linescan technology, the Linea ML multispectral camera delivers superb colour fidelity with an independent near-infrared output — all in a compact footprint with a CLHS fibreoptic interface.
Highlighted
- Part Number
- ML-FM-16k15A-00-R
- Resolution
- 16384 x 1
- Max Line Rate
- 140 kHz
- Sensor Model
- Teledyne DALSA
- Pixel Size
- 5
- Sensor Type
- CMOS
- Shutter type
- Global shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- M90 x 1 mm
- Synchronization
- Image sync: Free-running, external trigger, CLHS trigger
- Data Interface
- Camera Link HS
- Protection
- IP30
Features
- Acquisition Modes
- Continuous
- Exposure Control
- Hardware trigger, programmable via camera API
- Gain Control
- Manual
Performance
- Dynamic Range dB
- 72
- Gain Range
- 1x to 10x
- Peak Wavelength
- 650 nm
- Responsivity
- 18 (DN8/nJ/cm2)
Physical

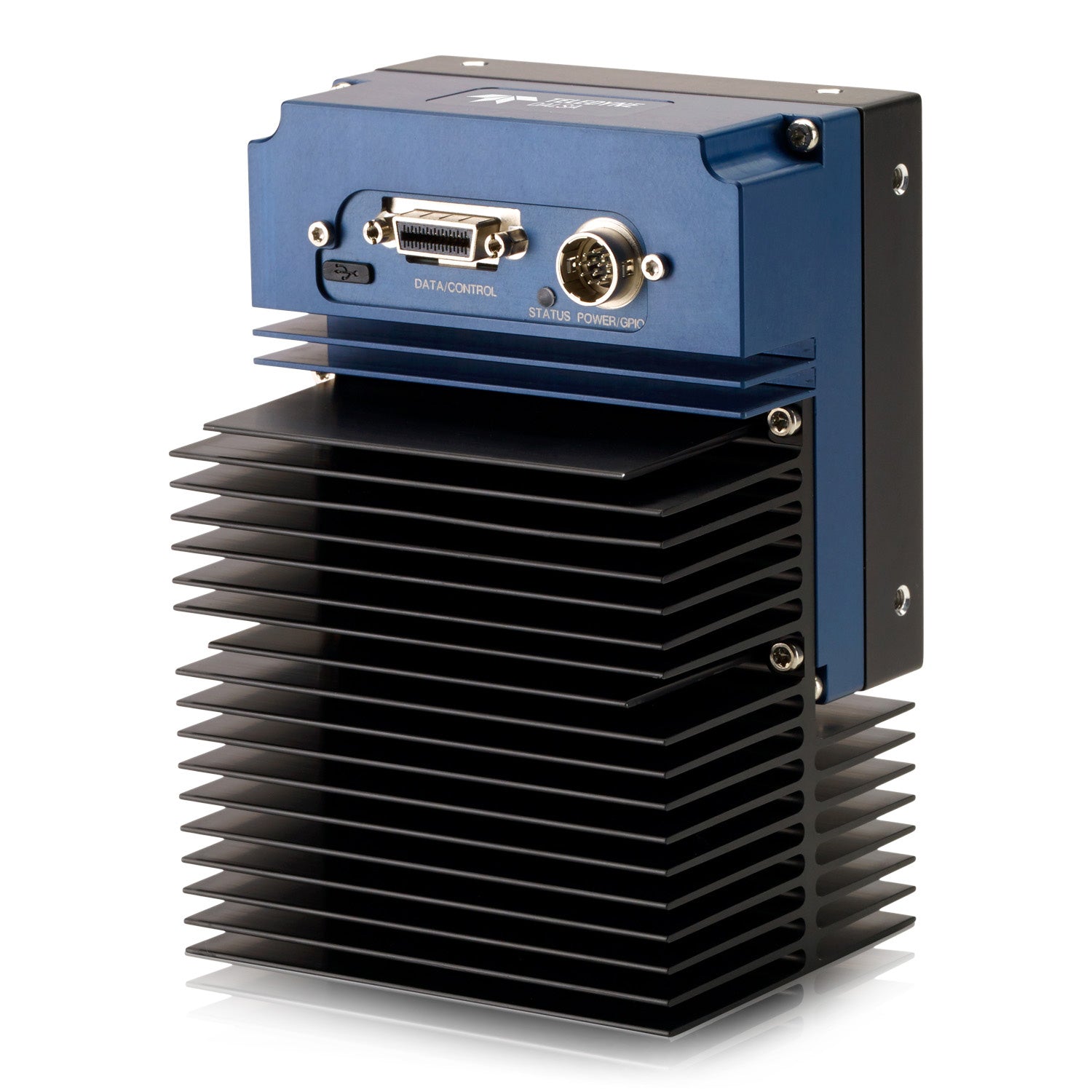

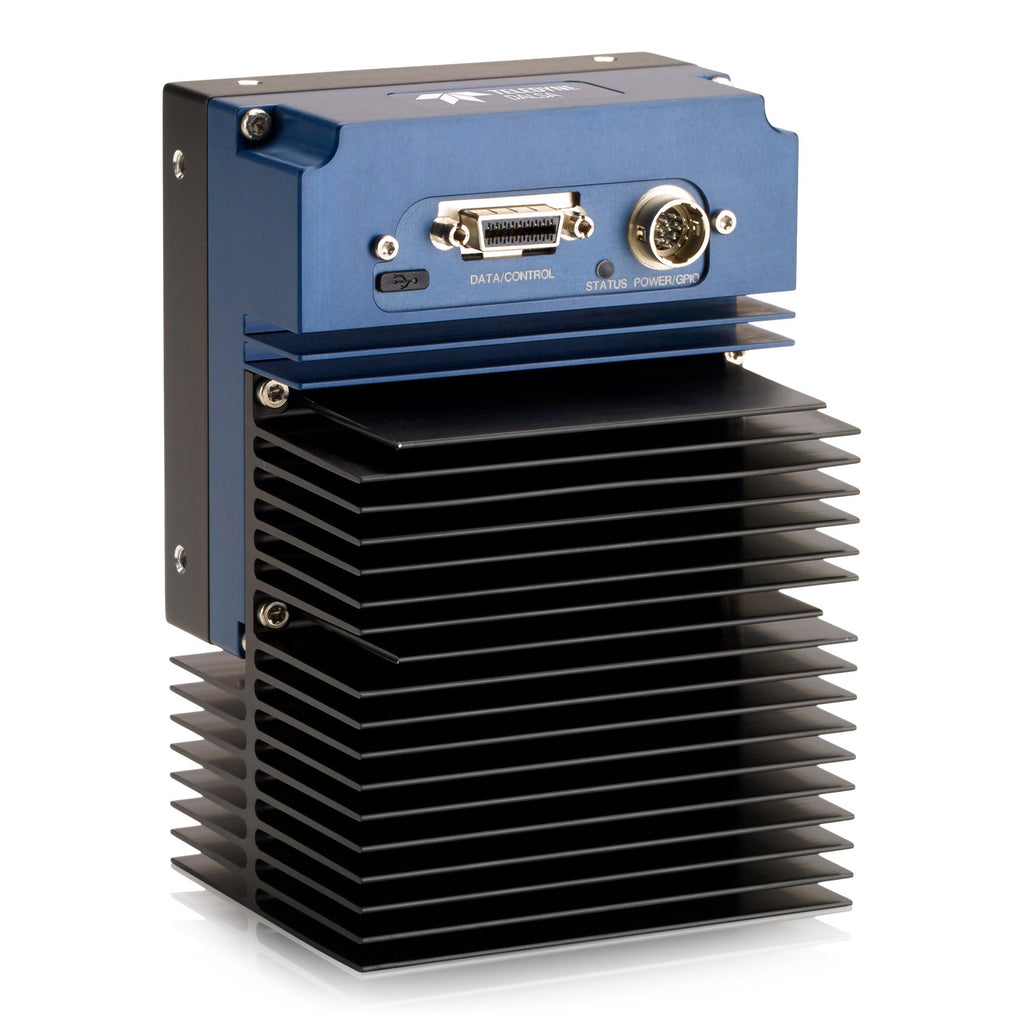

- Connector
- 2x LC fiber optic | Hirose 12-pin circular (male)
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 97 mm x 140.5 mm x 78.6 mm
- Mass
- 1.2 kg
- Operating Temperature
- 0°C to 65°C (measured at the front face of the camera)
- Power Consumption [Maximum]
- 25 W
- Power Requirements
- 12 to 24 V via GPIO connector
- Storage Humidity
- 15 to 85% (no condensation)
- Storage Temperature
- -20°C to 80°C
Recommended System Configuration
- Port
- CLHS 2 Fiber optic Lanes (10 Gbps/lane)
- Power Sourcing Equipment
- External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (CLHS Frame Grabber)
