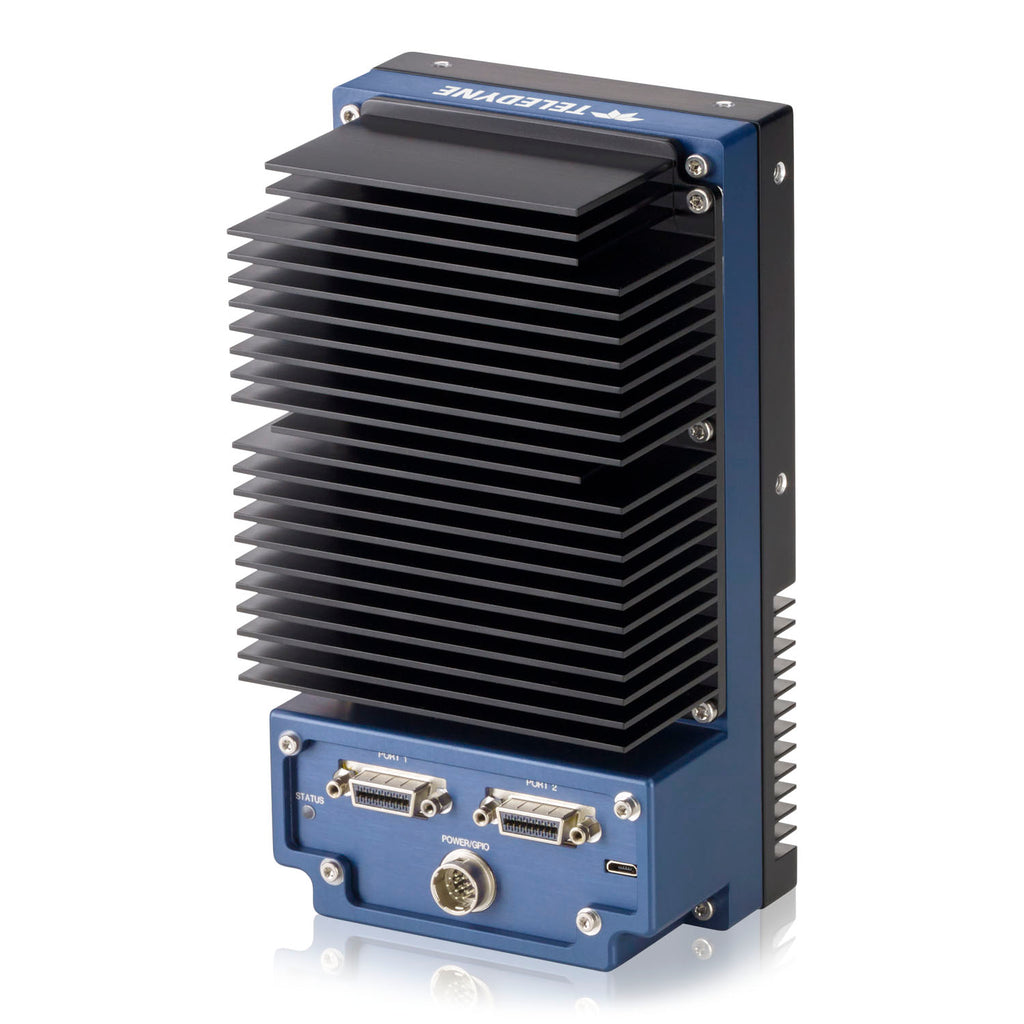

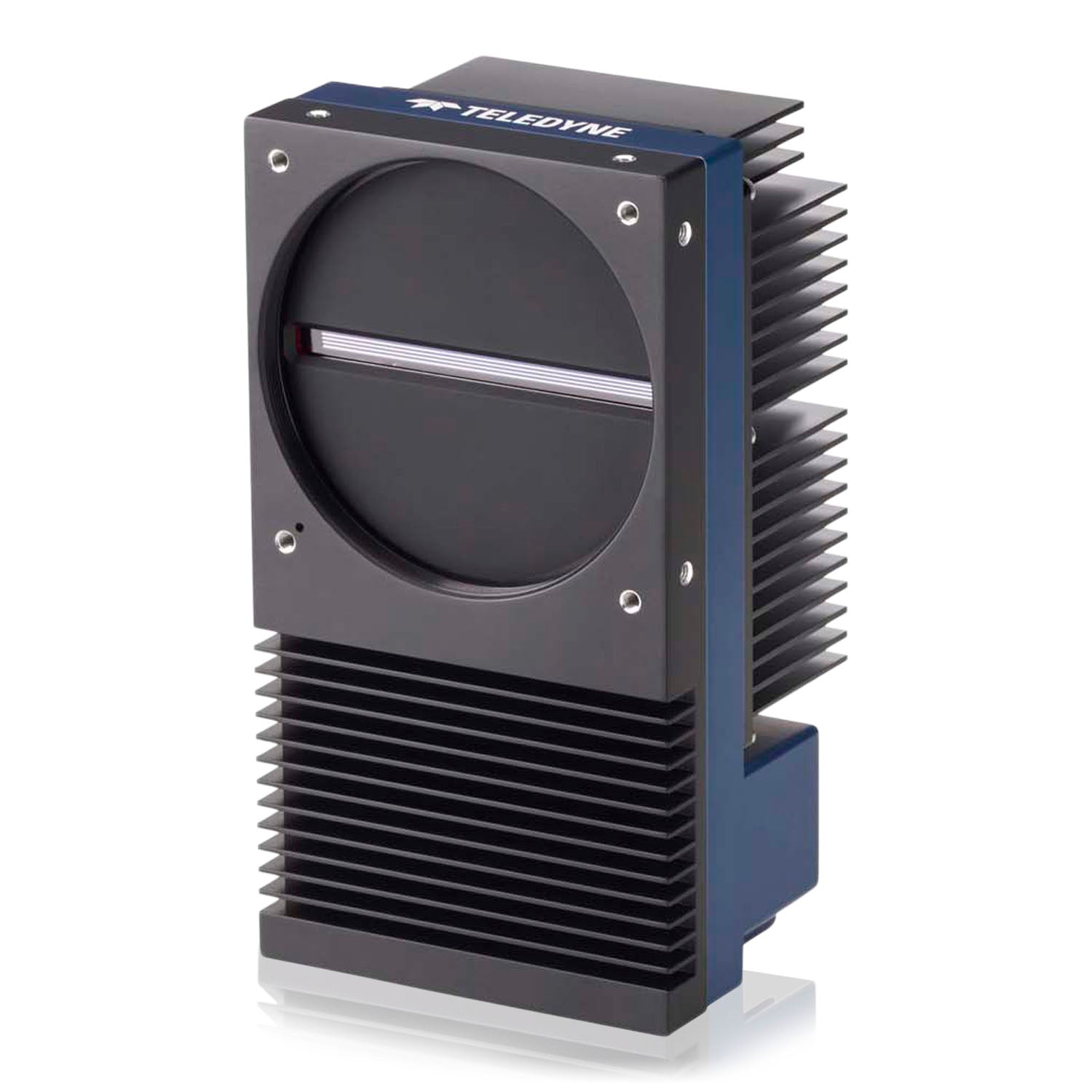

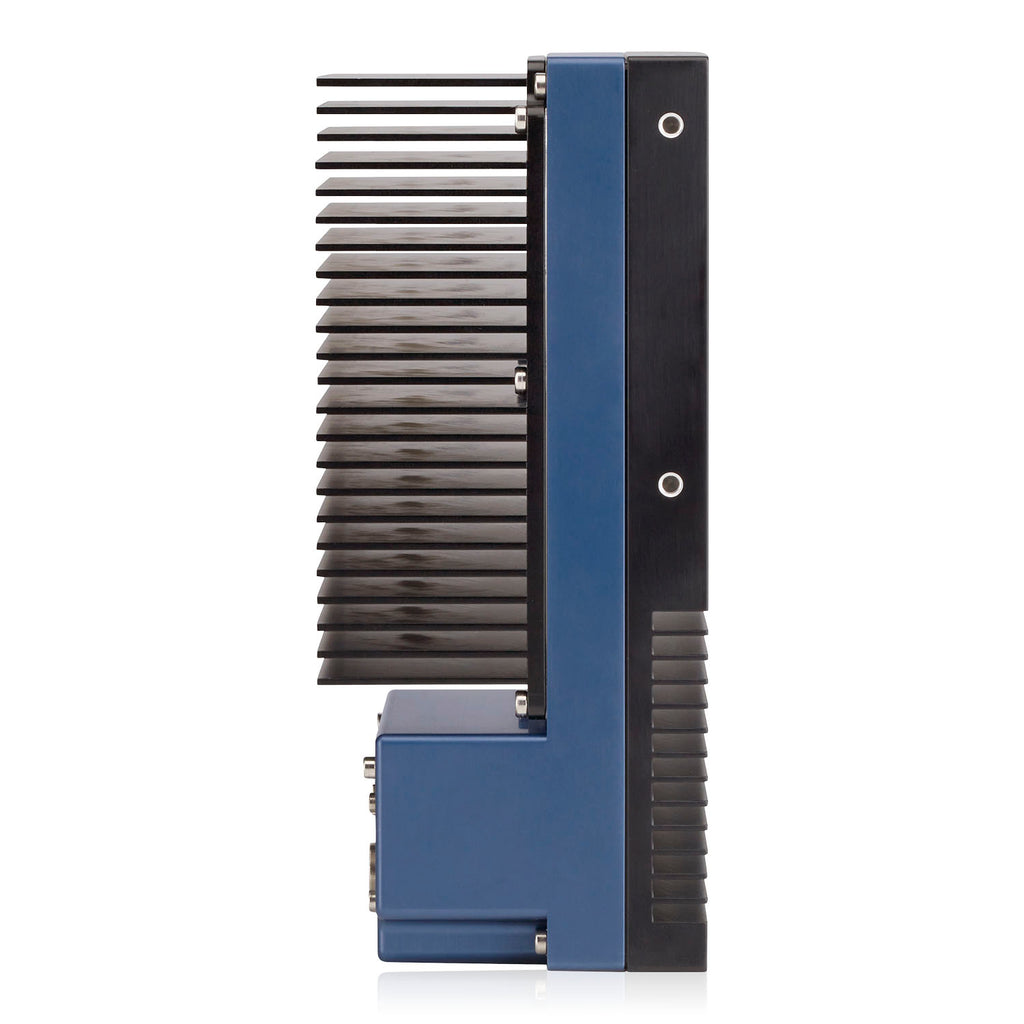

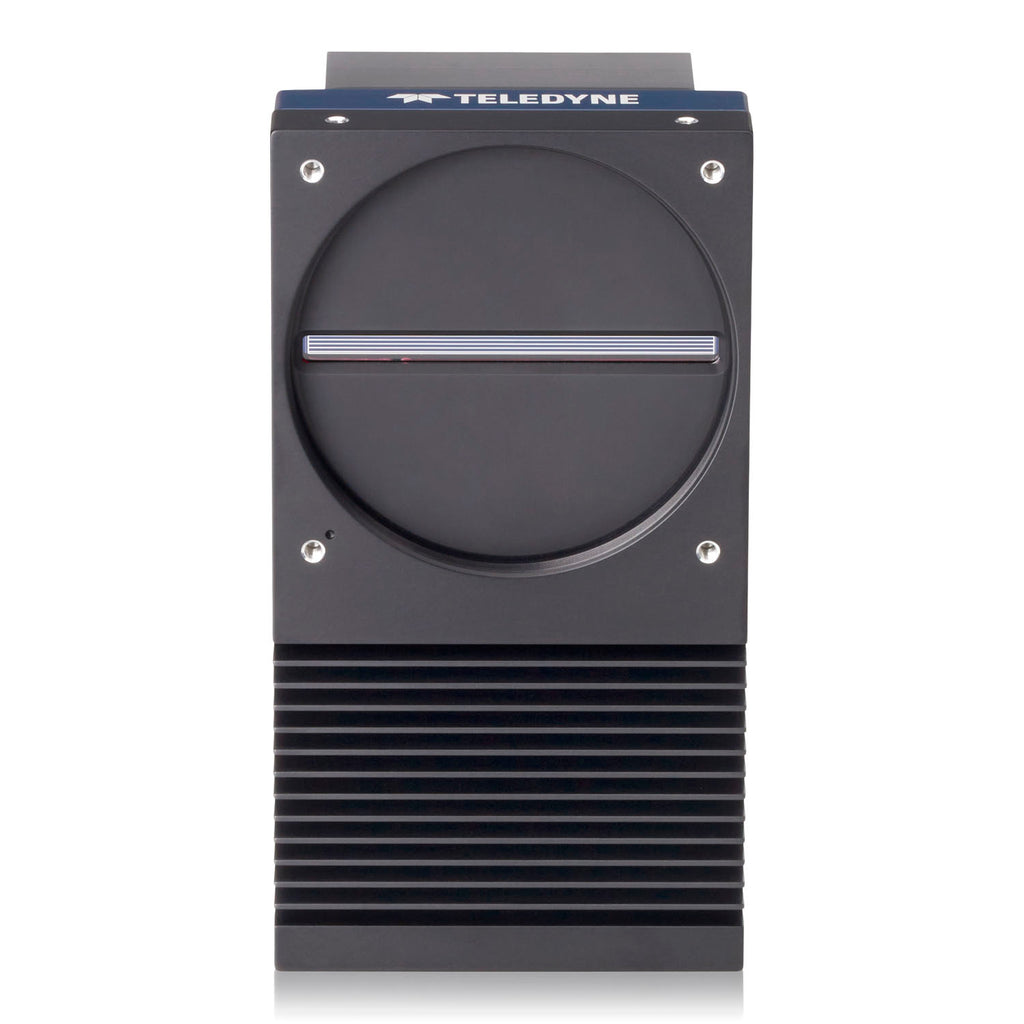

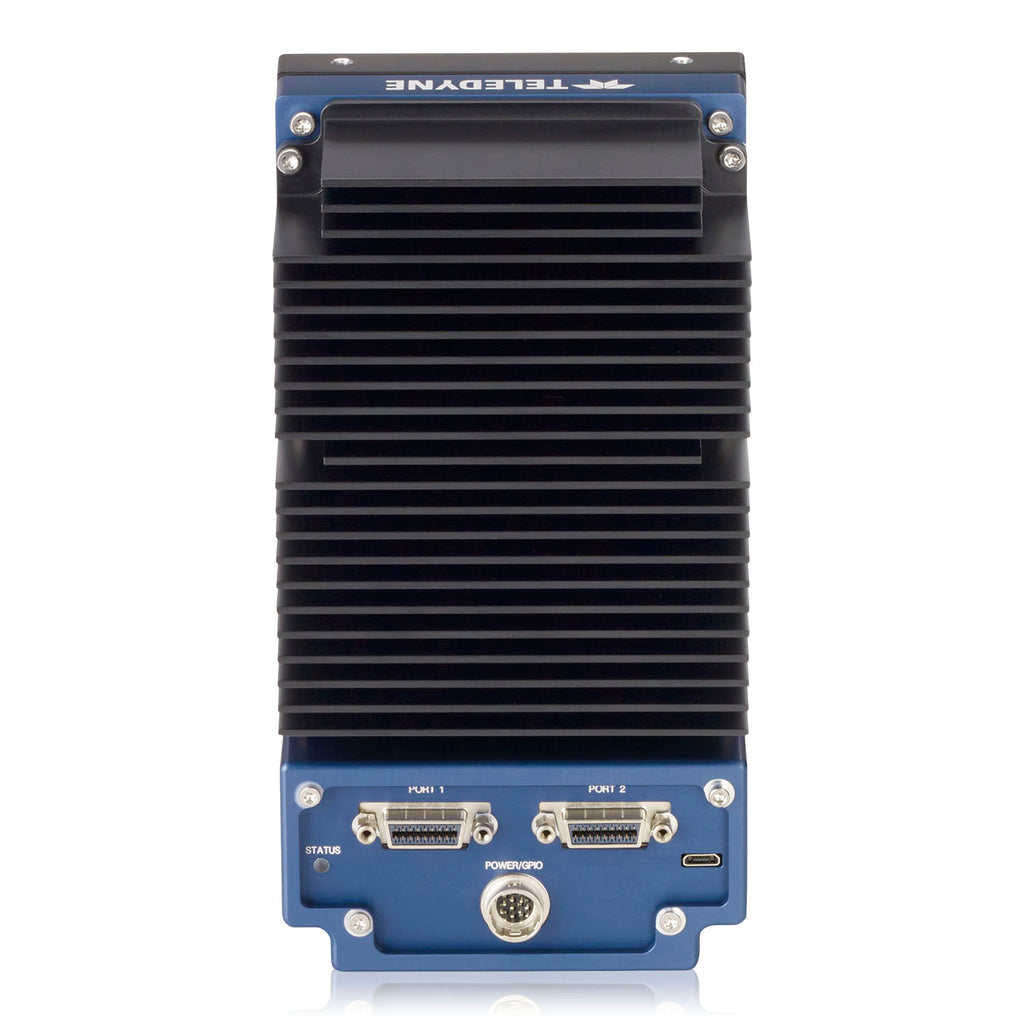

Teledyne Linea HS2 16k 1MHz BSI H2-HM-16K100H-00-B
Drawing on Teledyne’s four decades of industry leading expertise, the all new Linea™ HS2 camera series represents a significant breakthrough in next generation TDI technology. Designed for ultra-high-speed imaging in light starved conditions, it delivers exceptional image quality with 16k/5 µm resolution and boasts an industry leading maximum line rate of 1 Megahertz, or 16 Gigapixels per second data throughput.
Highlighted
- Part Number
- H2-HM-16K100H-00-B
- Resolution
- 16384 x 288 (3 TDI arrays 128 + 128 + 32)
- Max Line Rate
- 1000 kHz
- Pixel Size
- 5
- Sensor Type
- CMOS
- Shutter type
- N/A
- Spectrum
- Mono
- Lens Mount
- M90 x 1 mm
- Synchronization
- Image sync: Free-running, external trigger, CLHS trigger
- Data Interface
- Camera Link HS
- Protection
- IP30
Features
- Acquisition Modes
- Continuous
- Exposure Control
- Hardware trigger, programmable via camera API
- Flash Memory
- Cameras
- Gain Control
- Manual
Performance
- Dynamic Range dB
- 65
- Gain Range
- 1x to 10x
- Peak Wavelength
- 620 nm
- Responsivity
- 700+700+175 (DN8/nJ/cm2)
Physical
- Connector
- CX4 or Hirose 12-pin circular (male)
- Digitization Bit Depth (ADC)
- 8-bit, 10-bit
- Dimensions [W x H x L]
- 97 mm x 180 mm x 76.9 mm
- Mass
- 1.48 kg
- Operating Temperature
- 0°C to 50°C (measured at the front face of the camera)
- Power Consumption [Maximum]
- 56 W
- Power Requirements
- 24 V via GPIO connector
- Storage Humidity
- 15 to 85% (no condensation)
- Storage Temperature
- -20°C to 80°C
Recommended System Configuration
- Port
- CLHS 7 Data Lanes (10.3 Gbps/lane)
