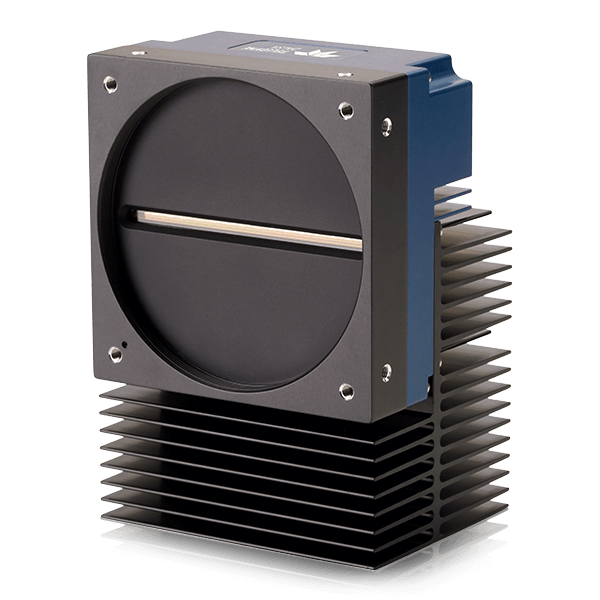

Teledyne Linea HS 9k 400 kHz BSI HL-HM-09k40H-00-B
Based on Teledyne DALSA’s industry leading CMOS TDI technology, the award-winning Linea HS™ cameras are the most advanced TDI products in the marketplace. These backside illumination cameras significantly enhances the sensitivity in particular for UV imaging. The cameras come with the next generation CLHS interface, delivering up to 8.4 Gigapixels per second over a single active optical cable.
Features
- Acquisition Modes
- Continuous
- Gain Control
- Manual
- Synchronization
- Image sync: Free-running, external trigger, CLHS trigger
Performance
- Dynamic Range dB
- 70
- Gain Range
- 1x to 10x
- Max Line Rate
- 400 kHz
- Peak Wavelength
- 620 nm
- Responsivity
- 500+250 (DN8/nJ/cm2)
Physical
- Connector
- CX4 | Hirose 12-pin circular (male)
- Data Interface
- Camera Link HS
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 97 mm x 140.5 mm x 78.6 mm
- Lens Mount
- M90 x 1 mm
- Mass
- 1.2 kg
- Operating Temperature
- 0°C to 60°C (measured at the front face of the camera)
- Optical Filter
- None
- Part Number
- HL-HM-09k40H-00-B
- Pixel Size
- 5
- Power Consumption [Maximum]
- 30 W
- Power Requirements
- 12 to 24 V via GPIO connector
- Protection
- IP30
- Resolution
- 9216 x 192 (2 TDI arrays 128 + 64 )
- Sensor Model
- Teledyne DALSA
- Sensor Shutter Type
- Global shutter
- Sensor Type
- CMOS
- Spectrum
- Mono
- Storage Humidity
- 15 to 85% (no condensation)
- Storage Temperature
- -20°C to 80°C
Recommended System Configuration
- Port
- CLHS 7 Data Lanes (10.3 Gbps/lane)
- Power Sourcing Equipment
- External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (CLHS Frame Grabber)
