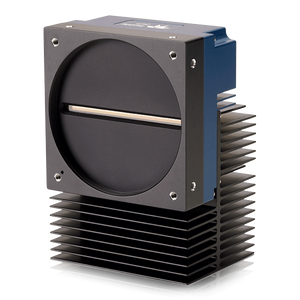

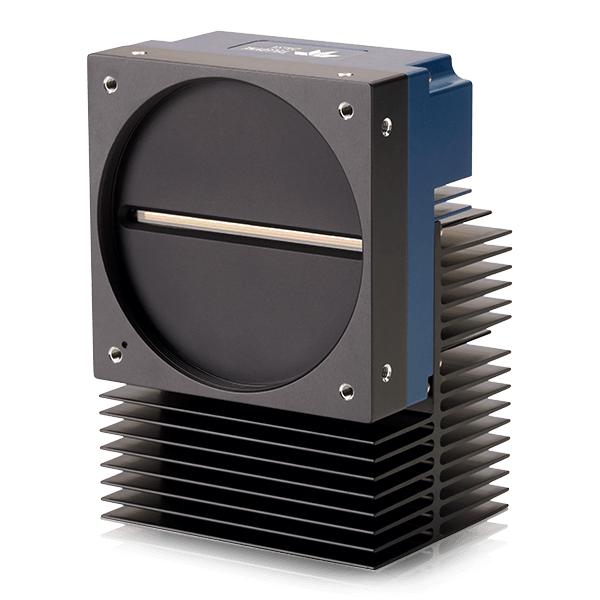

Teledyne Linea HS 16k 300 kHz HL-HM-16K30H-00-R
Based on Teledyne DALSA’s industry leading CMOS TDI technology, the award-winning Linea HS™ cameras are the most advanced TDI products in the marketplace. These backside illumination cameras significantly enhances the sensitivity in particular for UV imaging. The cameras come with the next generation CLHS interface, delivering up to 8.4 Gigapixels per second over a single active optical cable.
Highlighted
- Part Number
- HL-HM-16K30H-00-R
- Resolution
- 16384 x 192 (2 TDI arrays 128 + 64)
- Max Line Rate
- 300 kHz
- Sensor Model
- Teledyne DALSA
- Pixel Size
- 5
- Sensor Type
- CMOS
- Shutter type
- Global shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- M90 x 1 mm
- Synchronization
- Image sync: Free-running, external trigger, CLHS trigger
- Data Interface
- Camera Link HS
- Protection
- IP30
Features
- Acquisition Modes
- Continuous
- Gain Control
- Manual
Performance
- Dynamic Range dB
- 70
- Gain Range
- 1x to 10x
- Peak Wavelength
- 690 nm
Physical
- Connector
- CX4 | Hirose 12-pin circular (male)
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 97 mm x 140.5 mm x 78.6 mm
- Mass
- 1.2 kg
- Operating Temperature
- 0°C to 65°C (measured at the front face of the camera)
- Power Consumption [Maximum]
- 30 W
- Power Requirements
- 12 to 24 V via GPIO connector
- Storage Humidity
- 15 to 85% (no condensation)
- Storage Temperature
- -20°C to 80°C
Recommended System Configuration
- Port
- CLHS 7 Data Lanes (10.3 Gbps/lane)
- Power Sourcing Equipment
- External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (CLHS Frame Grabber)
