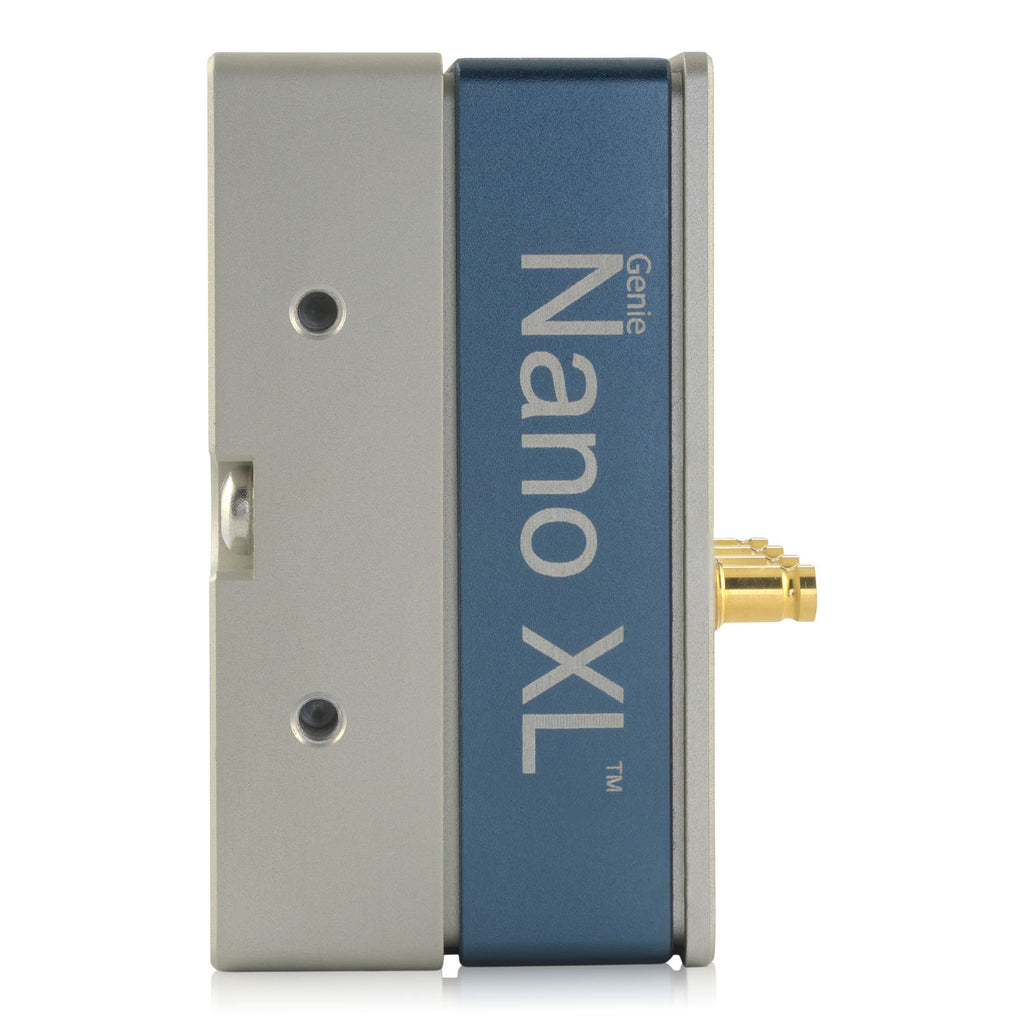

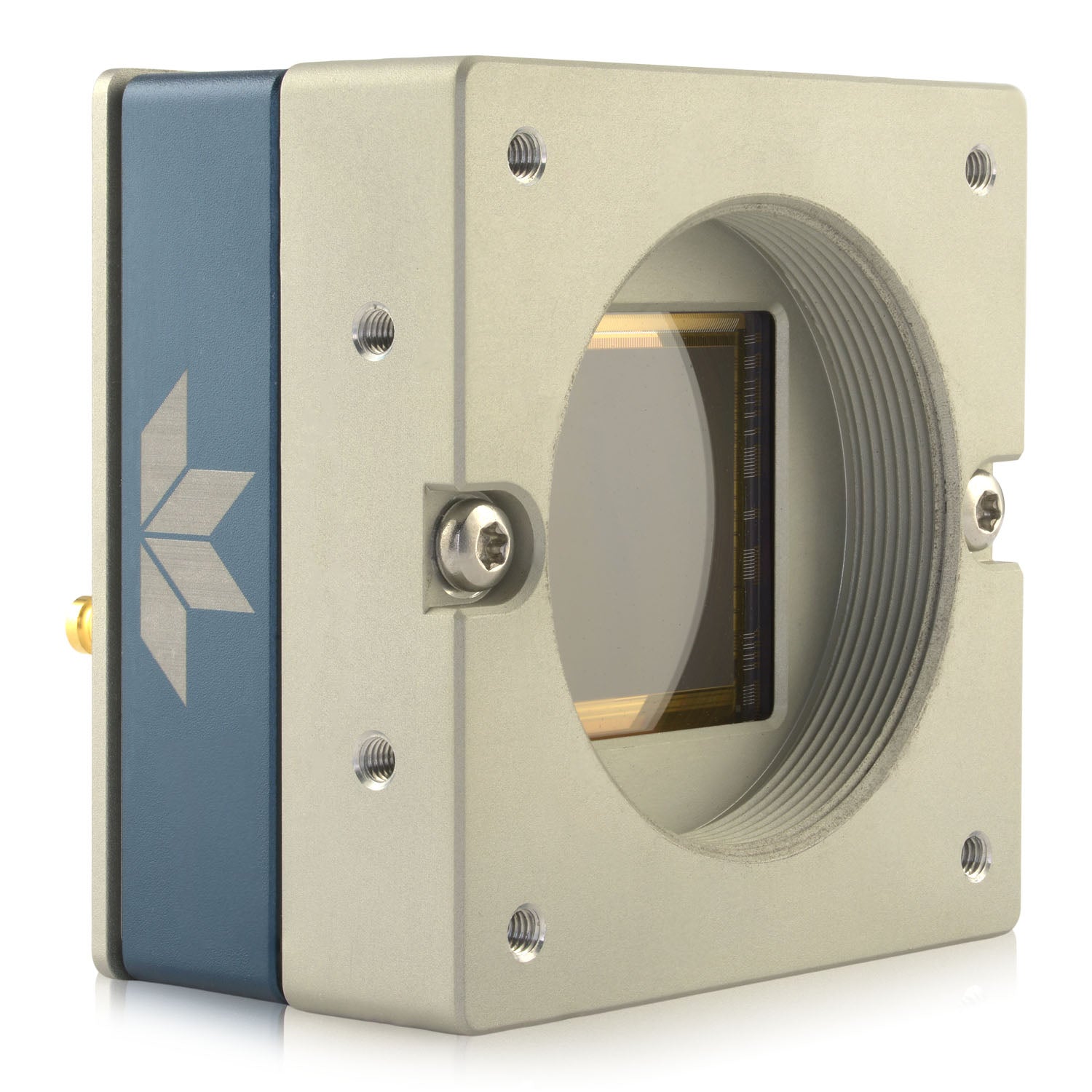

Teledyne Genie Nano-CXP M4090-NIR Model: G3-XM32-M4095

Introducing Genie Nano-CXP, a camera designed for full-throttle performance. Genie Nano-CXP builds on Nano's proven, industry leading reputation and leverages a CoaXPress 6Gbps interface to deliver the maximum throughput from leading-edge high-resolution CMOS image sensors.

Highlighted

Part Number: G3-XM32-M4095

Resolution: 4096 x 4096

Megapixels: 16.7

Max Frame Rate Standard: 120

Sensor Model: onsemi Python16K NIR

Pixel Size: 4.5

Sensor Type: CMOS

Sensor Format: APS-C

Shutter type: Global shutter

Spectrum: Mono, NIR-enhanced

Optical Filter: None

Lens Mount: M42 x 1 mm

Synchronization: Image sync: Free-running, software trigger, CXP trigger

Data Interface: CoaXPress (6.125 Gbps)

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame

Exposure Control: Programmable via camera API, or controlled via FrameGrabber

Exposure Range: 34 µs to 10 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual

Image Processing: Lookup table, pixel correction and lens shading correction

Partial Image Modes: Pixel binning, ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

Performance

Dynamic Range dB: 55.2

Gain Range: 1x to 16x

QE (Mono): 55 @640 nm

Saturation Capacity (e-): 12000

Temporal Dark Noise (Read Noise): 14

Physical

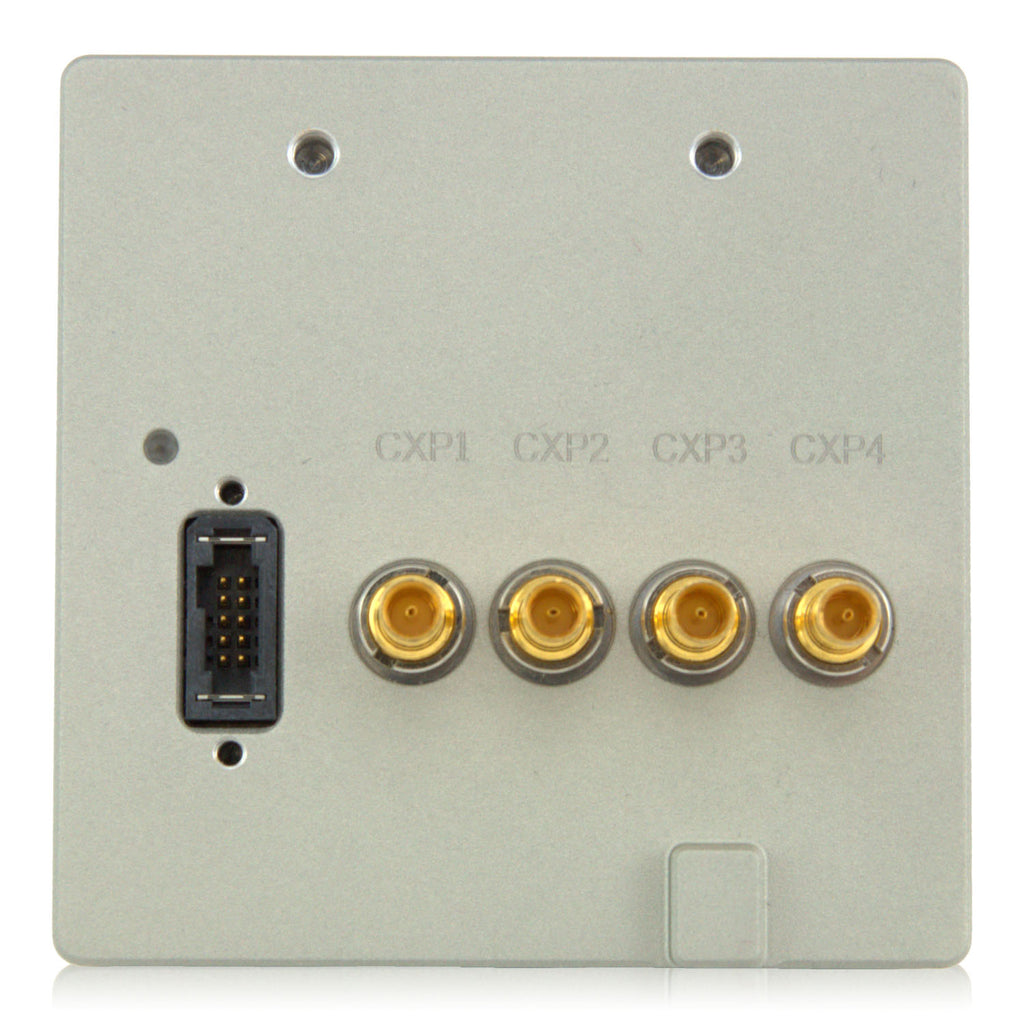

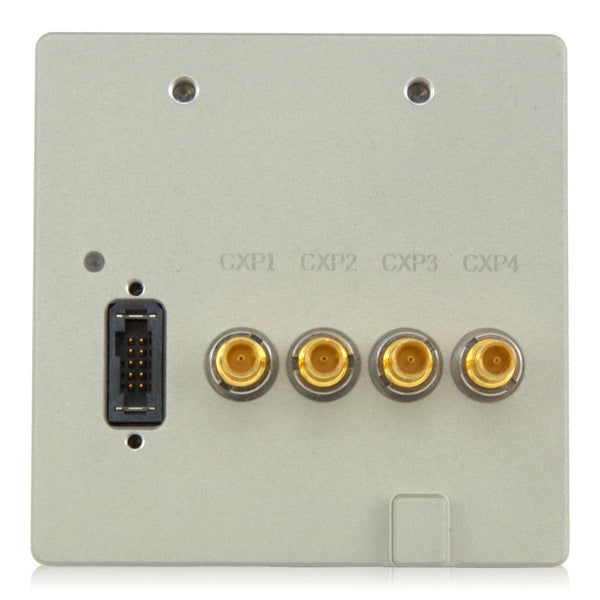

Connector: DIN 1.0/2.3 | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit, 10-bit

Dimensions [W x H x L]: 58 mm x 59 mm x 32 mm

GPIO: SAMTEC TFM-105 type

Mass: 163 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20 to 60 °C

Power Consumption [Maximum]: 13 W maximum GPIO

Power Requirements: Power over CoaXPress (PoCXP) requires 2 × DIN connectors or 12 to 24 V via GPIO

Storage Humidity: 20 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: CXP6 x 4 Lanes

Power Sourcing Equipment: PoCXP or External Camera Power Supply
