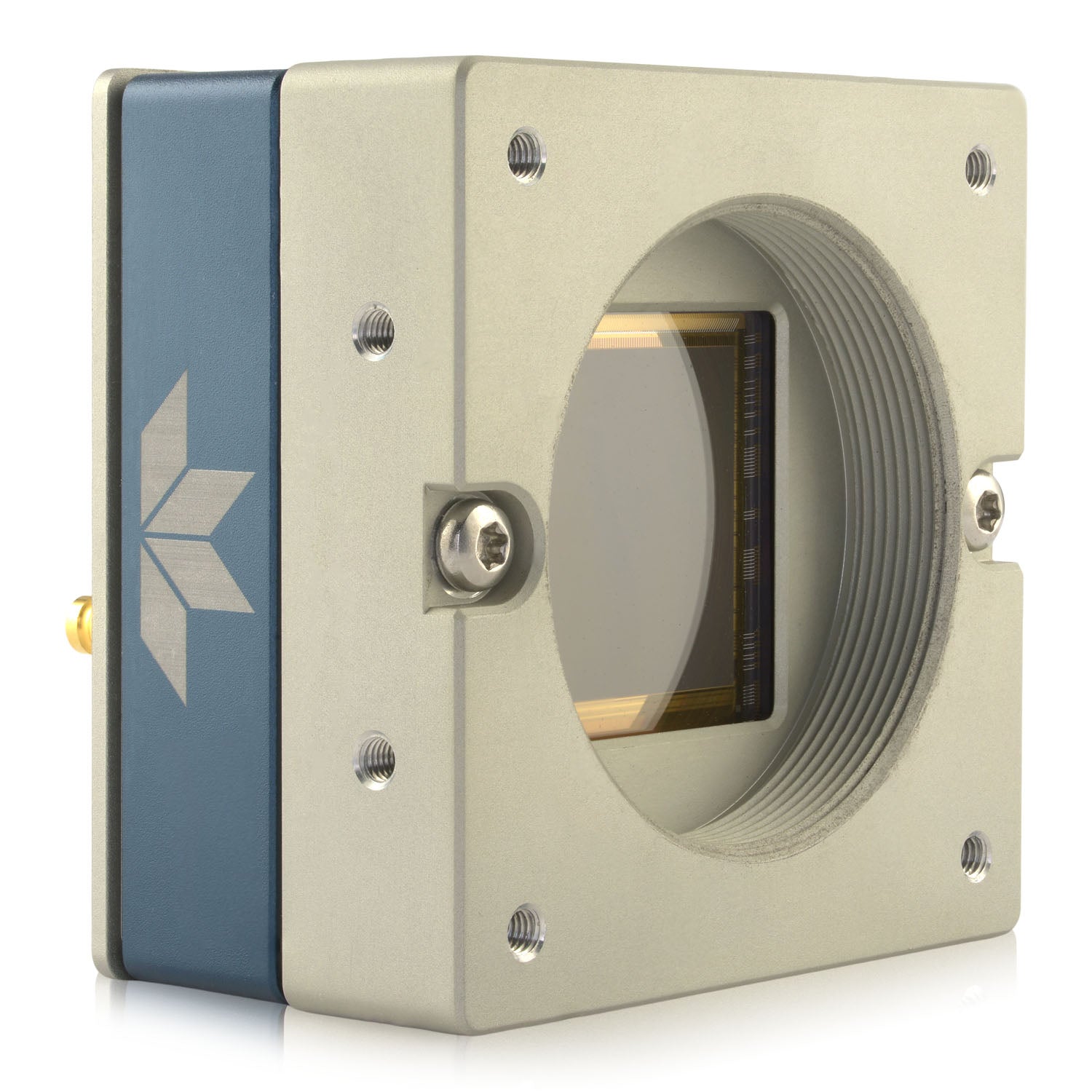

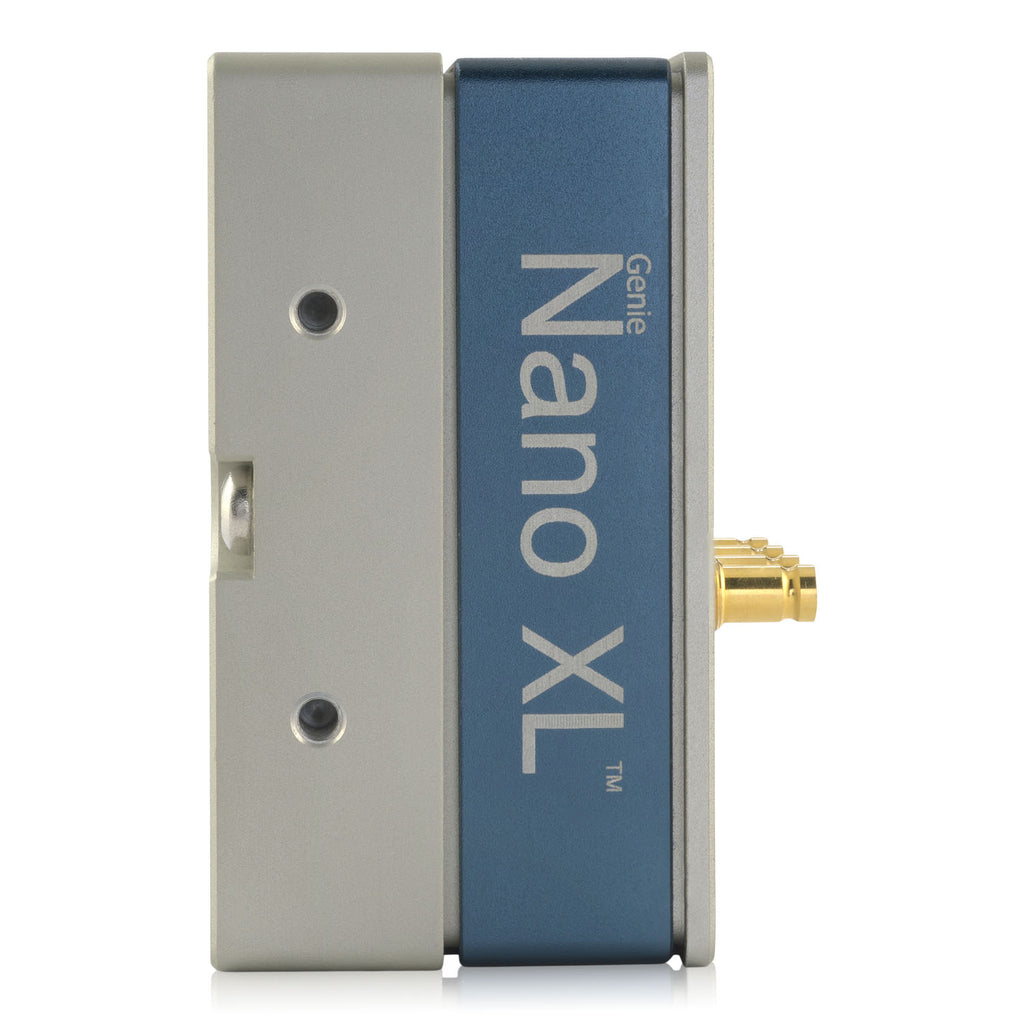

Teledyne Genie Nano-CXP C8200 Model: G3-XC01-C8205

Introducing Genie Nano-CXP, a camera designed for full-throttle performance. Genie Nano-CXP builds on Nano's proven, industry leading reputation and leverages a CoaXPress 6Gbps interface to deliver the maximum throughput from leading-edge high-resolution CMOS image sensors.

Highlighted

Part Number: G3-XC01-C8205

Resolution: 8192 x 8192

Megapixels: 67.1

Max Frame Rate Standard: 30

Sensor Model: Teledyne e2v Emerald 67M

Pixel Size: 2.5

Sensor Type: CMOS

Sensor Format: APS-C

Shutter type: Global shutter

Spectrum: Color

Optical Filter: None

Lens Mount: M42 x 1 mm

Synchronization: Image sync: Free-running, software trigger, external trigger, CXP trigger

Data Interface: CoaXPress (6.125 Gbps)

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame

Exposure Control: Hardware trigger, programmable via camera API, or controlled via FrameGrabber

Exposure Range: 14 µs to 10 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual

Image Processing: Lookup table, pixel correction and lens shading correction

Partial Image Modes: ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

Performance

Dynamic Range dB: 62

Gain Range: 1x to 4x

QE Blue: 50 @450 nm

QE Green: 59 @530 nm

QE Red: 39 @605 nm

Saturation Capacity (e-): 6000

Temporal Dark Noise (Read Noise): 4.5

Physical

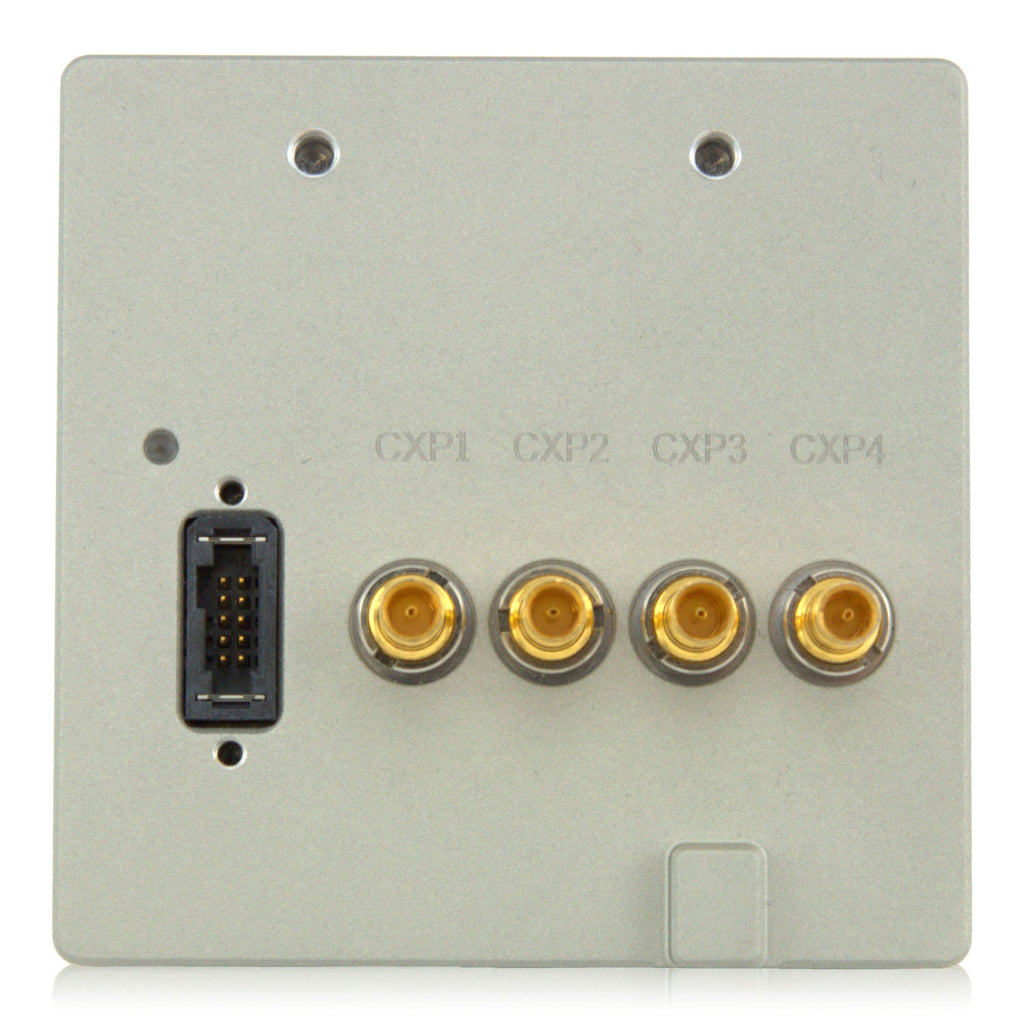

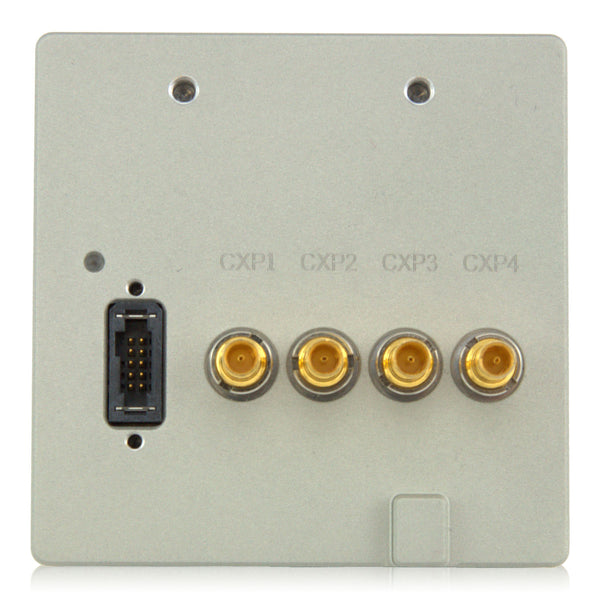

Connector: DIN 1.0/2.3 | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit, 10-bit

Dimensions [W x H x L]: 51 mm x 59 mm x 32 mm

GPIO: SAMTEC TFM-105 type

Mass: 163 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20 to 60 °C

Opto-isolated I/O Ports: 2 input, 2 output

Power Consumption [Maximum]: 13 W maximum GPIO

Power Requirements: Power over CoaXPress (PoCXP) requires 2 × DIN connectors or 12 to 24 V via GPIO

Storage Humidity: 20 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: CXP6 x 4 Lanes

Power Sourcing Equipment: PoCXP or External Camera Power Supply
