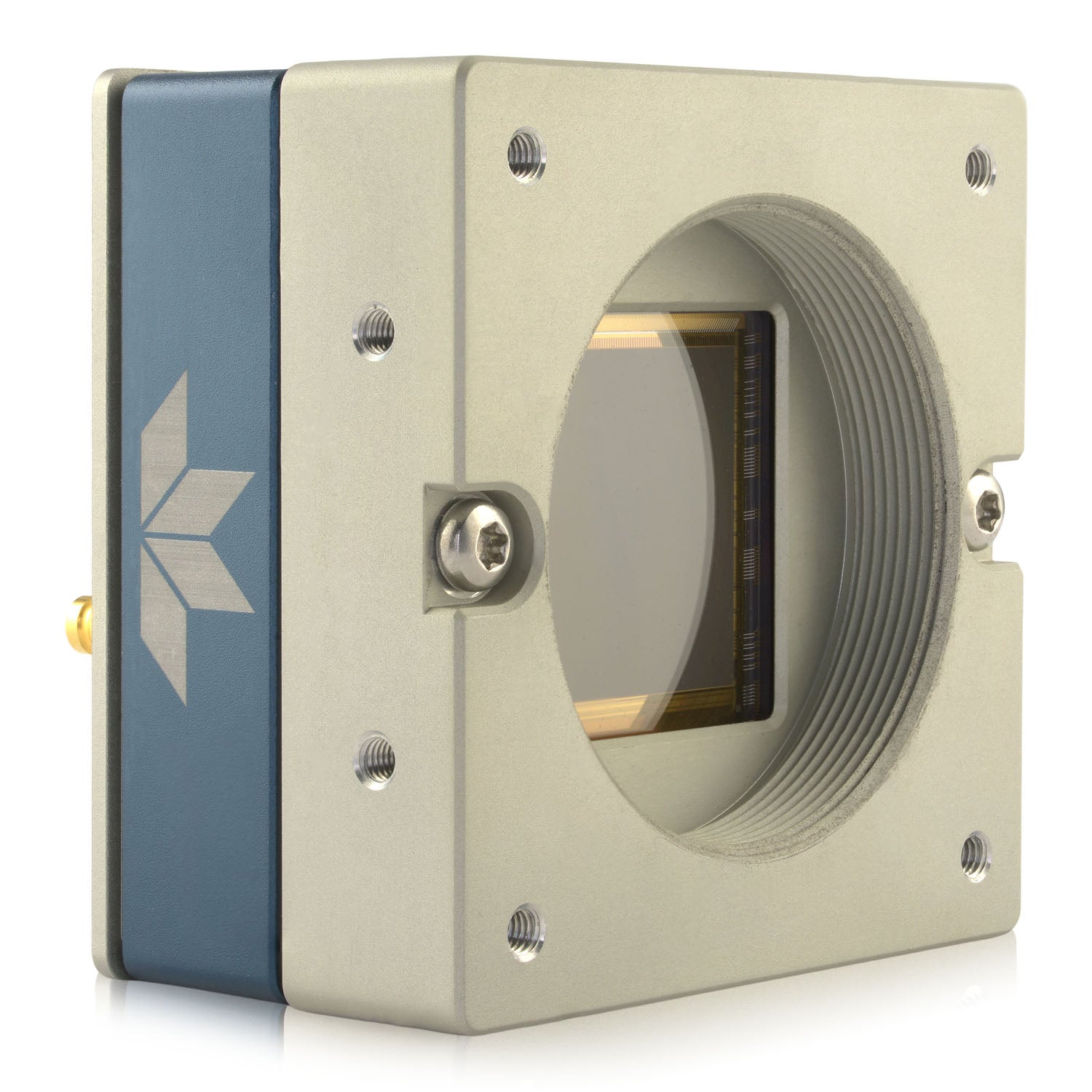

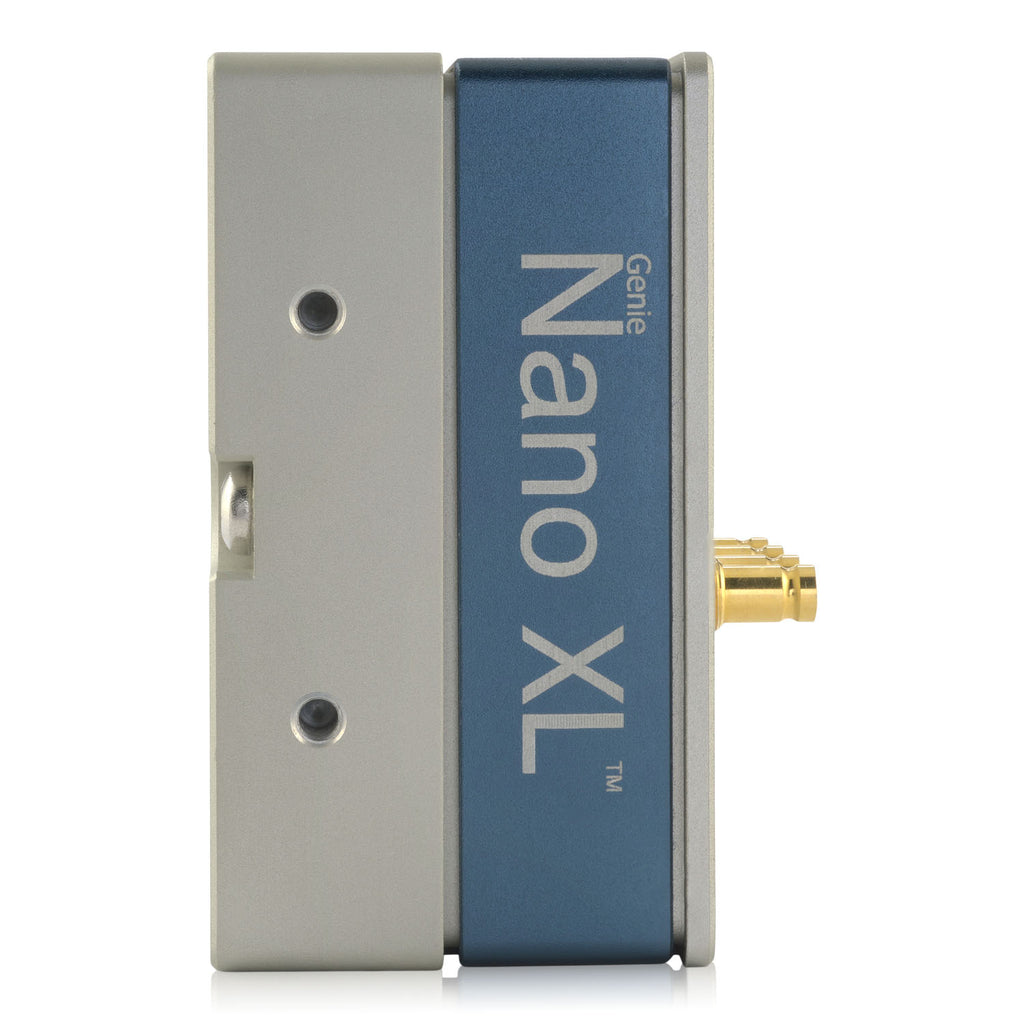

Teledyne Genie Nano-CXP C6200 Model: G3-XC01-C6205
Introducing Genie Nano-CXP, a camera designed for full-throttle performance. Genie Nano-CXP builds on Nano's proven, industry leading reputation and leverages a CoaXPress 6Gbps interface to deliver the maximum throughput from leading-edge high-resolution CMOS image sensors.
Highlighted
- Part Number
- G3-XC01-C6205
- Resolution
- 6144 x 6144
- Megapixels
- 37.7
- Max Frame Rate Standard
- 43
- Sensor Model
- Teledyne e2v Emerald 36M
- Pixel Size
- 2.5
- Sensor Type
- CMOS
- Sensor Format
- 1.4"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- None
- Lens Mount
- M42 x 1 mm
- Synchronization
- Image sync: Free-running, software trigger, external trigger, CXP trigger
- Data Interface
- CoaXPress (6.125 Gbps)
- Protection
- IP40
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Programmable via camera API, or controlled via FrameGrabber
- Exposure Range
- 14 µs to 10 seconds
- Flash Memory
- 32 MB non-volatile memory
- Gain Control
- Manual
- Image Processing
- Lookup table, pixel correction and lens shading correction
- Partial Image Modes
- ROI, Muti-ROI
- User Sets
- 2 user configuration sets for custom camera settings
Performance
- Dynamic Range dB
- 62
- Gain Range
- 1x to 4x
- QE Blue
- 50 @450 nm
- QE Green
- 59 @530 nm
- QE Red
- 39 @605 nm
- Saturation Capacity (e-)
- 6000
- Temporal Dark Noise (Read Noise)
- 4.5
Physical

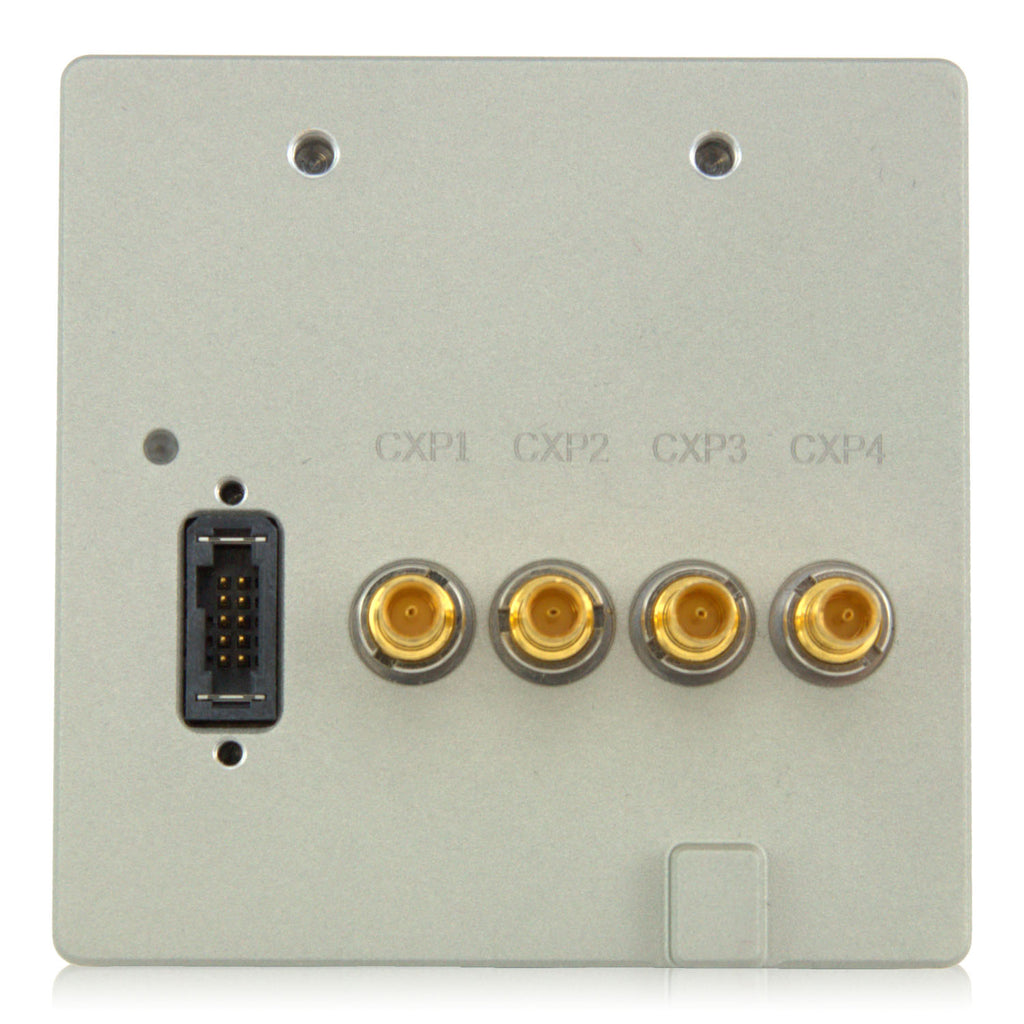

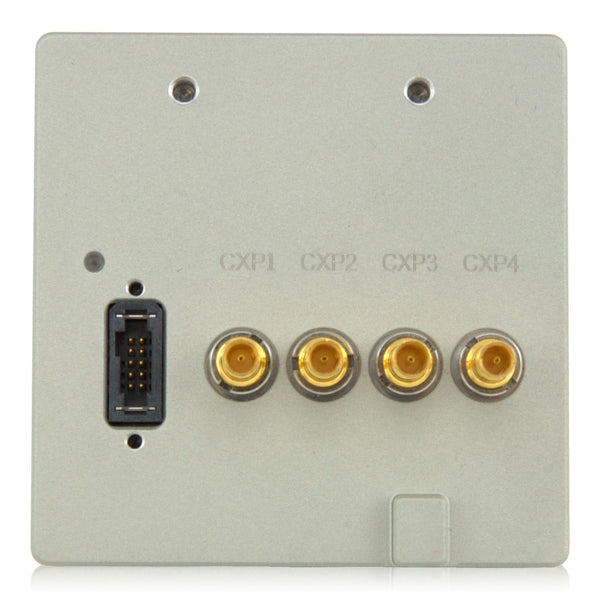

- Connector
- DIN 1.0/2.3 | SAMTEC TFM-105 type
- Digitization Bit Depth (ADC)
- 8-bit, 10-bit
- Dimensions [W x H x L]
- 50 mm x 59 mm x 32 mm
- GPIO
- SAMTEC TFM-105 type
- Mass
- 163 g
- Operating Humidity
- 10 to 80% (no condensation)
- Operating Temperature
- -20 to 60 °C
- Opto-isolated I/O Ports
- 2 input, 2 output
- Power Consumption [Maximum]
- 13 W maximum GPIO
- Power Requirements
- Power over CoaXPress (PoCXP) requires 2 × DIN connectors or 12 to 24 V via GPIO
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -40°C to 80°C
Recommended System Configuration
- Port
- CXP6 x 4 Lanes
- Power Sourcing Equipment
- PoCXP or External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (CXP6 Frame Grabber)
