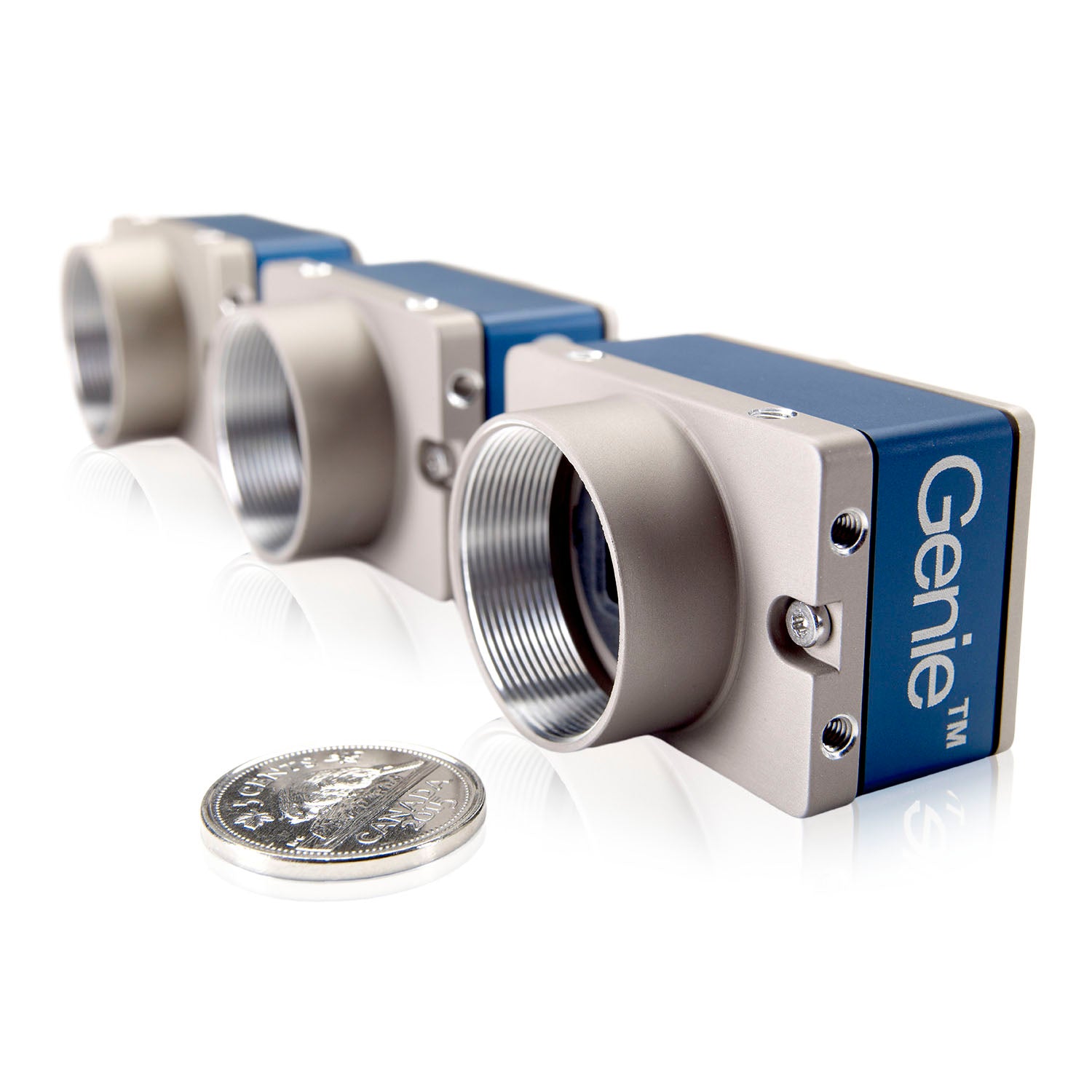

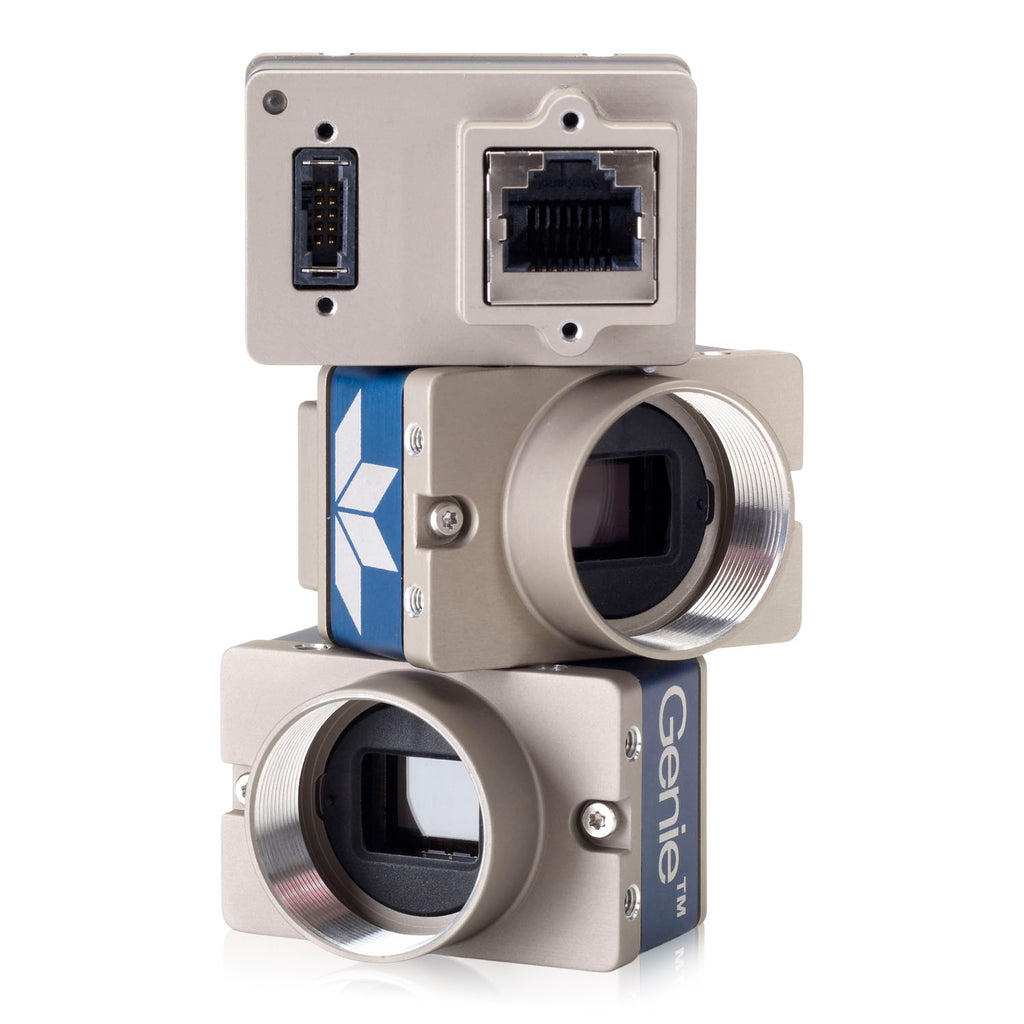

Teledyne Genie Nano C700 Color Model: G3-GC10-C0700

Introducing Genie Nano, a CMOS GigE camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, a three-year warranty and an unmatched feature set — all at an incredible price.

Highlighted

Part Number: G3-GC10-C0700

Resolution: 728 x 544

Megapixels: 0.3

Max Frame Rate Standard: 308

Max Frame Rate Burst: 311

Max Frame Rate Turbodrive/Lossless Compression: 310

Sensor Model: Sony IMX287

Pixel Size: 6.9

Sensor Type: CMOS

Sensor Format: 1/2.9"

Shutter type: Global shutter

Spectrum: Color

Optical Filter: None

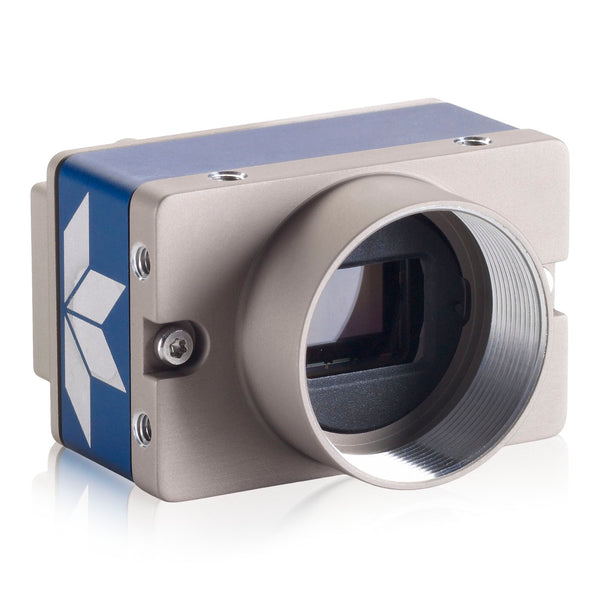

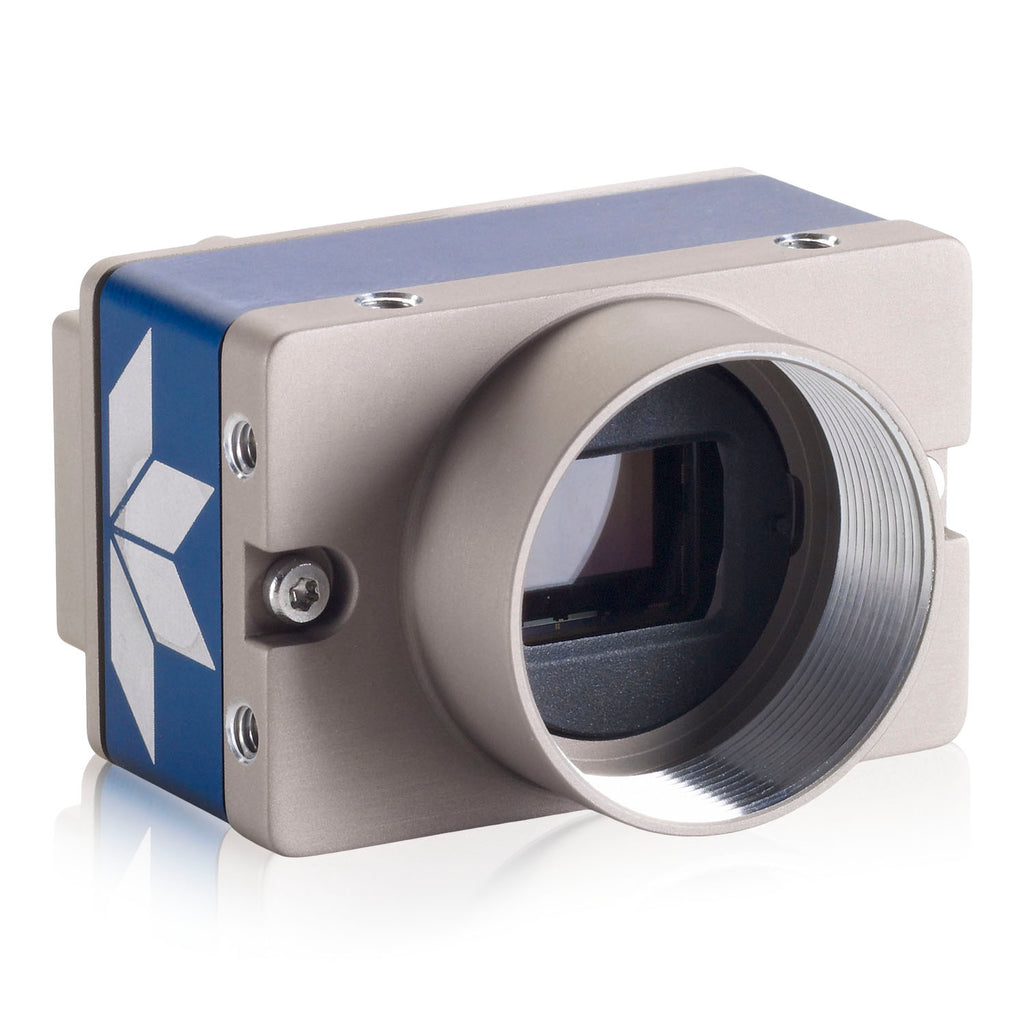

Lens Mount: C-mount

Synchronization: Image sync: Free-running, software & hardware trigger, action command, PTP modulo | Timestamp Sync: PTP (IEE1588)

Data Interface: Gigabit Ethernet 1 Gbps

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame / Multi Frame

Exposure Control: Hardware trigger, programmable via camera API, automatic

Exposure Range: 19.7 µs to 30 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual, automatic (AGC)

Image Buffer: 90 MB

Image Processing: Image Compression (TurboDrive), gamma, lookup table, auto white balance (color conversion available with RGB Firmware)

Partial Image Modes: ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

White Balance: Manual, automatic (AWB)

Performance

Absolute Sensitivity Threshold (y): 6.5

Dynamic Range dB: 74

Gain Range: 1x to 251x (0 dB to 48 dB)

QE Blue: 52 @470 nm

QE Green: 61 @525 nm

QE Red: 48 @630 nm

Saturation Capacity (e-): 22000

Temporal Dark Noise (Read Noise): 3.8

Physical

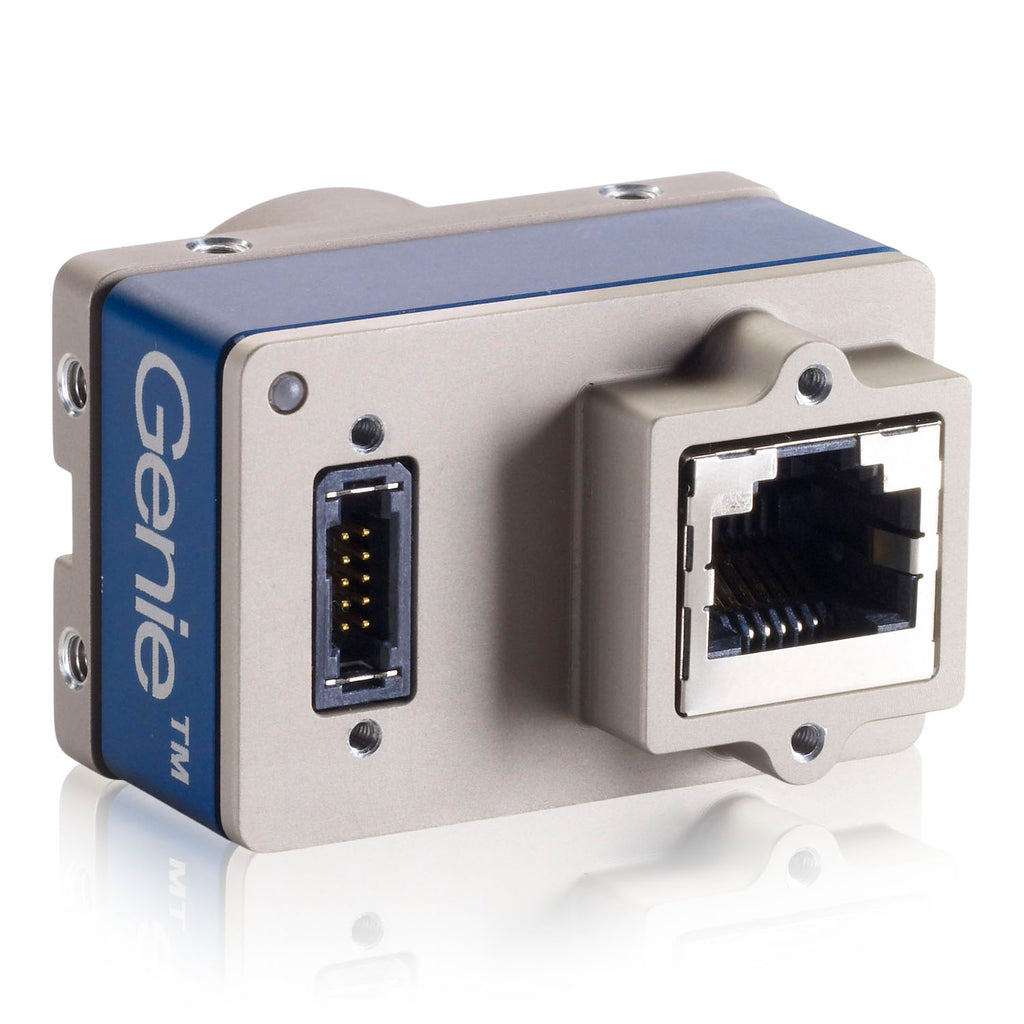

Connector: RJ45 (vertical locking) | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit, 12-bit

Dimensions [W x H x L]: 44 mm x 29 mm x 21 mm

Mass: 46 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20 to 65 °C

Opto-isolated I/O Ports: 2 input, 2 output

Power Consumption [Maximum]: 3.6 W to 4.6 W (12 V)

Power Requirements: Power over Ethernet (PoE), or 9.5 to 24 V via GPIO connector

Storage Humidity: 20 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: Gigabit Ethernet Port

Power Sourcing Equipment: IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
