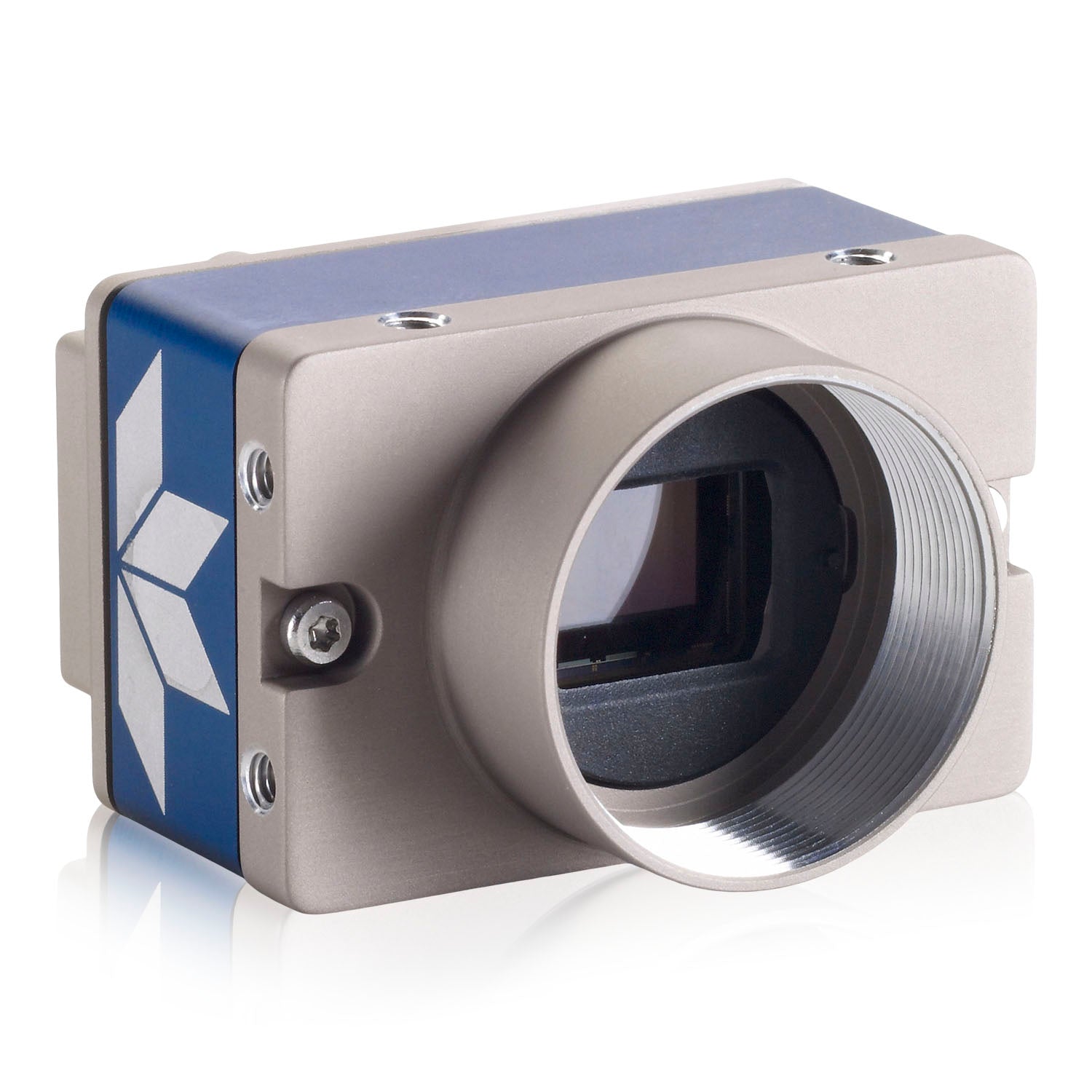

Teledyne Genie Nano C4020 Color Model: G3-GC11-C4020
Genie Nano, a CMOS GigE camera. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature.
Highlighted
- Part Number
- G3-GC11-C4020
- Resolution
- 4112 x 3008
- Megapixels
- 12.3
- Max Frame Rate Standard
- 9.7
- Max Frame Rate Burst
- 21
- Max Frame Rate Turbodrive/Lossless Compression
- 20
- Sensor Model
- Sony IMX304
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 1.1"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- None
- Lens Mount
- C-mount
- Synchronization
- Image sync: Free-running, software & hardware trigger, action command, PTP modulo | Timestamp Sync: PTP (IEE1588)
- Data Interface
- Gigabit Ethernet 1 Gbps
- Protection
- IP40
Features
- Acquisition Modes
- Continuous / Single Frame / Multi Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Exposure Range
- 29.2 µs to 30 seconds
- Flash Memory
- 32 MB non-volatile memory
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 220 MB
- Image Processing
- Image Compression (TurboDrive), gamma, lookup table, auto white balance (color conversion available with RGB Firmware)
- Partial Image Modes
- ROI, Muti-ROI
- User Sets
- 2 user configuration sets for custom camera settings
- White Balance
- Manual, automatic (AWB)
Performance
- Absolute Sensitivity Threshold (y)
- 4.7
- Dynamic Range dB
- 76
- Gain Range
- 1x to 251x (0 dB to 48 dB)
- QE Blue
- 49 @470 nm
- QE Green
- 59 @525 nm
- QE Red
- 46 @630 nm
- Saturation Capacity (e-)
- 10400
- Temporal Dark Noise (Read Noise)
- 2.3
Physical
- Connector
- RJ45 (vertical locking) | SAMTEC TFM-105 type
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 44 mm x 29 mm x 21 mm
- Mass
- 46 g
- Operating Humidity
- 10 to 80% (no condensation)
- Operating Temperature
- -20 to 65 °C
- Opto-isolated I/O Ports
- 2 input, 2 output
- Power Consumption [Maximum]
- 3.6 W to 4.6 W (12 V)
- Power Requirements
- Power over Ethernet (PoE), or 9.5 to 24 V via GPIO connector
- Storage Humidity
- 20 to 80% (no condensation)
- Storage Temperature
- -40°C to 80°C
Recommended System Configuration
- Port
- Gigabit Ethernet Port
- Power Sourcing Equipment
- IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (GigE)
