Teledyne Genie Nano 5G C5420 Color Model: G5-GC31-C5425

Introducing the Genie Nano-5GigE, a GigE Vision CMOS area scan camera that redefines high performance. Genie Nano starts with industry leading image CMOS sensors from 3.2 to 45 megapixel and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set — all at an incredible price. Teledyne DALSA’s proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates — often 150% or higher.

Highlighted

Part Number: G5-GC31-C5425

Resolution: 5420 x 5420

Megapixels: 29.3

Max Frame Rate Standard: 19

Max Frame Rate Burst: 31

Max Frame Rate Turbodrive/Lossless Compression: 31

Sensor Model: onsemi XGS30000

Pixel Size: 3.2

Sensor Type: CMOS

Sensor Format: APS-C

Shutter type: Global shutter

Spectrum: Color

Optical Filter: None

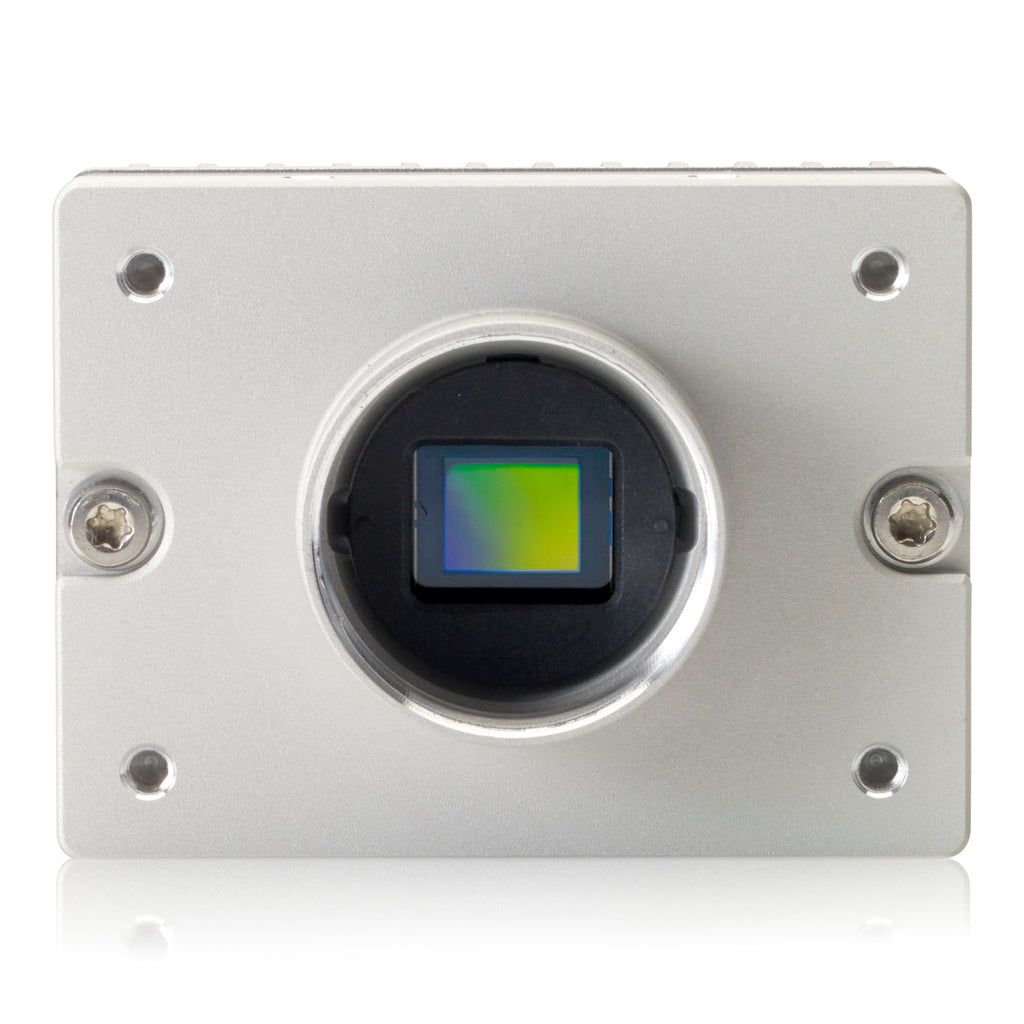

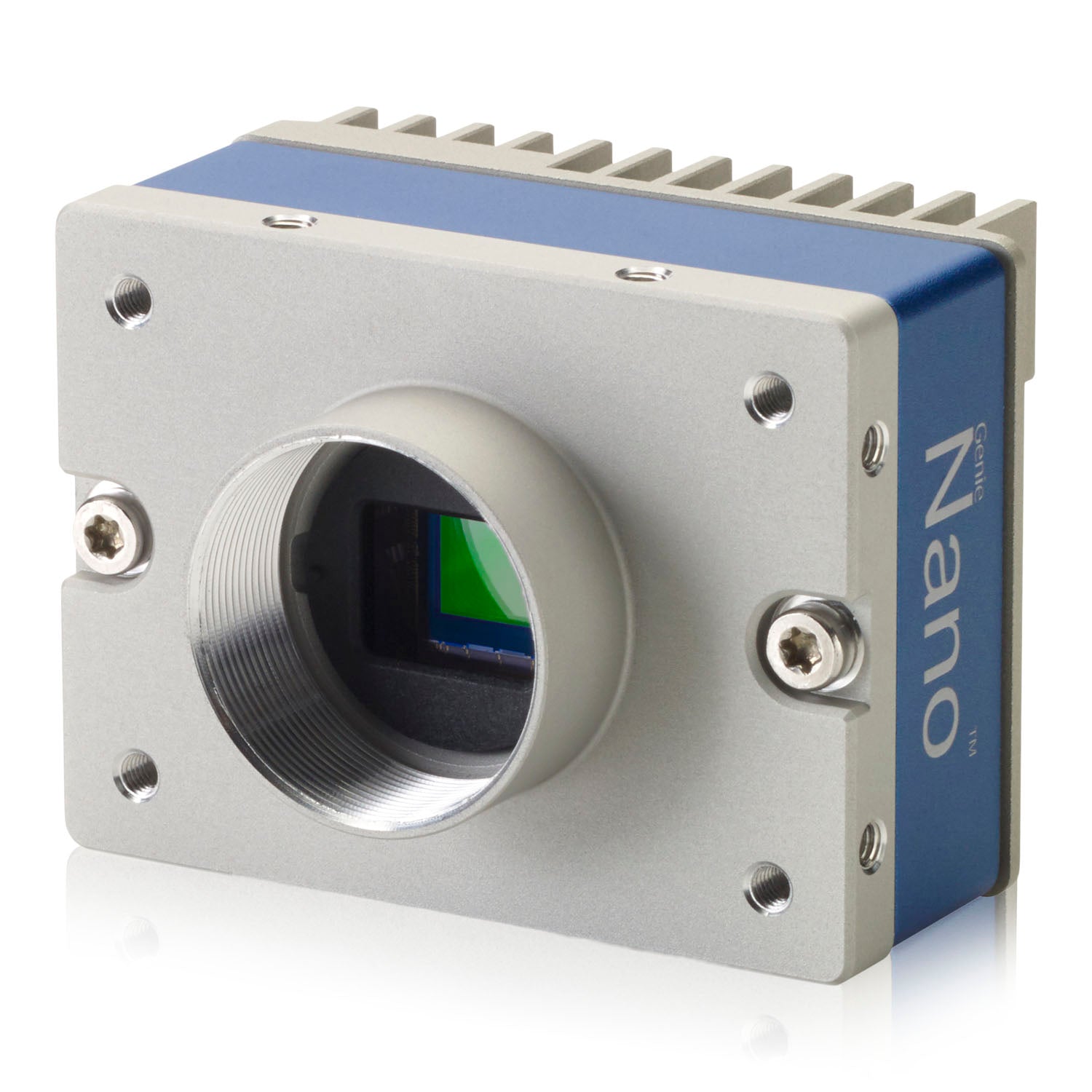

Lens Mount: M42 x 1 mm

Synchronization: Image sync: Free-running, software & hardware trigger, action command, PTP modulo | Timestamp Sync: PTP (IEE1588)

Data Interface: Gigabit Ethernet 5 Gbps / 2.5 Gbps / 1 Gbps

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame / Multi Frame

Exposure Control: Hardware trigger, programmable via camera API, automatic

Exposure Range: 40.0 µs to 16.0 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual, automatic (AGC)

Image Buffer: 430 MB

Image Processing: Image Compression (TurboDrive), lookup table, pixel correction and lens shading correction

Partial Image Modes: Pixel binning, ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

White Balance: Manual, automatic (AWB)

Performance

Dynamic Range dB: 66.1

Gain Range: 1x to 4x

QE Blue: 48 @455 nm

QE Green: 48 @540 nm

QE Red: 60 @610 nm

Saturation Capacity (e-): 10000

Temporal Dark Noise (Read Noise): 4.5

Physical

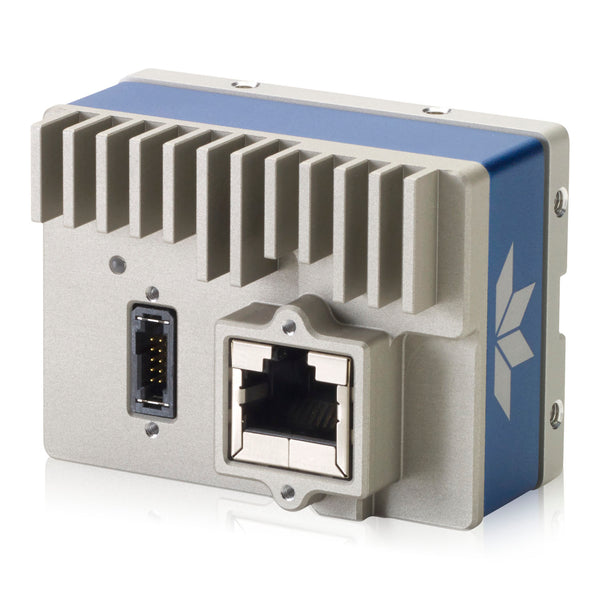

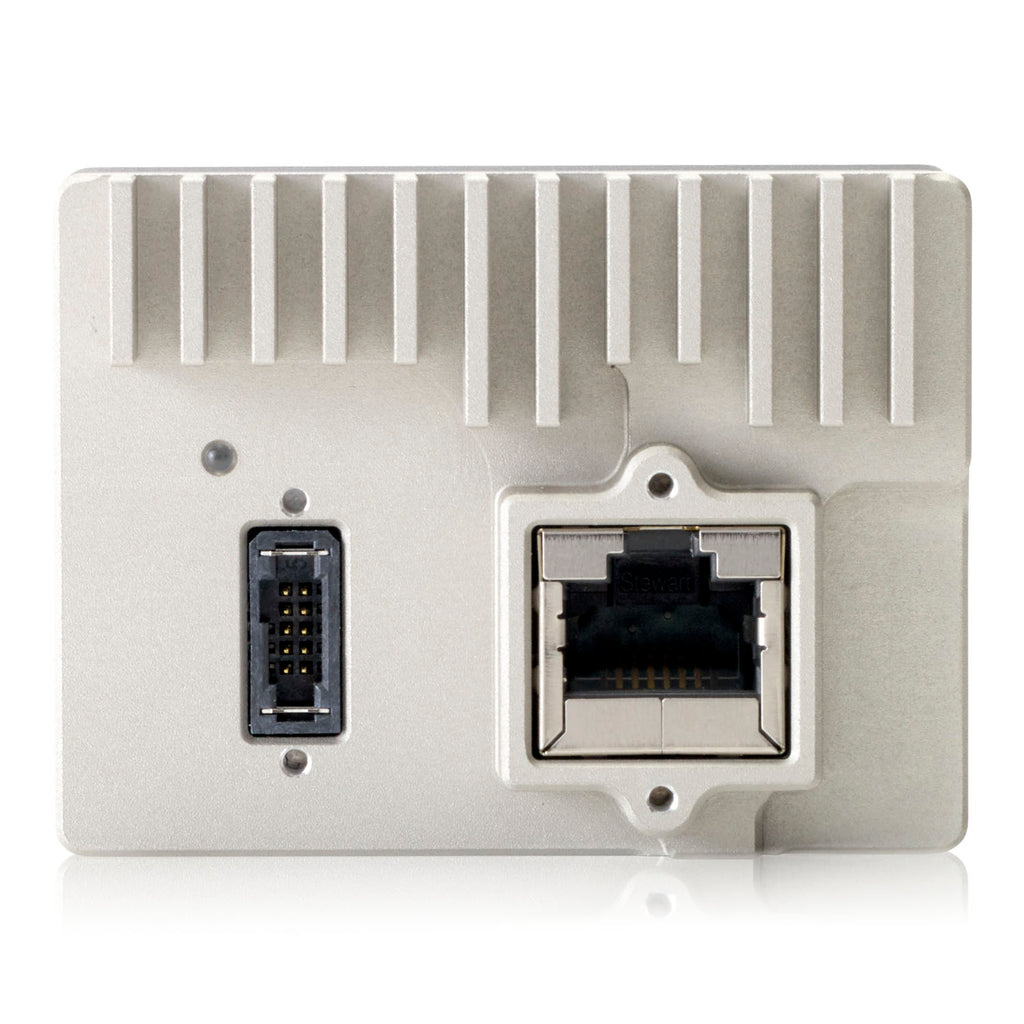

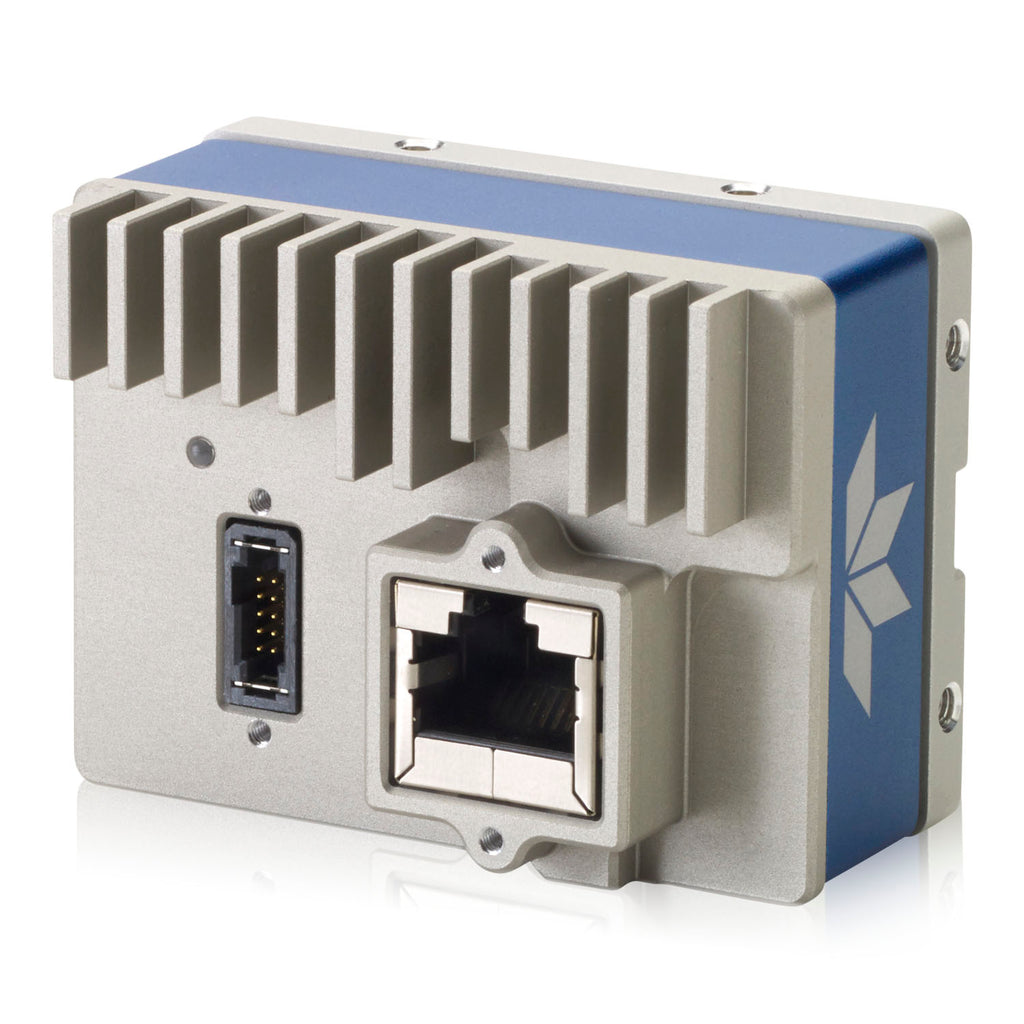

Connector: RJ45 (vertical locking) | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit Factory Firmware, Optional 12-bit Firmware

Dimensions [W x H x L]: 59 mm x 59 mm x 41 mm

Mass: 183 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20°C to 65°C (measured at the front face of the camera)

Opto-isolated I/O Ports: 2 input, 3 output

Power Consumption [Maximum]: 11.4 W maximum PoE / 10.3 W maximum GPIO

Power Requirements: Power Over Ethernet (PoE) or 10 to 36 V via GPIO connector

Serial Port: (RS-232 available on Demand)

Storage Humidity: 10 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: 5Gigabit Ethernet Port

Power Sourcing Equipment: IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
