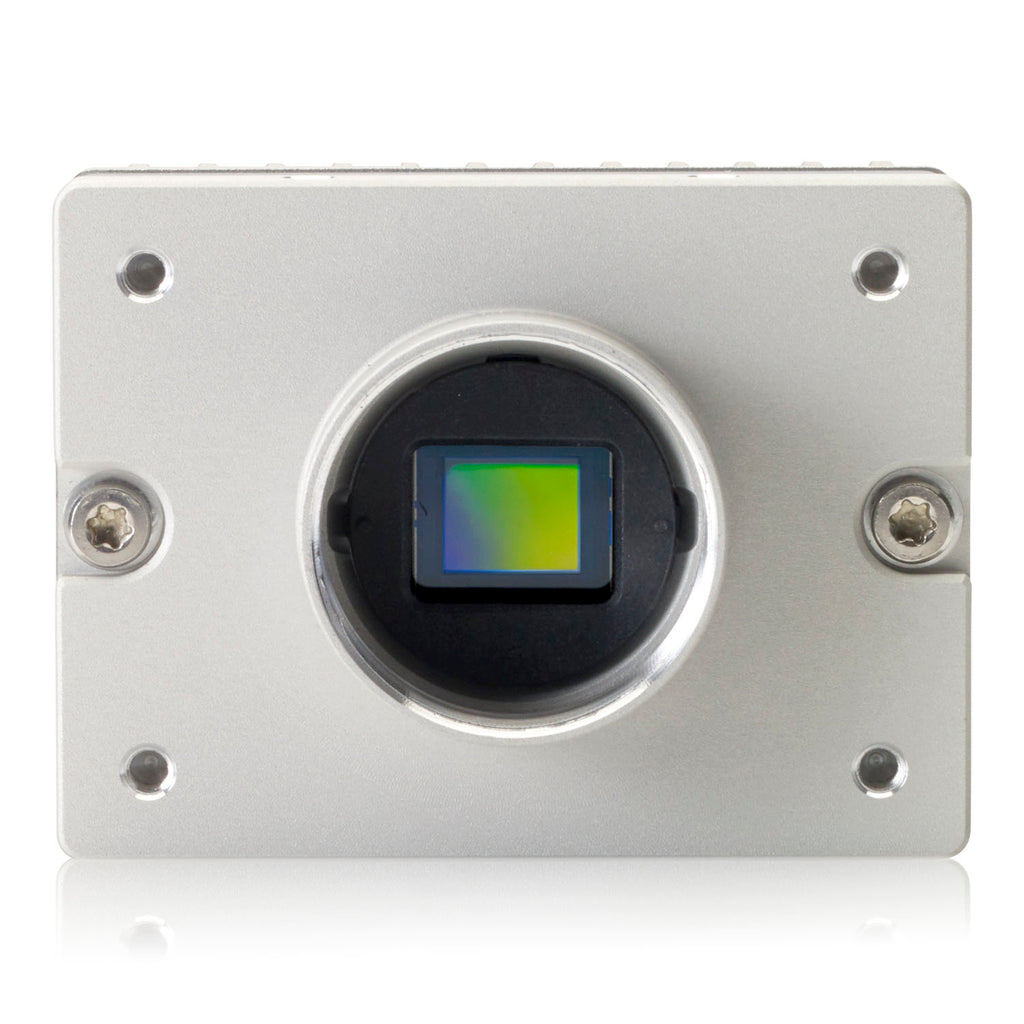

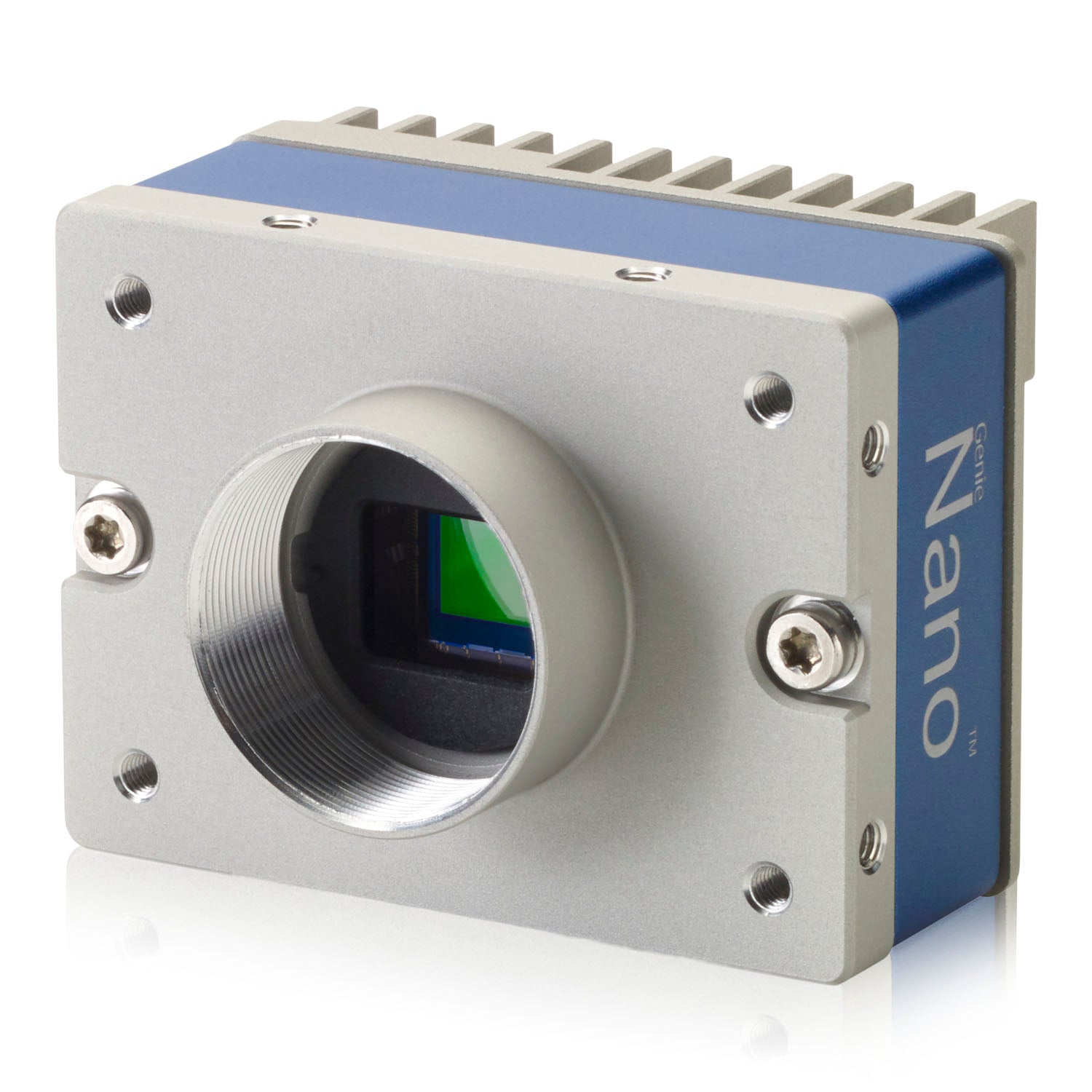

Teledyne Genie Nano 5G C2050 Color Model: G5-GC30-C2050

Introducing the Genie Nano-5GigE, a GigE Vision CMOS area scan camera that redefines high performance. Genie Nano starts with industry leading image CMOS sensors from 3.2 to 45 megapixel and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set — all at an incredible price. Teledyne DALSA’s proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates — often 150% or higher.

Highlighted

Part Number: G5-GC30-C2050

Resolution: 2064 x 1544

Megapixels: 3.2

Max Frame Rate Standard: 187

Max Frame Rate Burst: 187

Max Frame Rate Turbodrive/Lossless Compression: 187

Sensor Model: Sony IMX252

Pixel Size: 3.45

Sensor Type: CMOS

Sensor Format: 1/1.8"

Shutter type: Global shutter

Spectrum: Color

Optical Filter: None

Lens Mount: C-mount

Synchronization: Image sync: Free-running, software & hardware trigger, action command, PTP modulo | Timestamp Sync: PTP (IEE1588)

Data Interface: Gigabit Ethernet 5 Gbps / 2.5 Gbps / 1 Gbps

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame / Multi Frame

Exposure Control: Hardware trigger, programmable via camera API, automatic

Exposure Range: 17.0 µs to 16.0 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual, automatic (AGC)

Image Buffer: 430 MB

Image Processing: Image Compression (TurboDrive), lookup table, pixel correction and lens shading correction (RGB firmware available)

Partial Image Modes: Pixel binning, ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

White Balance: Manual, automatic (AWB)

Performance

Absolute Sensitivity Threshold (y): 4.7

Dynamic Range dB: 73

Gain Range: 1x to 251x (0 dB to 48 dB)

QE Blue: 49 @470 nm

QE Green: 59 @525 nm

QE Red: 46 @630 nm

Saturation Capacity (e-): 10400

Temporal Dark Noise (Read Noise): 2.3

Physical

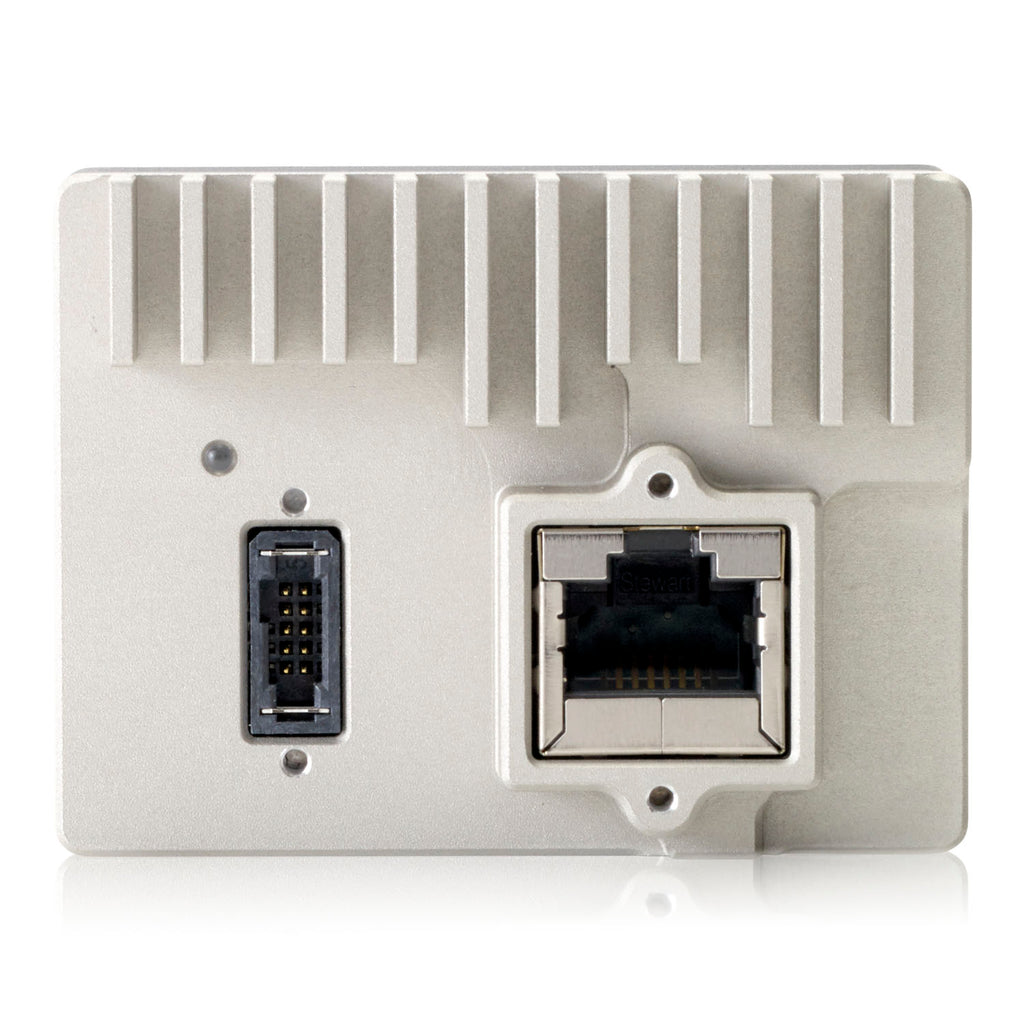

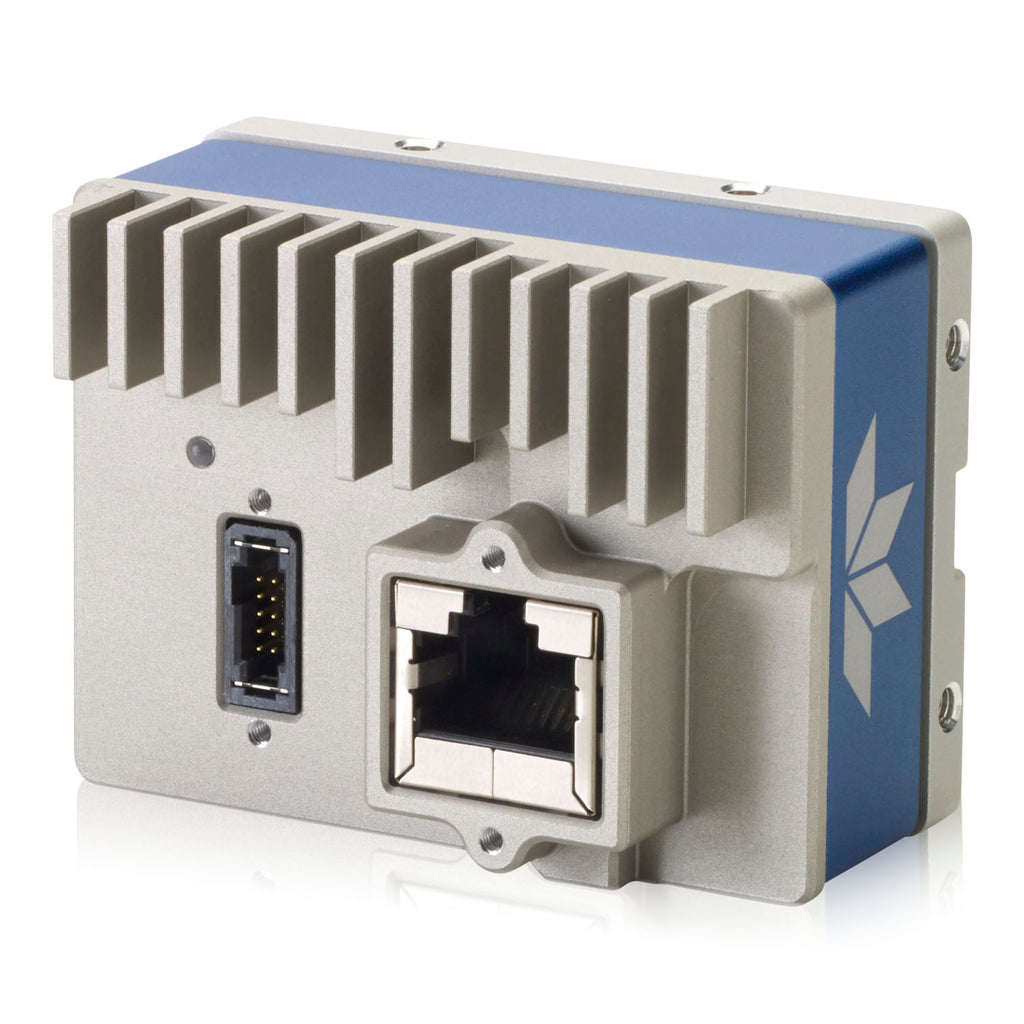

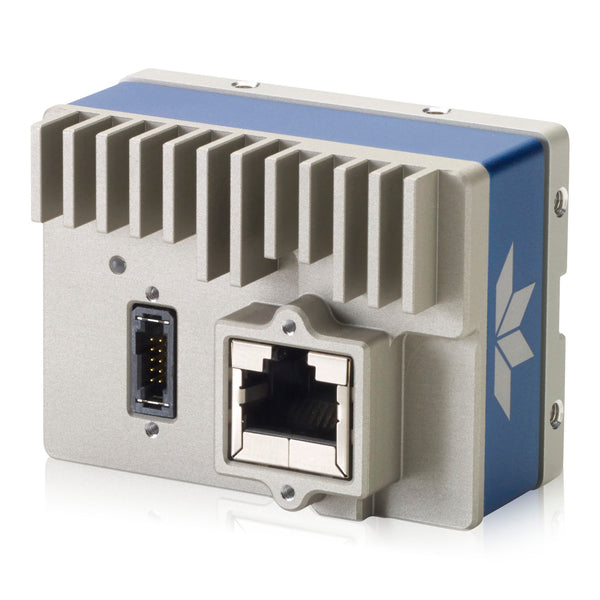

Connector: RJ45 (vertical locking) | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit Factory Firmware, Optional 12-bit Firmware

Dimensions [W x H x L]: 59 mm x 44 mm x 42 mm

Mass: 124 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20°C to 65°C (measured at the front face of the camera)

Opto-isolated I/O Ports: 2 input, 3 output

Power Consumption [Maximum]: 10.0 W maximum PoE / 9.4 W maximum GPIO

Power Requirements: Power Over Ethernet (PoE) or 10 to 36 V via GPIO connector

Serial Port: (RS-232 available on Demand)

Storage Humidity: 10 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: 5Gigabit Ethernet Port

Power Sourcing Equipment: IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
