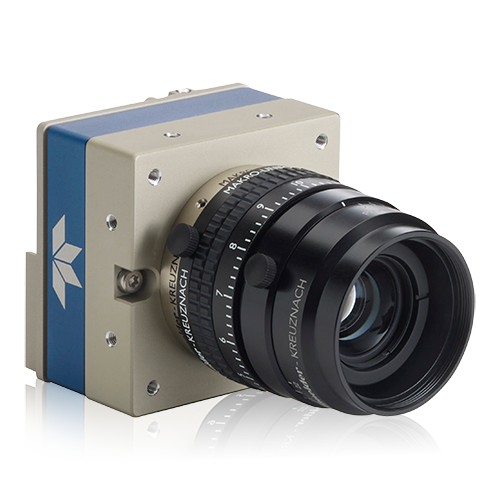

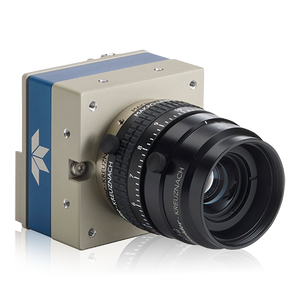

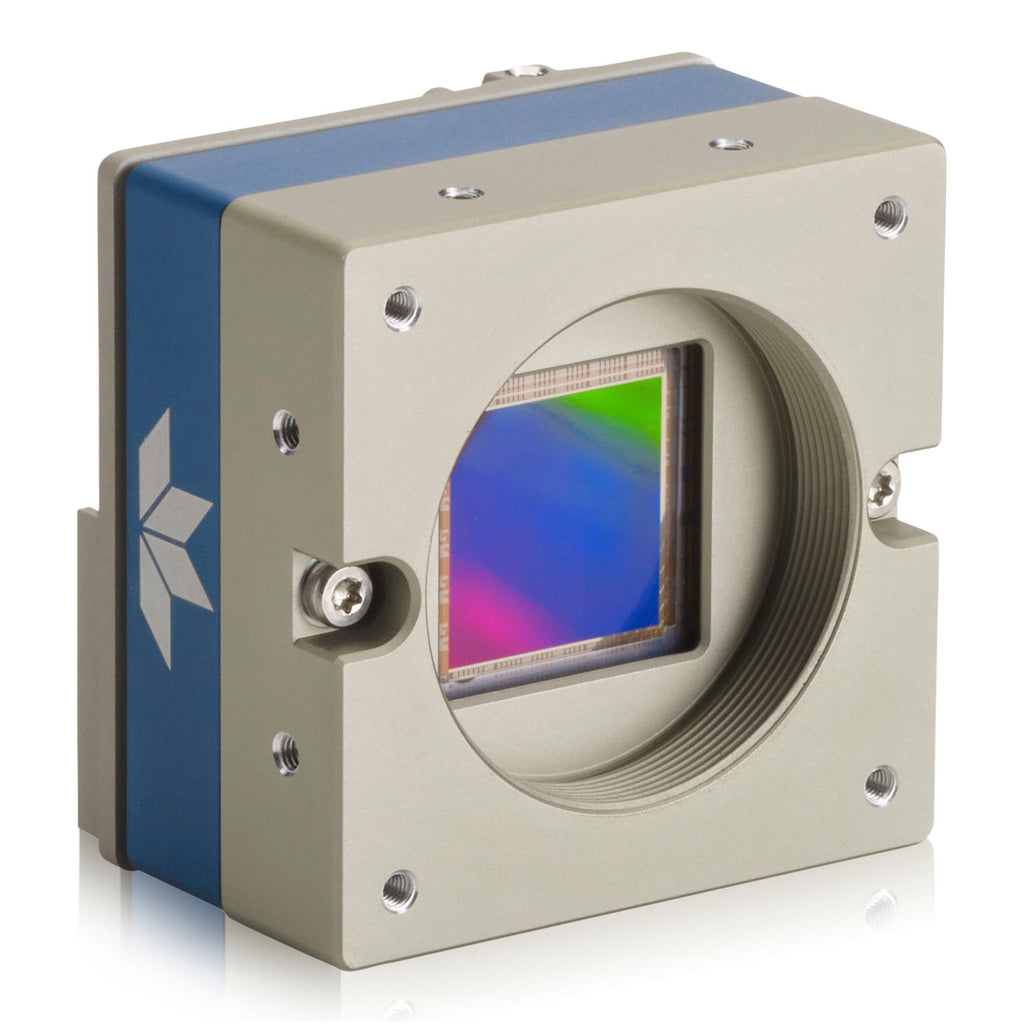

Teledyne Genie Nano-10GigE-M8200 Model: G6-GM31-M8205

Engineered for imaging applications that require next generation speeds and resolutions, the all-new Genie Nano-10GigE series is an easy replacement for gigabit ethernet cameras built into current vision systems that rely on the existing GigE Vision interface standard. The new Genie Nano-10GigE models feature the brand new 10Gbps (10GBASE-T) link speed, delivering next generation speeds without compromise.

Highlighted

Part Number: G6-GM31-M8205

Resolution: 8192 x 8192

Megapixels: 67.1

Max Frame Rate Standard: 13.8

Max Frame Rate Burst: 13.8

Sensor Model: Teledyne e2v Emerald 67M

Pixel Size: 2.5

Sensor Type: CMOS

Sensor Format: APS-C

Shutter type: Global shutter

Spectrum: Mono

Optical Filter: None

Lens Mount: M42 x 1 mm

Synchronization: Image sync: Free-running, software & hardware trigger, action command, PTP modulo | Timestamp Sync: PTP (IEE1588)

Data Interface: Gigabit Ethernet 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame / Multi Frame

Exposure Control: Hardware trigger, programmable via camera API, automatic

Exposure Range: 14 µs to 30 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual, automatic (AGC)

Image Buffer: 430 MB

Image Processing: Lookup table, pixel correction and lens shading correction

Partial Image Modes: Pixel binning, ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

Performance

Dynamic Range dB: 66

Gain Range: 1x to 4x

QE (Mono): 58 @520 nm

Saturation Capacity (e-): 6000

Temporal Dark Noise (Read Noise): 4.5

Physical

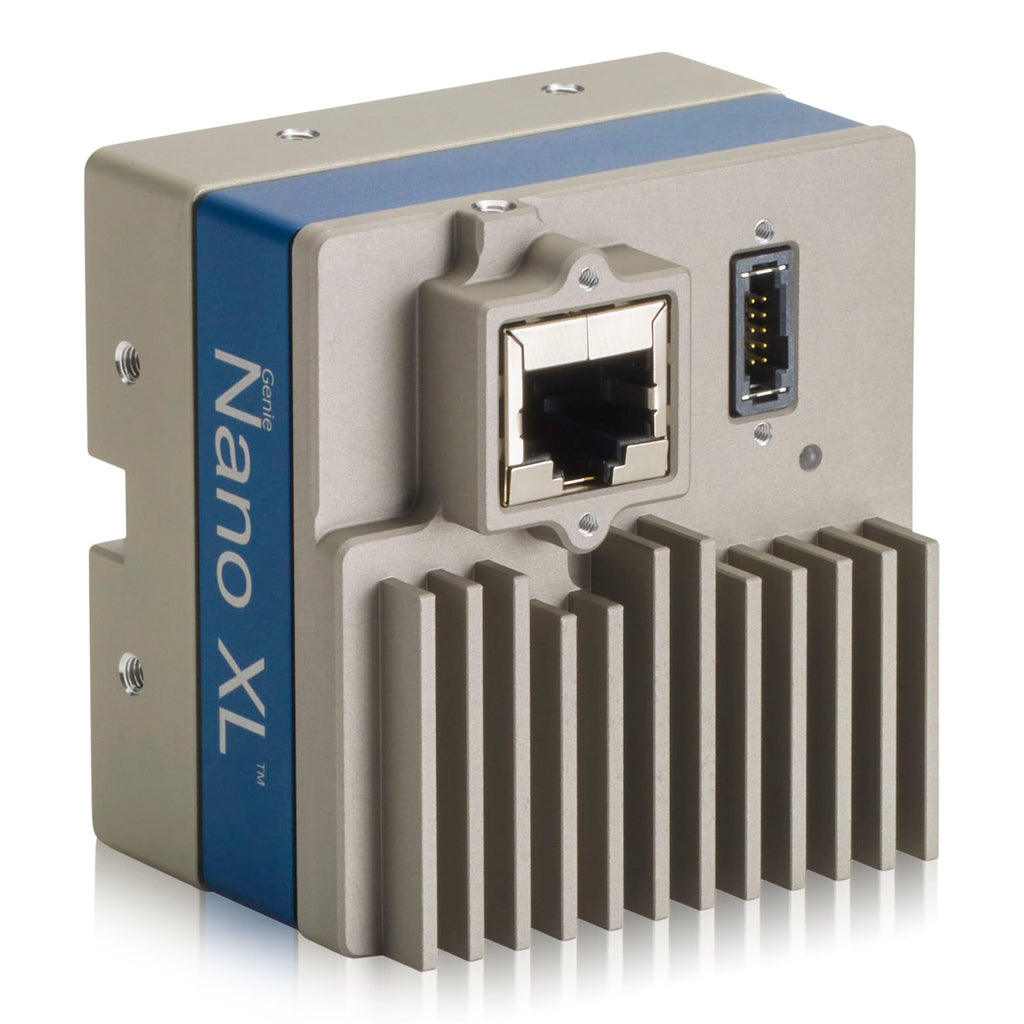

Connector: RJ45 (vertical locking) | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit Factory Firmware, Optional 12-bit Firmware

Dimensions [W x H x L]: 59 mm x 59 mm x 42 mm

Mass: 183 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20 to 65 °C

Opto-isolated I/O Ports: 2 input, 3 output

Power Consumption [Maximum]: 12.5 W maximum PoE / 12.3 W maximum GPIO

Power Requirements: Power Over Ethernet (PoE) or 10 to 36 V via GPIO connector

Storage Humidity: 10 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: 10Gigabit Ethernet Port

Power Sourcing Equipment: IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
