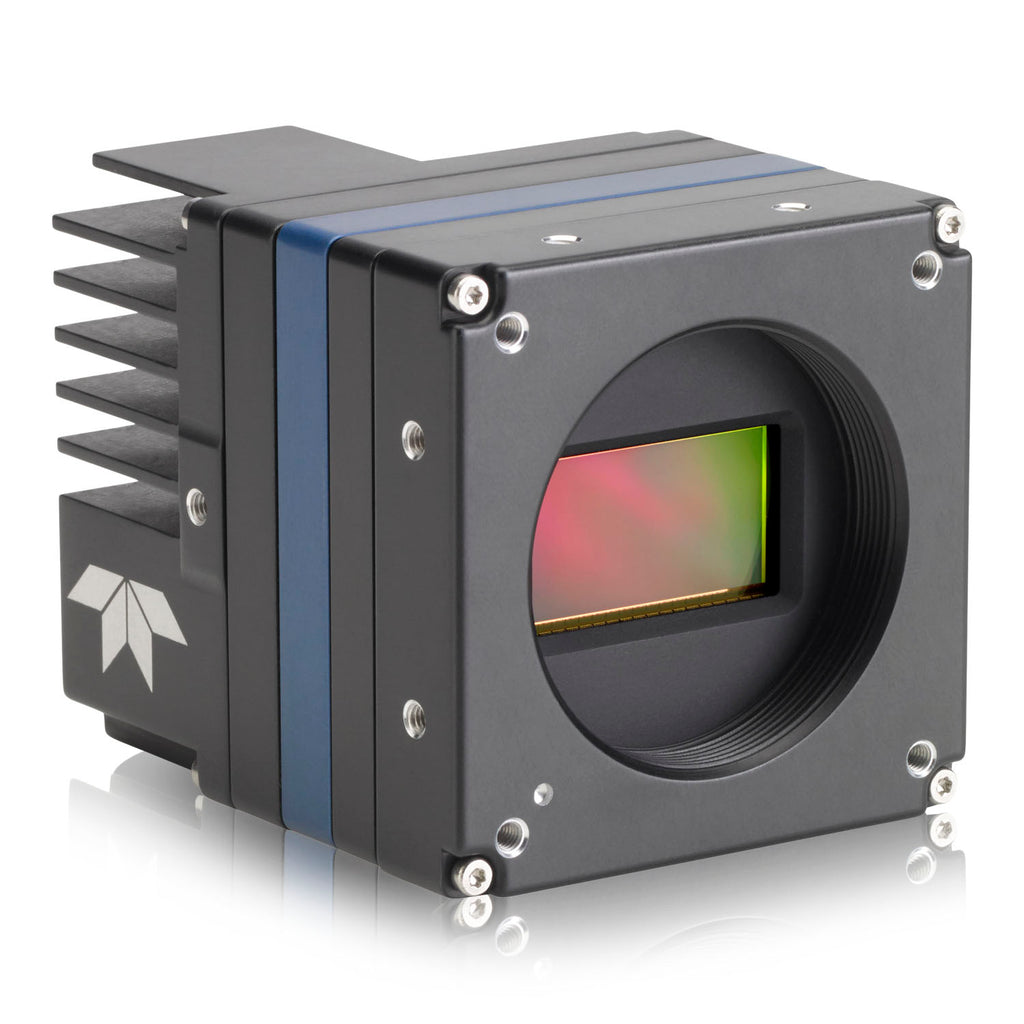

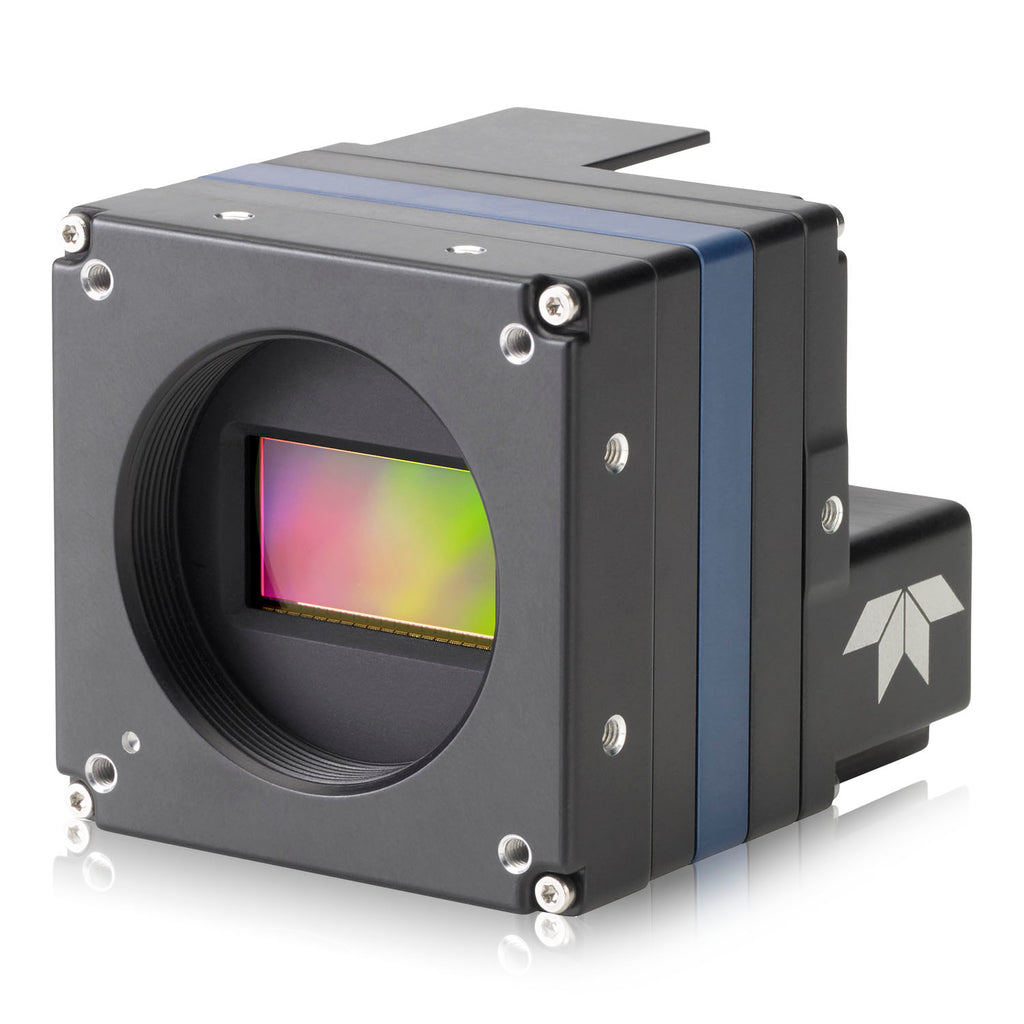

Teledyne Falcon4-CLHS M4400 Model: FA-HM10-M4485

The Falcon4-CLHS has the highest resolution and frame rate sensors available to meet the most challenging of vision applications. By taking advantage of the high-speed and high-resolution the Falcon4-CLHS models stand on top when performance is most important.

Highlighted

Part Number: FA-HM10-M4485

Resolution: 4480 x 2496

Megapixels: 11.1

Max Frame Rate Standard: 330

Sensor Model: Teledyne e2v Lince 11 MP

Pixel Size: 6

Sensor Type: CMOS

Sensor Format: APS-C

Shutter type: Global shutter

Spectrum: Mono

Optical Filter: None

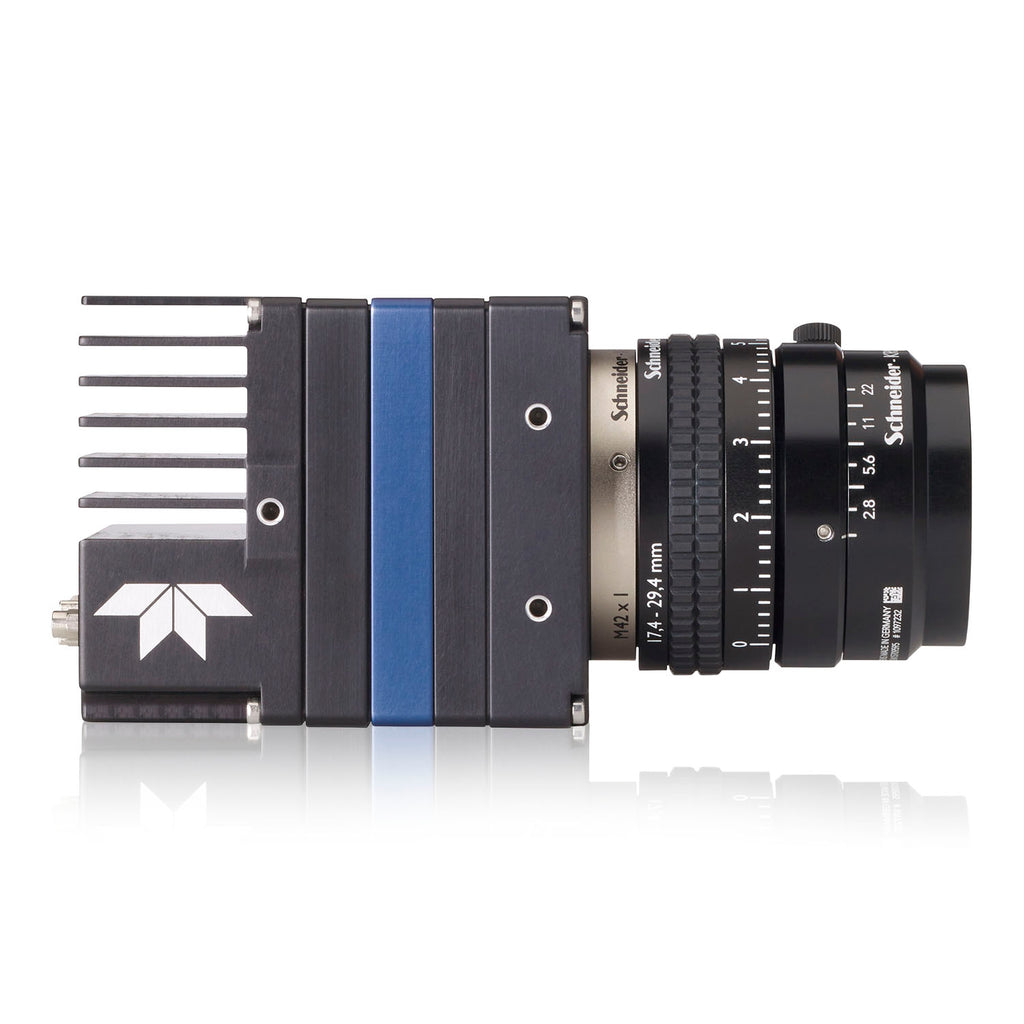

Lens Mount: M42 x 1 mm

Synchronization: Image sync: Free-running, external trigger, CLHS trigger

Data Interface: Camera Link HS

Protection: IP40

Features

Acquisition Modes: Continuous / Single Frame / Multi Frame

Exposure Control: Hardware trigger, programmable via camera API, or controlled via FrameGrabber

Exposure Range: 5 µs to 0.5 seconds

Flash Memory: 32 MB non-volatile memory

Gain Control: Manual

Image Processing: Lookup table, pixel correction and lens shading correction

Partial Image Modes: Pixel binning, ROI, Muti-ROI

User Sets: 2 user configuration sets for custom camera settings

Performance

Dynamic Range dB: 61

Gain Range: 1x to 4x

QE (Mono): 54 @550 nm

Saturation Capacity (e-): 38000

Temporal Dark Noise (Read Noise): 36

Physical

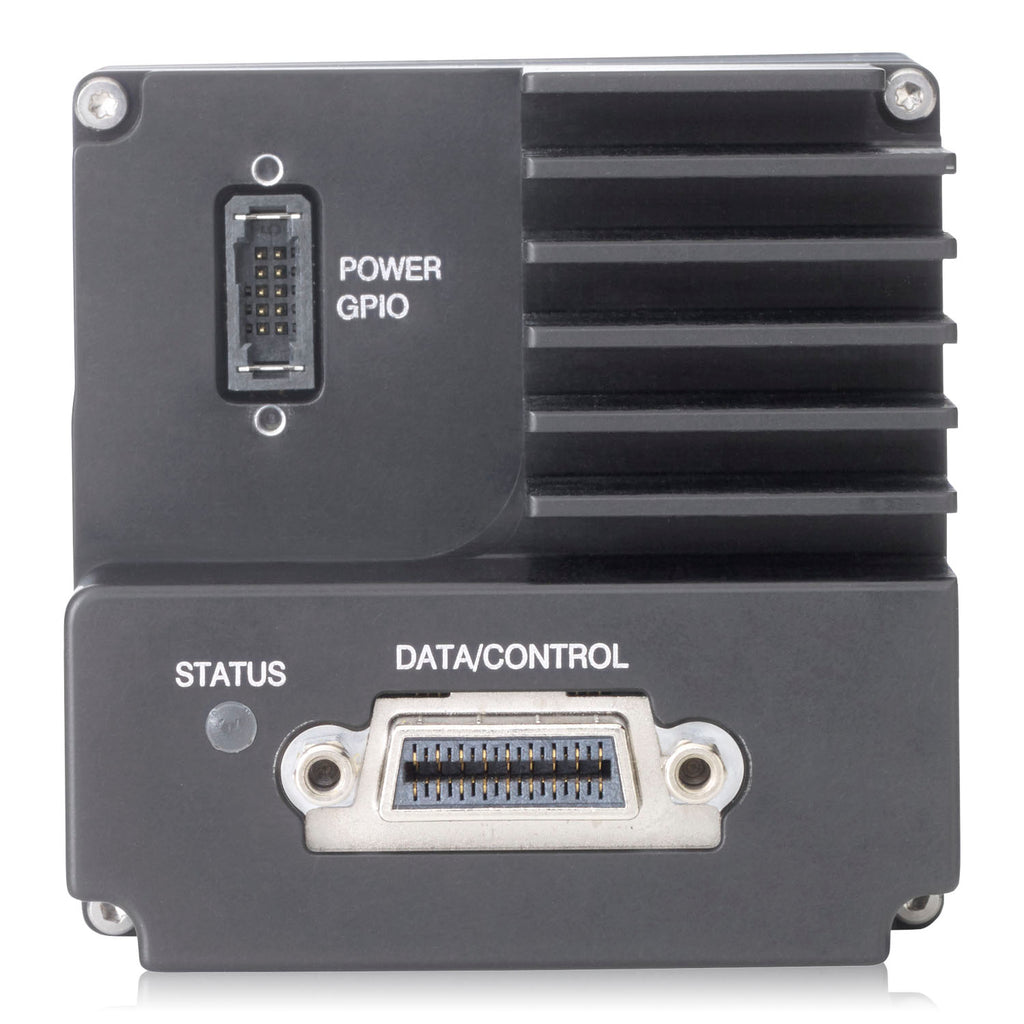

Connector: CX4 | SAMTEC TFM-105 type

Digitization Bit Depth (ADC): 8-bit, 10-bit

Dimensions [W x H x L]: 59 mm x 59 mm x 74.5 mm

Mass: 317 g

Operating Humidity: 10 to 80% (no condensation)

Operating Temperature: -20 to 65 °C

Opto-isolated I/O Ports: 2 input, 4 output

Power Consumption [Maximum]: 13 W maximum GPIO

Power Requirements: 10 to 30 V via GPIO connector

Storage Humidity: 20 to 80% (no condensation)

Storage Temperature: -40°C to 80°C

Recommended System Configuration

Port: CLHS 4 Data Lanes (10.3 Gps/lane)

Power Sourcing Equipment: External Camera Power Supply
