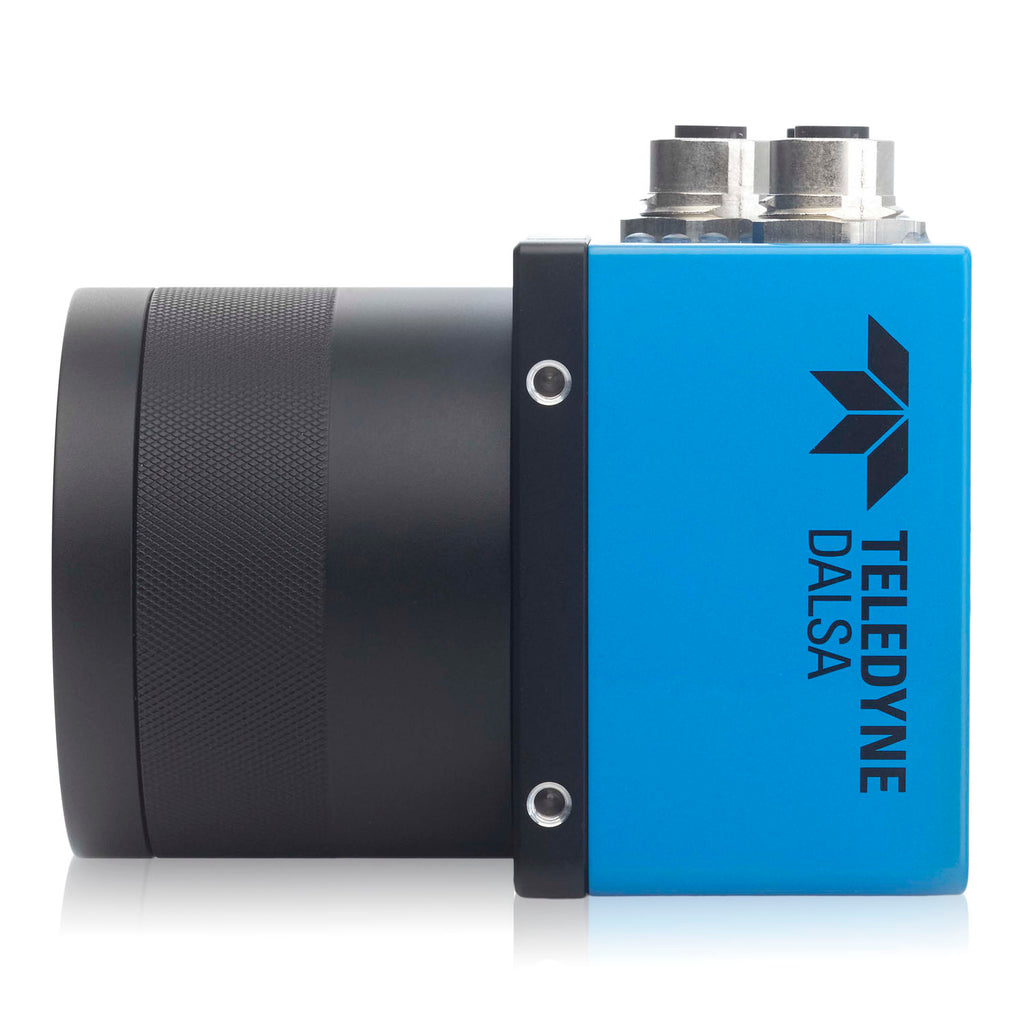

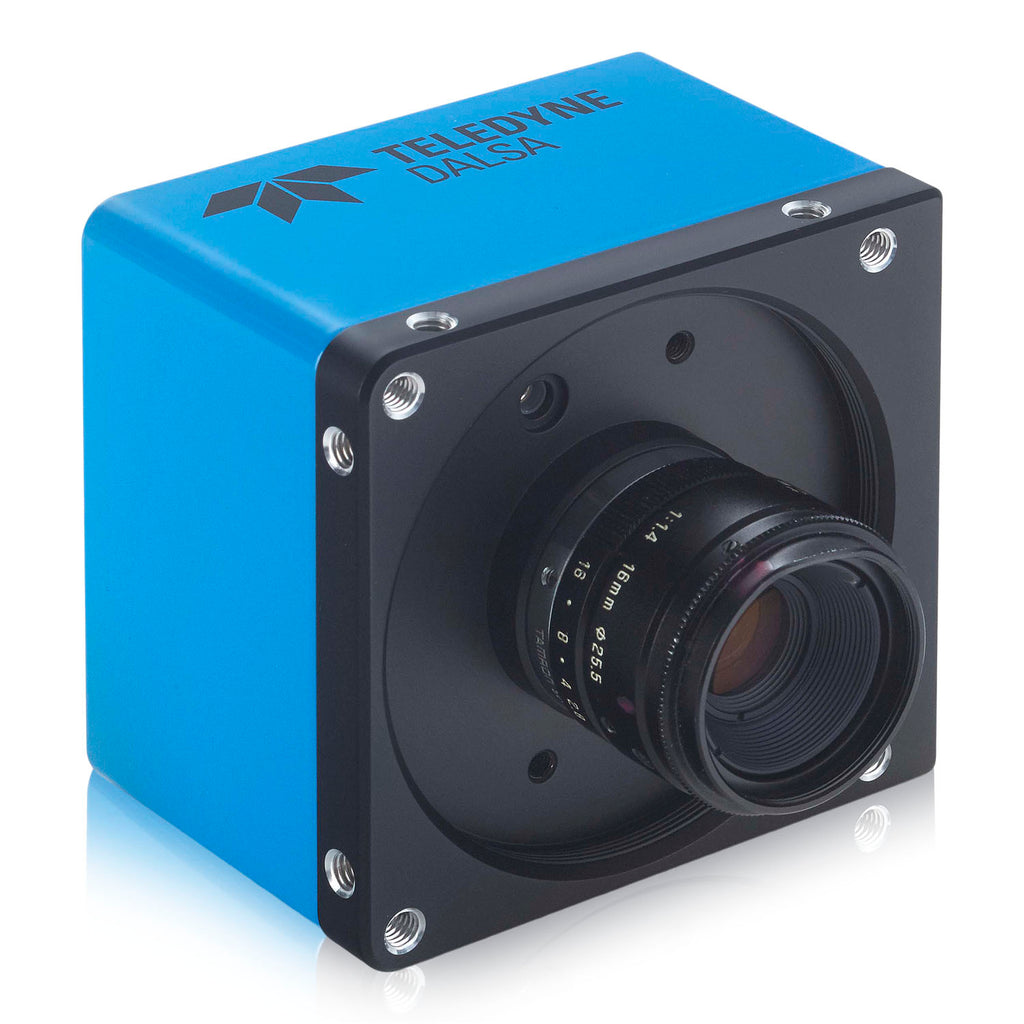

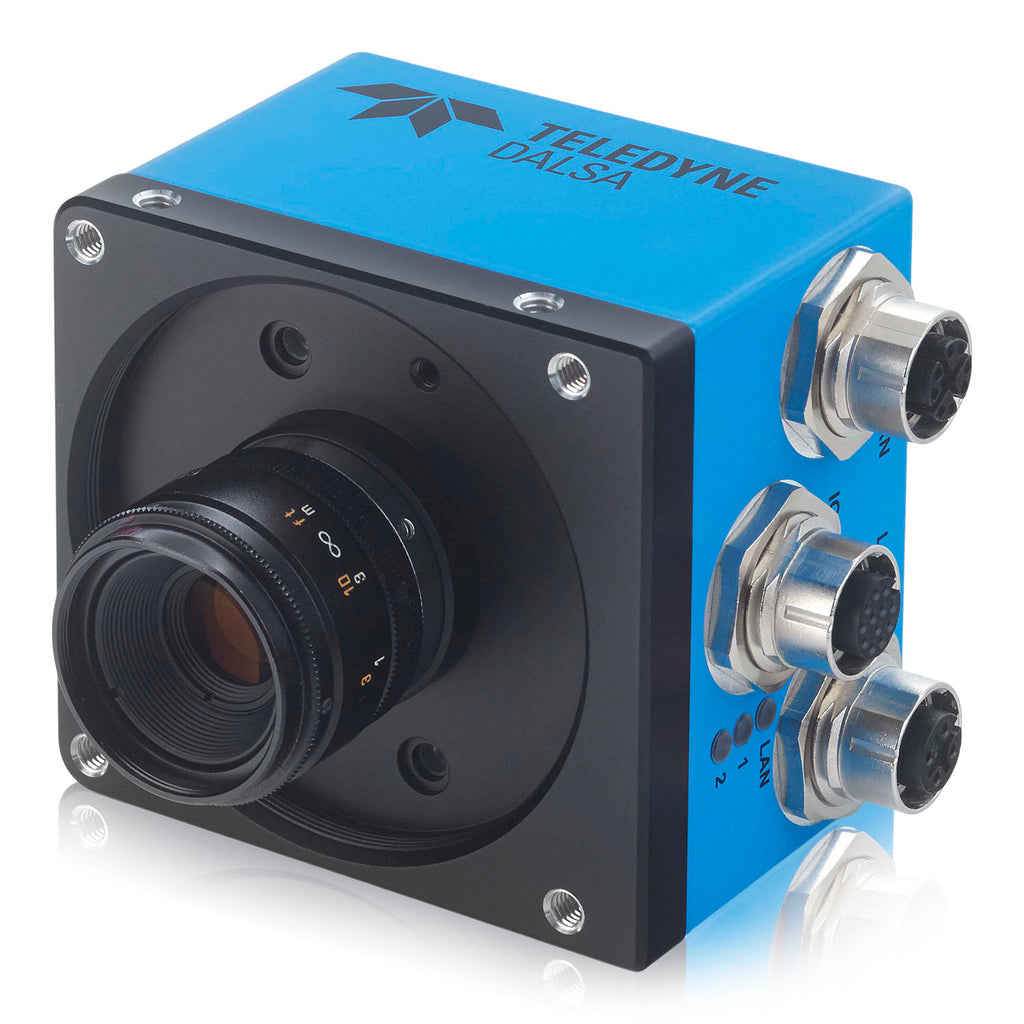

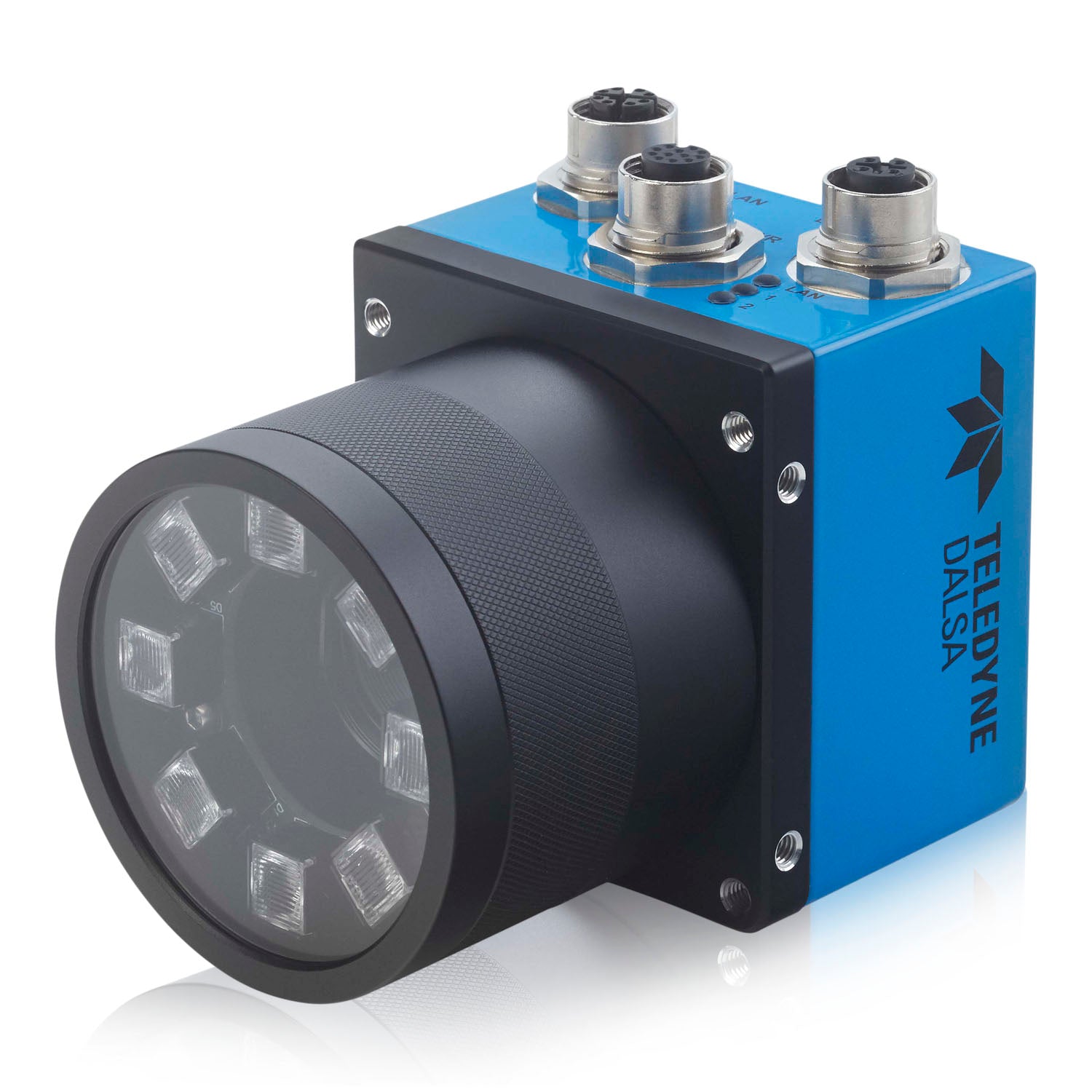

Teledyne BOA2 XA3 Model: BVS2-XA3M-INS
BOA2 is a complete vision system in one smart camera. Featuring our highest smart camera resolution yet, BOA2 combines image capture, on-board processing, and easy-to-use embedded vision software into a convenient single device with a variety of I/O and mounting options.
Highlighted
- Part Number
- BVS2-XA3M-INS
- Resolution
- 1920 x 1440
- Megapixels
- 2.7
- Max Frame Rate Standard
- 15
- Pixel Size
- 5 µm
- Sensor Type
- CMOS
- Sensor Format
- 2/3"
- Shutter type
- Global Shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- C-mount
- Data Interface
- Ethernet 1 Gbps
- Protection
- IP67
Features
- Exposure Control
- Programmable
- Exposure Range
- 50 µs to 1000 ms
- Flash Memory
- 3 GB
- Processor
- 1.5 GHz Dual Core
- Status LED
- 3x
- Triggering Modes
- Programmable, hardware trigger, or internal timer
Physical
- Connector
- M12 LAN | M12 IO/PWR | M12 Lamp
- Digitization Bit Depth (ADC)
- 8-bit
- Dimensions [W x H x L]
- 66 mm x 83 mm x 48 mm
- Mass
- 320 g
- Mounting
- M4-0.7 mm 8x
- Operating Temperature
- 0-50°C
- Opto-isolated I/O Ports
- 3 input, 3 output
- Power Consumption [Maximum]
- 7 W (24 V)
- Power Supply
- 12-30 V
- Serial Port
- RS-232
Recommended System Configuration
- OS
- Windows
- Port
- RJ-45 LAN
- Software
- iNspect (Included with Camera)
