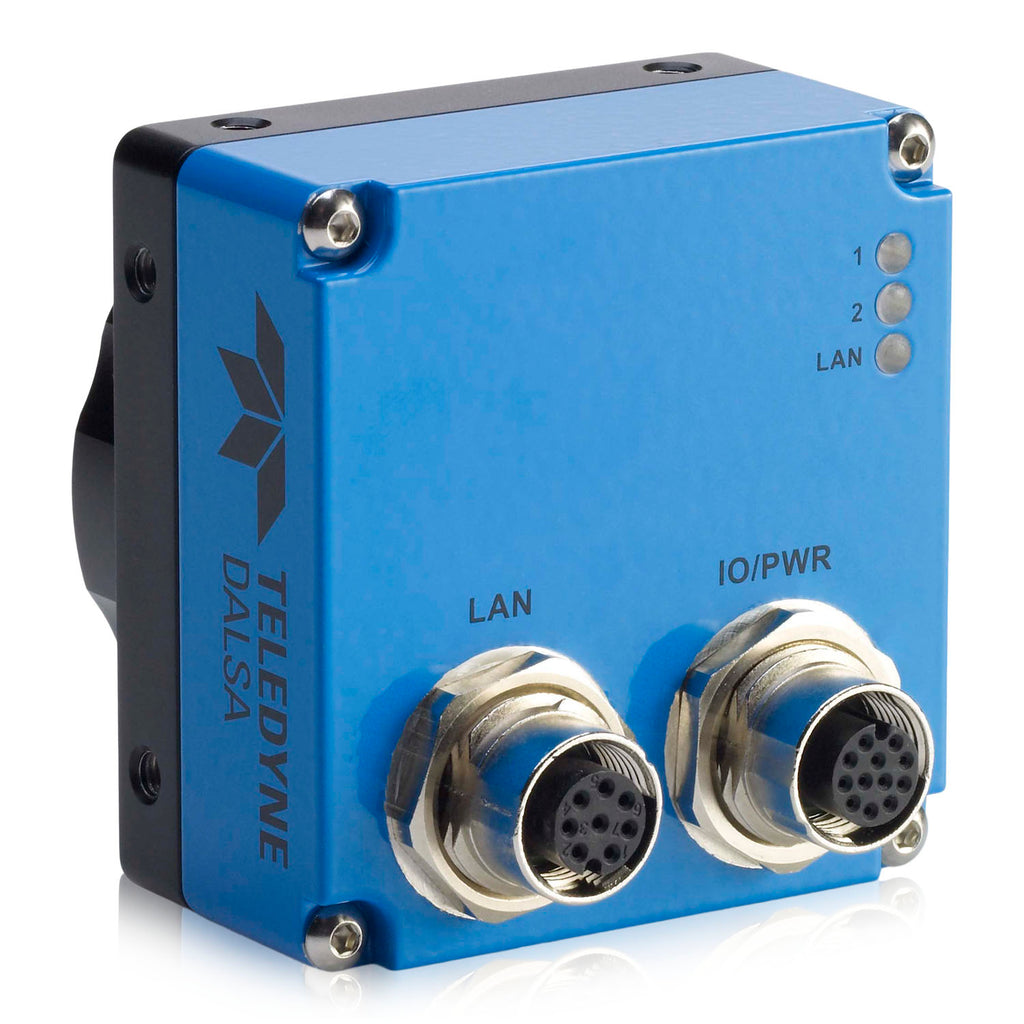

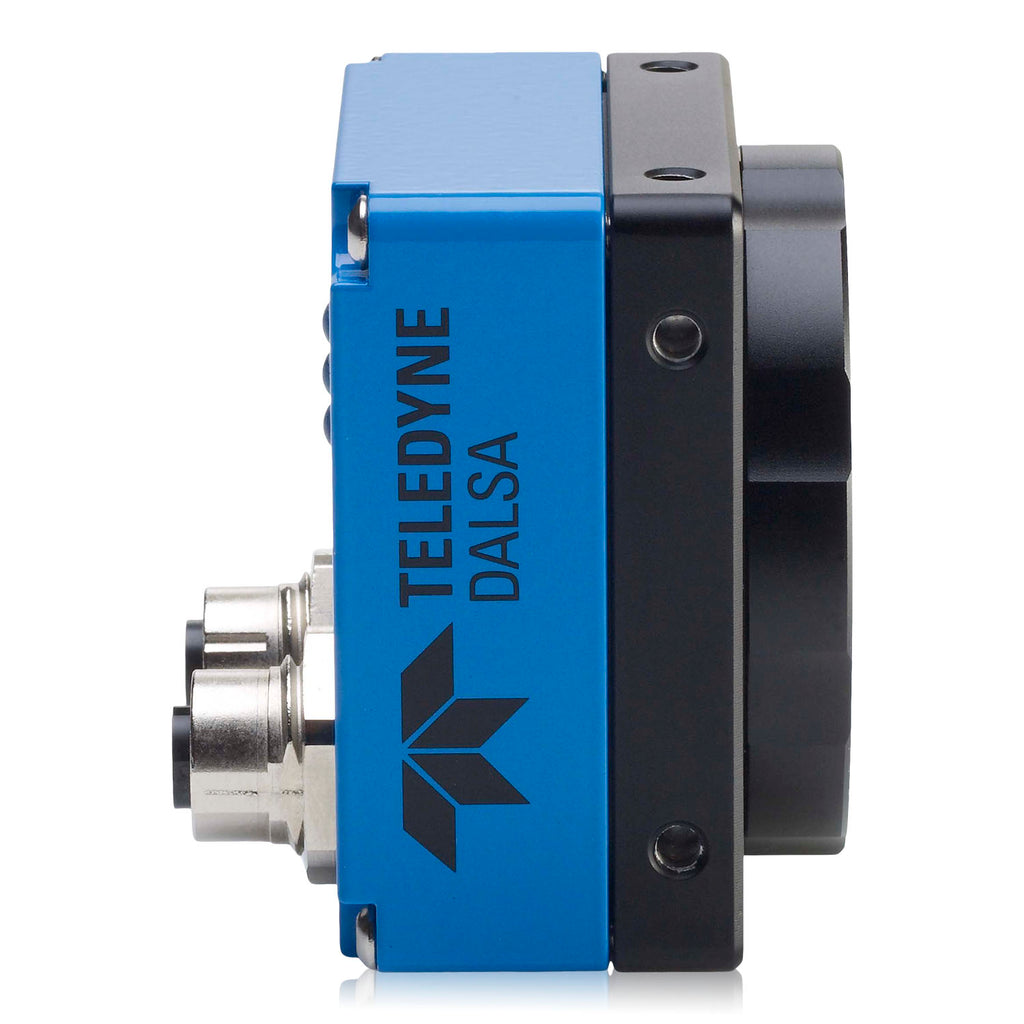

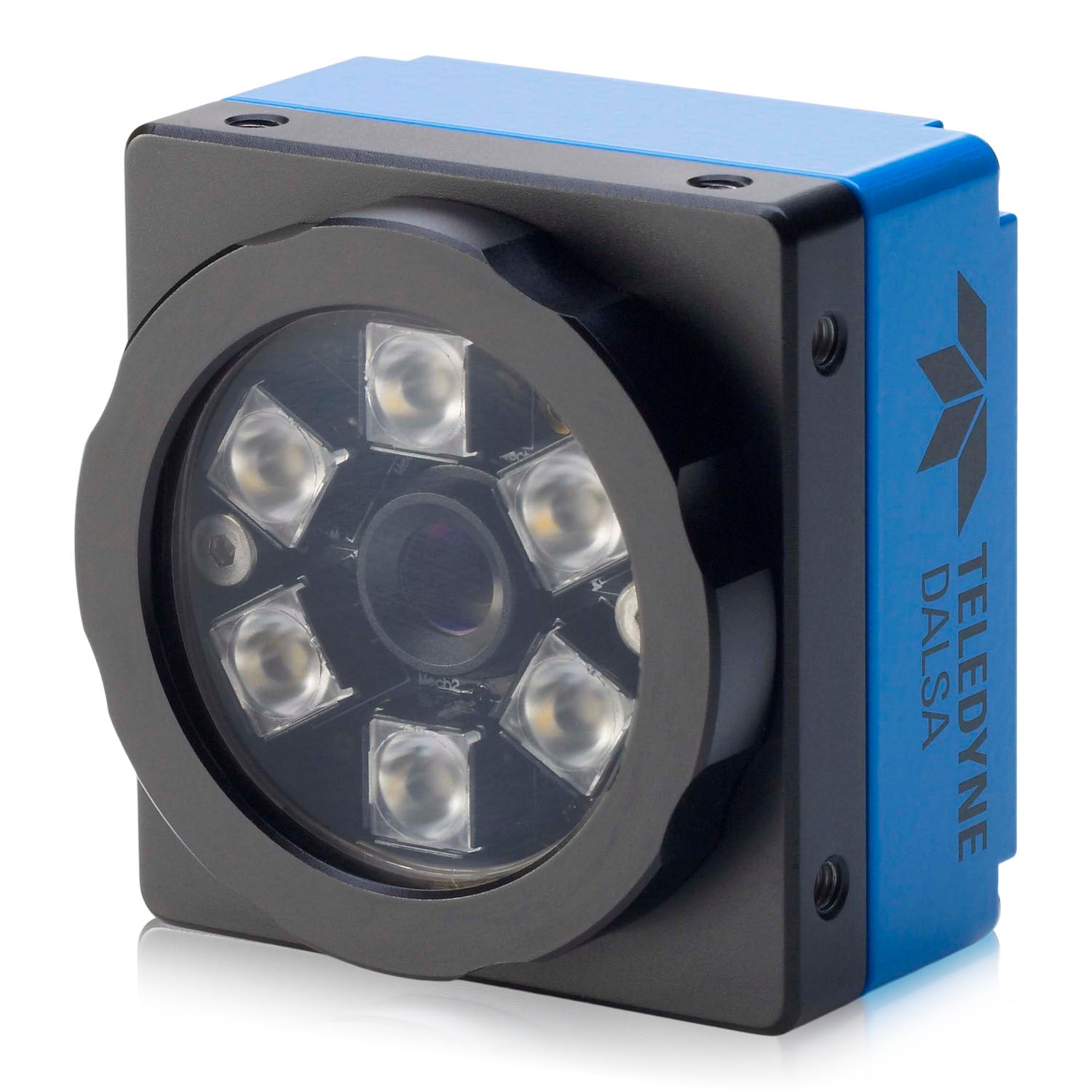

Teledyne BOA Spot BVS- SP-1280M-XLE
BOA Spot provides vision system performance at vision sensor pricing. No matter what you create on your production line, BOA Spot helps improve quality, reduce scrap, and increase throughput. It has never been so easy to expand automation with vision.
Highlighted
- Part Number
- BVS-SP-1280M-XLE
- Resolution
- 1280 x 960
- Megapixels
- 1.2
- Max Frame Rate Standard
- 30
- Pixel Size
- 3.75 µm
- Sensor Type
- CMOS
- Sensor Format
- 1/3"
- Shutter type
- Global Shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- S-mount, C-mount options
- Data Interface
- Ethernet 100 Mbps
- Protection
- IP67
Features
- Exposure Control
- Programmable
- Exposure Range
- 50 µs to 50.1 ms
- Flash Memory
- 512 MB
- Processor
- 1 GHz
- Status LED
- 3x
- Triggering Modes
- Programmable, hardware trigger, or internal timer
Physical
- Connector
- M12 LAN | M12 IO/PWR
- Digitization Bit Depth (ADC)
- 8-bit
- Dimensions [W x H x L]
- 58 mm x 61 mm x 57 mm
- Mass
- 170 g - 230 g
- Mounting
- M4-0.7 mm 8x
- Operating Temperature
- 0-50°C
- Opto-isolated I/O Ports
- 3 input, 3 output
- Power Consumption [Maximum]
- 5.6 W to 9.7 W (24 V)
- Power Supply
- 12-30 V
- Serial Port
- RS-232
Recommended System Configuration
- OS
- Windows
- Port
- RJ-45 LAN
- Software
- iNspect XLE Toolset (Included)
