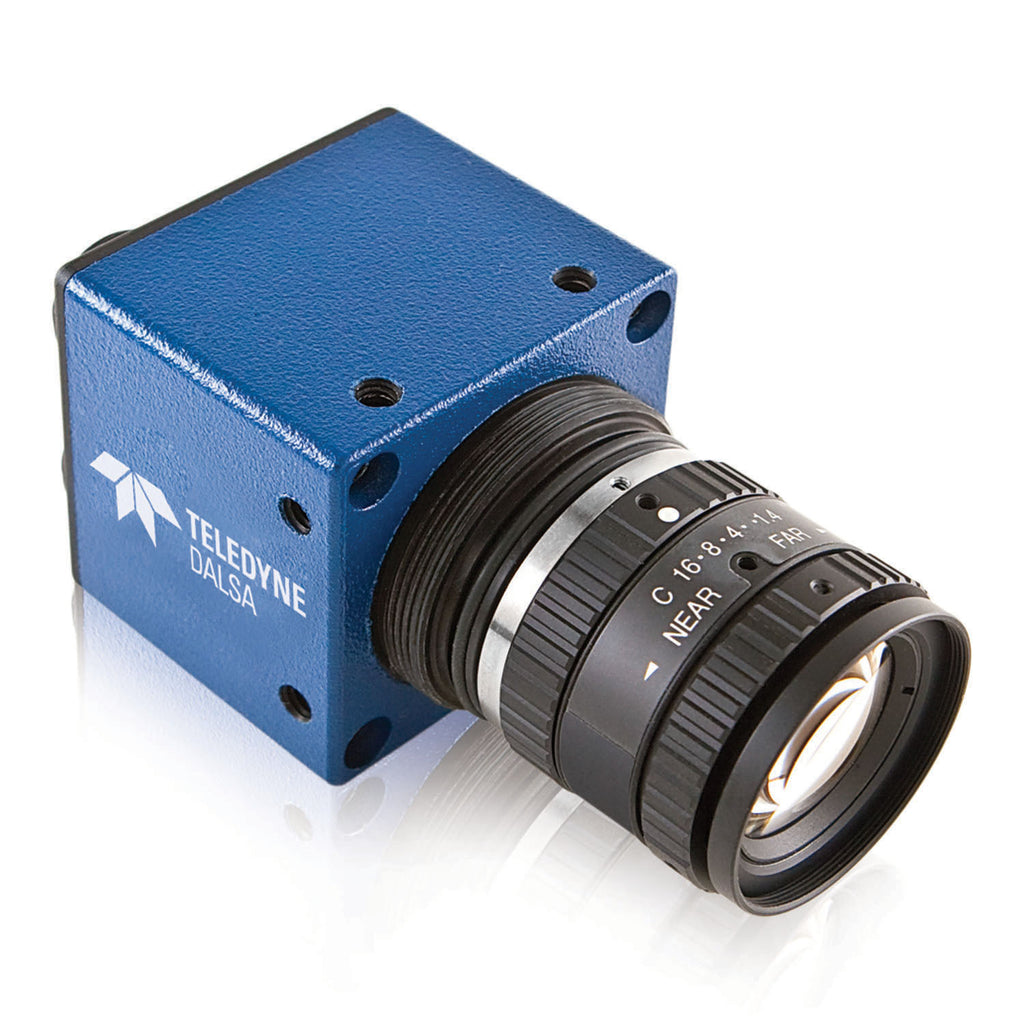

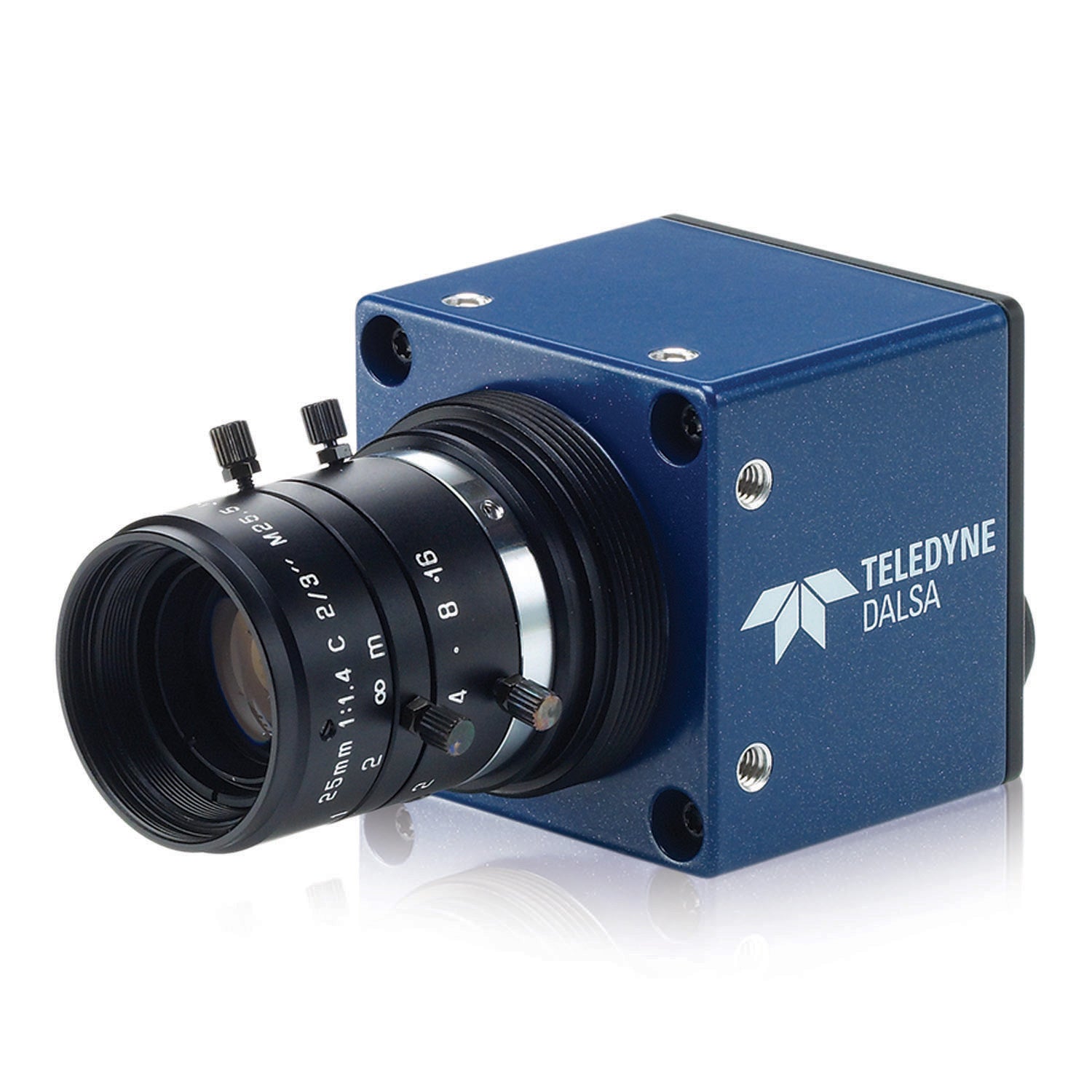

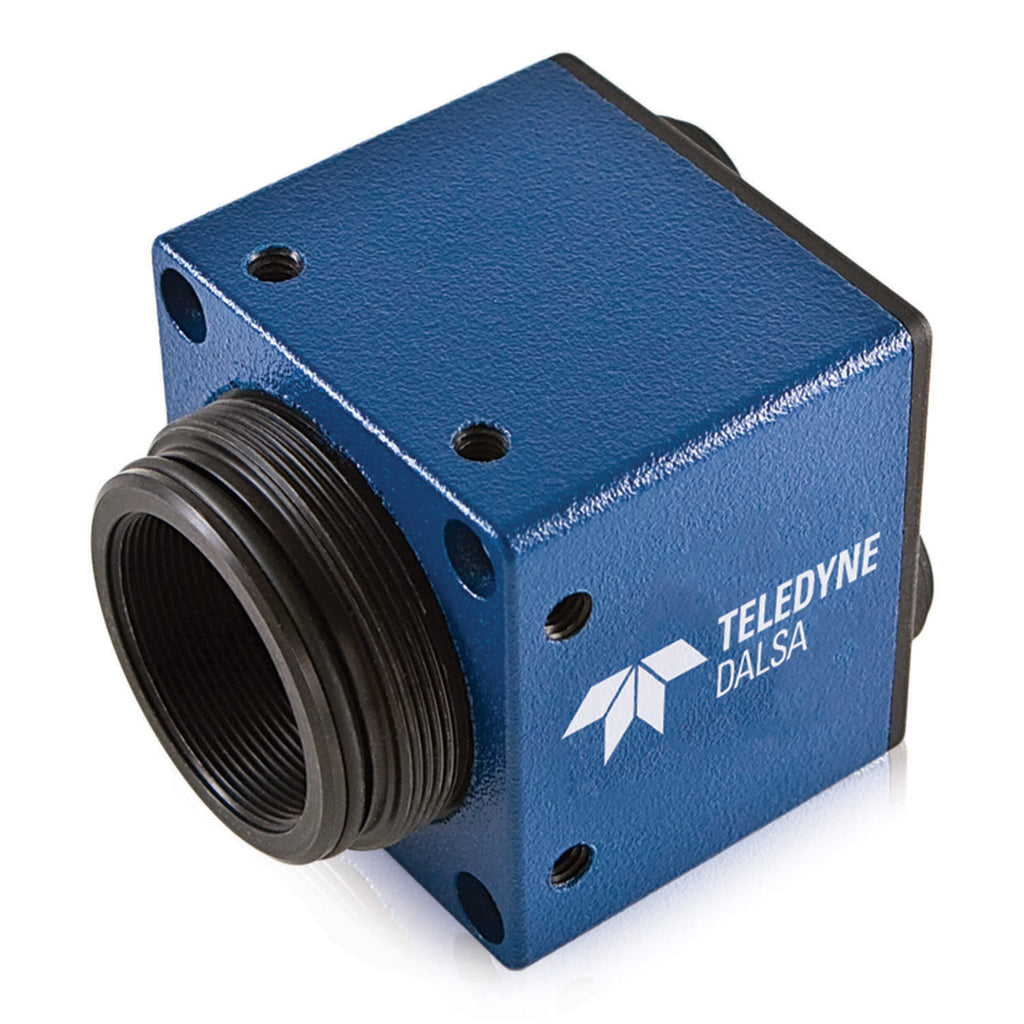

Teledyne BOA BVS-1024C-INS
BOA is a camera with optical inspection tools for controlling quality and increasing productivity. It comprises all the elements of an industrial machine vision system in a tiny smart camera style package.
Highlighted
- Part Number
- BVS-1024C-INS
- Resolution
- 1024 x 768
- Megapixels
- 0.7
- Max Frame Rate Standard
- 22
- Pixel Size
- 3.75 µm
- Sensor Type
- CCD
- Sensor Format
- 1/4"
- Shutter type
- Global Shutter
- Spectrum
- Color
- Lens Mount
- C-mount
- Data Interface
- Ethernet 100 Mbps
- Protection
- IP67
Features
- Exposure Control
- Programmable
- Exposure Range
- 20 µs to 1000 ms
- Flash Memory
- Up to 768 MB
- Processor
- 720 MHz, 1 GHz, or 1.2 GHz Dual Core
- Status LED
- 3x
- Triggering Modes
- Programmable, hardware trigger, or internal timer
Physical

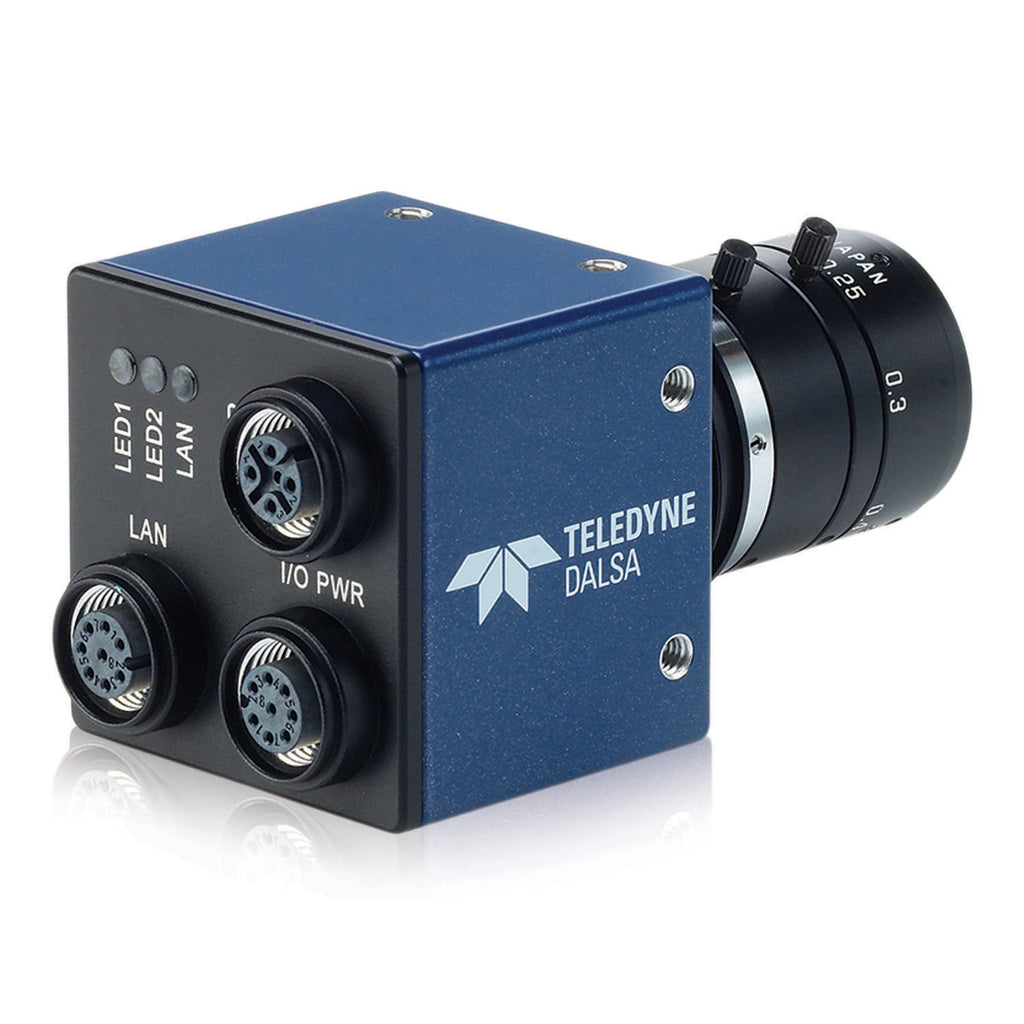

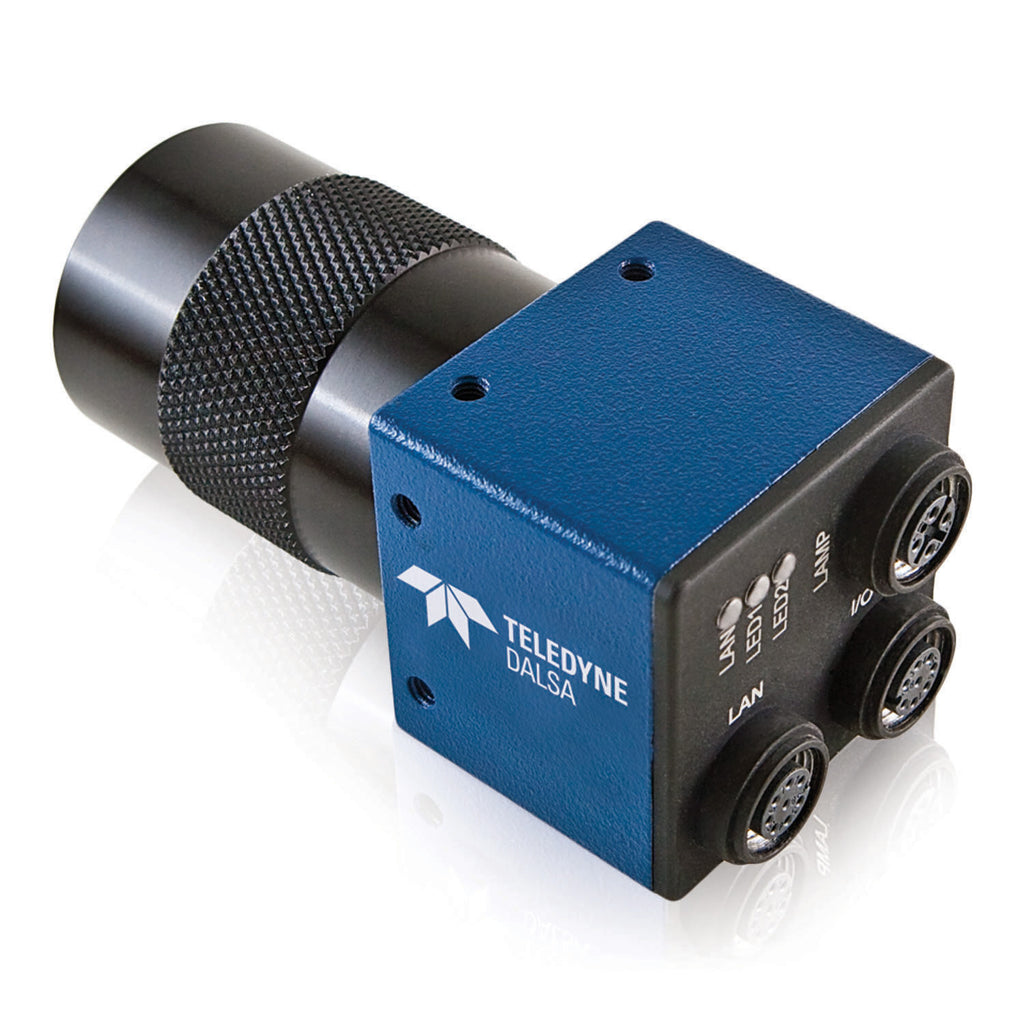

- Connector
- M12 LAN | M12 IO/PWR | M12 Lamp
- Digitization Bit Depth (ADC)
- 8-bit
- Dimensions [W x H x L]
- 44 mm x 44 mm x 44 mm
- Mass
- 140 g
- Mounting
- M4-0.7 mm 8x
- Operating Temperature
- 0-45°C
- Opto-isolated I/O Ports
- 2 input, 2 output
- Power Consumption [Maximum]
- 3.6 W (24 V)
- Power Supply
- 12-30 V
- Serial Port
- RS-232
Recommended System Configuration
- OS
- Windows
- Port
- RJ-45 LAN
- Software
- iNspect (Included with Camera)
