Highlighted

Part Number

L2-GM-08K02S-00-A

Resolution

8192 x 1 SR

Max Line Rate

25 kHz

Sensor Model

Teledyne e2v Tetra

Pixel Size

3.5 SR

Sensor Type

CMOS

Shutter type

Global shutter

Spectrum

Mono

Lens Mount

M42 x 1 mm

Data Interface

Gigabit Ethernet 1 Gbps

Features

Exposure Control

Hardware trigger, programmable via camera API

Exposure Range

5 µs to 2500 µs

Image Processing

Image Compression (TurboDrive), gamma, lookup table, pixel correction, flat line correction and line spatial correction

Partial Image Modes

Image sync: Free-running, software & hardware trigger, action command | Timestamp Sync: PTP (IEEE1588)

Performance

Dynamic Range dB

72

Gain Range

1x to 10x

Peak Wavelength

700 nm

Physical

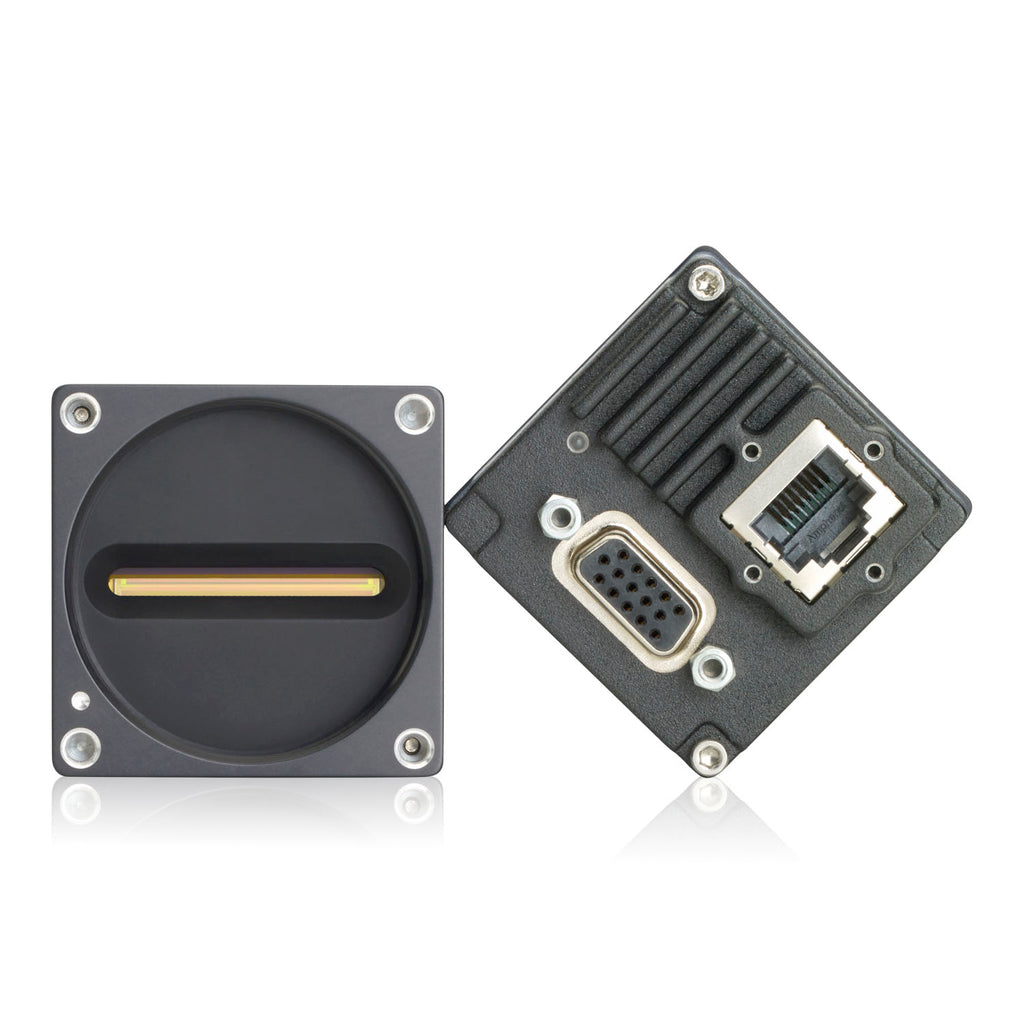

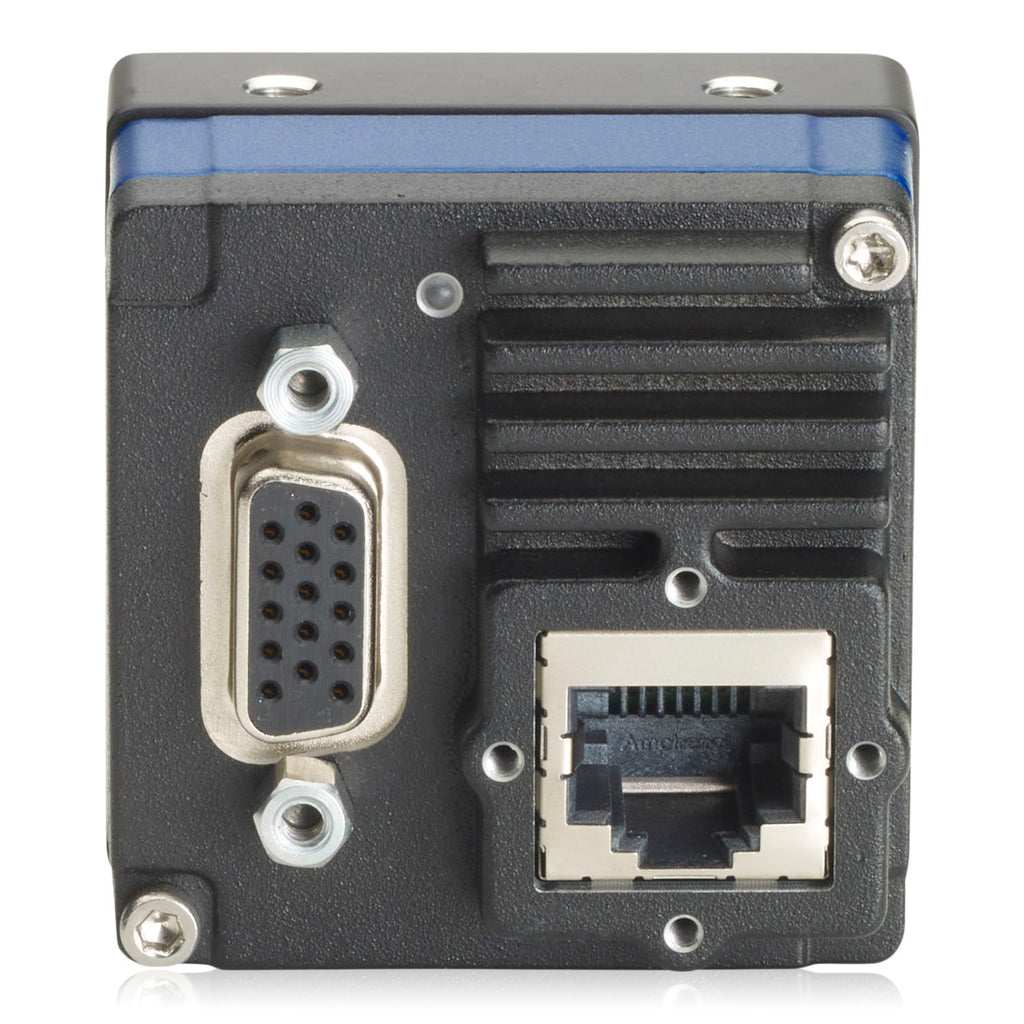

Connector

RJ-45 (vertical & horizontal locking) | HD15 type (female)

Digitization Bit Depth (ADC)

8-bit, 12-bit

Horizontal-Pixels

8192

H-Pixel Size

8192
