Part Number

L2-GC-04k01B

Resolution

4096 x 2 (Bilinear)

Max Line Rate

12.5 kHz

Sensor Model

Teledyne e2v Tetra

Pixel Size

7

Sensor Type

CMOS

Shutter type

Global shutter

Spectrum

Color

Optical Filter

None

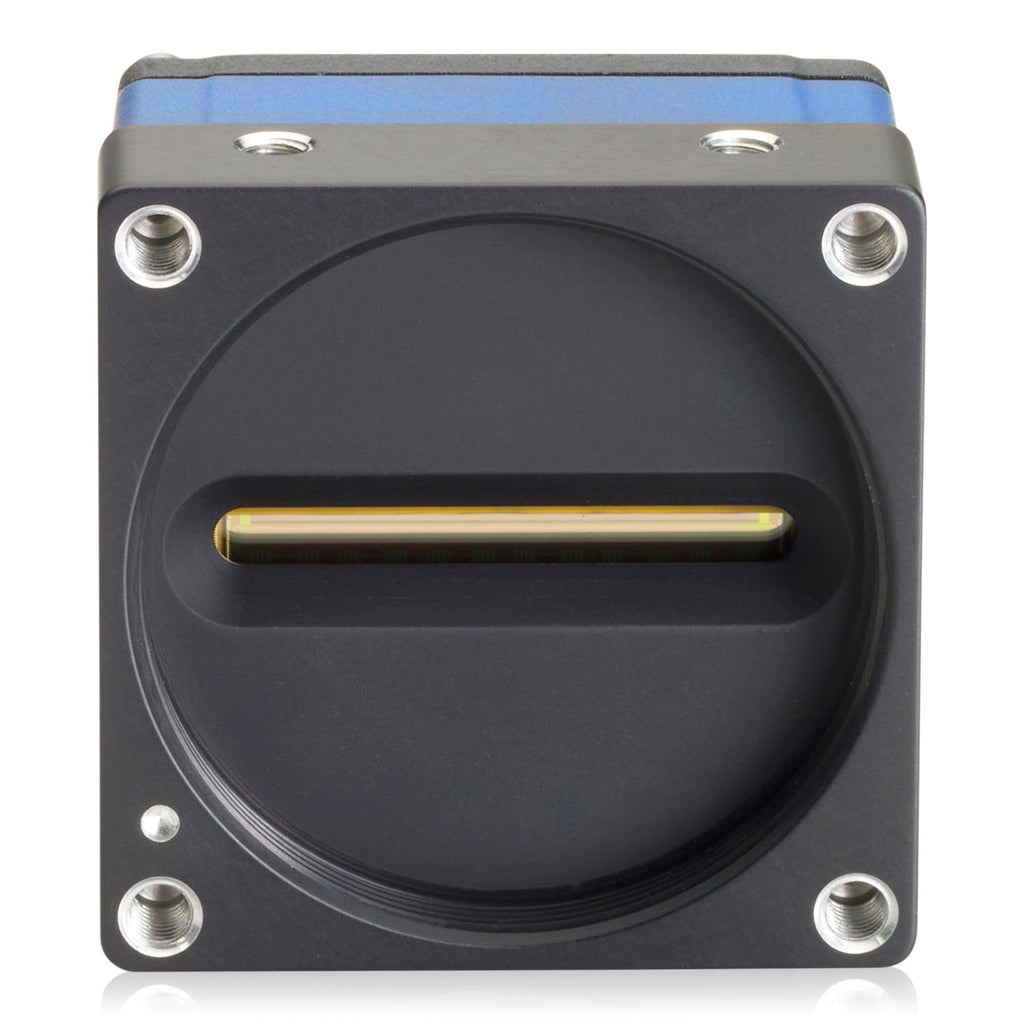

Lens Mount

M42 x 1 mm

Synchronization

Image sync: Free-running, software & hardware trigger, action command | Timestamp Sync: PTP (IEEE1588)

Data Interface

Gigabit Ethernet 1 Gbps

Protection

IP30

Features

Acquisition Modes

Continuous / Single Frame

Exposure Control

Hardware trigger, programmable via camera API

Exposure Range

5 µs to 2500 µs

Flash Memory

32 MB non-volatile memory

Gain Control

Manual

Image Buffer

90 MB

Image Processing

Image Compression (TurboDrive), gamma, lookup table, pixel correction, flat line correction and line spacial correction

Partial Image Modes

Pixel binning, ROI, Muti-ROI

User Sets

4 user configuration sets for custom camera settings

Performance

Dynamic Range dB

72

Gain Range

1x to 10x

Peak Wavelength

R 625 / G 550 / B 470 nm

Responsivity

TBD

Saturation Capacity (e-)

30000

Physical

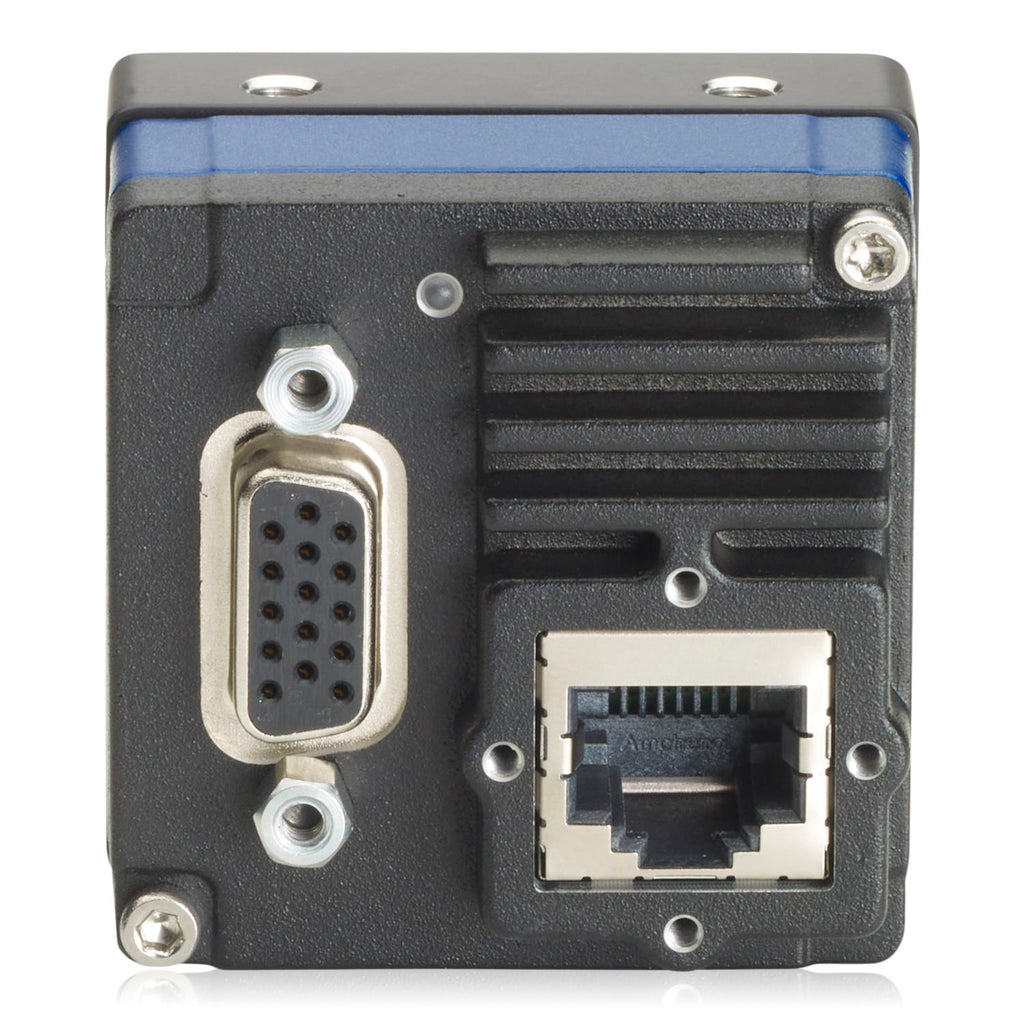

Connector

RJ-45 (vertical & horizontal locking) | HD15 type (female)

Digitization Bit Depth (ADC)

8-bit, 12-bit

Dimensions [W x H x L]

46 mm × 46 mm × 37 mm

Mass

111 g

Non-Isolated I/O Ports

2 RS-422 input, 2 RS-422 output, 1 RS-422 Bi-directional

Operating Temperature

-10°C to 65°C (measured at the front face of the camera)

Power Consumption [Maximum]

5 W

Power Requirements

Power Over Ethernet (PoE) or 12 to 24 V via GPIO connector

Storage Humidity

15 to 85% (no condensation)

Storage Temperature

-20°C to 80°C

Recommended System Configuration

Port

Gigabit Ethernet Port

Power Sourcing Equipment

IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (GigE)
